BNC Female Bulkhead Crimp RF Coaxial Connector for Flex-3 Cable

Product Description

TYPE BNC is one kind of RF coaxial connectors using a bayonet type coupling mechanism. Characteristic impedance has two types:50 ohm and 75 ohm, They can be quick connect/disconnect, reliable lock etc. They are widely used in connection with RF coaxial cables in computer field, network of wireless, medical equipment and electronic instrument.
BNC Female Bulkhead Crimp RF Coaxial Connector for Flex-3 Cable

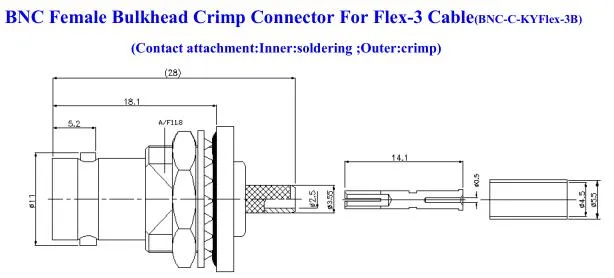

BNC Female Bulkhead Crimp Connector For Flex-3 Cable
Model No.	BNC-C-KYFlex-3B
Interface	IEC 60169-8
Electrical
Characteristic Impedance	75ohm
Frequency Range	DC-2GHz
VSWR	≤1.30@DC-3GHz
Working Vlotage	500V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥1500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.5mΩ	Outer Contact ≤1mΩ
Mating	-
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	-
Inner Conductor	Phosphor bronze	Au
Fastening nut	Brass	Ni
Washer	Annealed Copper	Ni
Crimp ferrule	Annealed copper	Ni
Environmental
Temperature Range	-40 ºC-85 ºC
Weatherproof Rate	IP67
RoHs Compliant	Yes

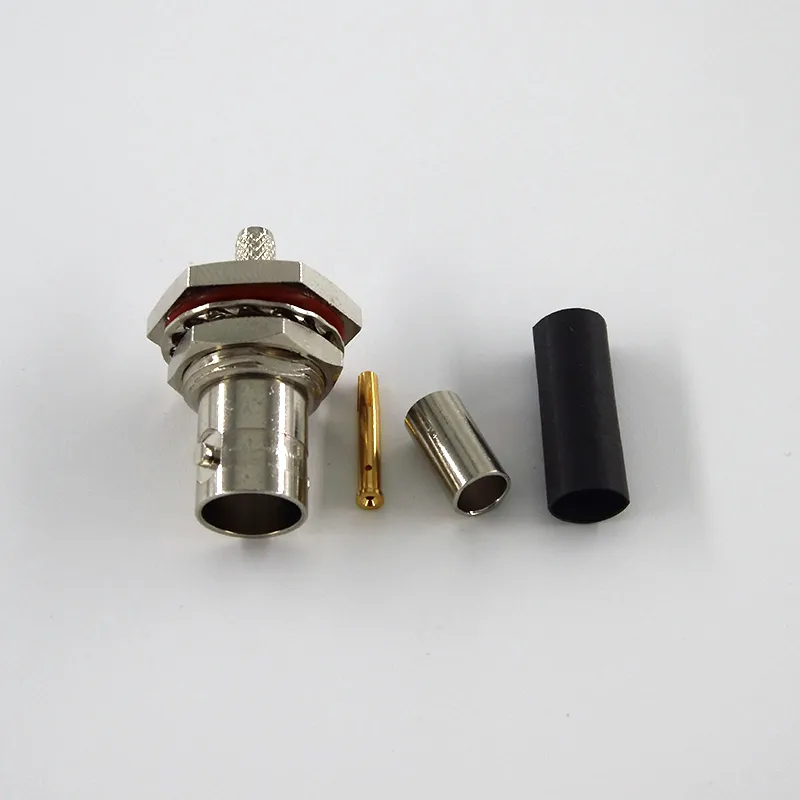

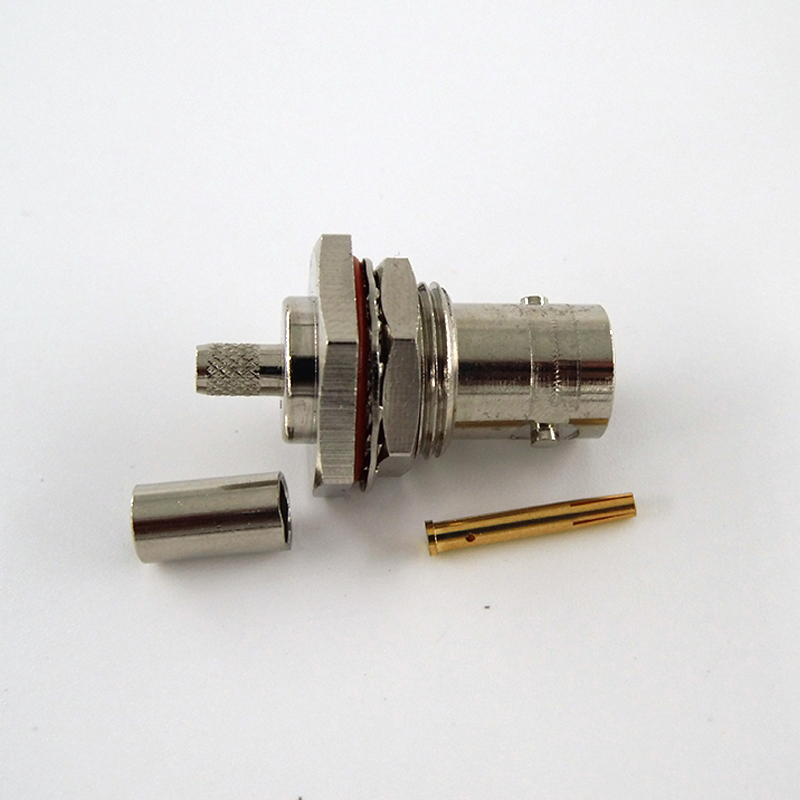

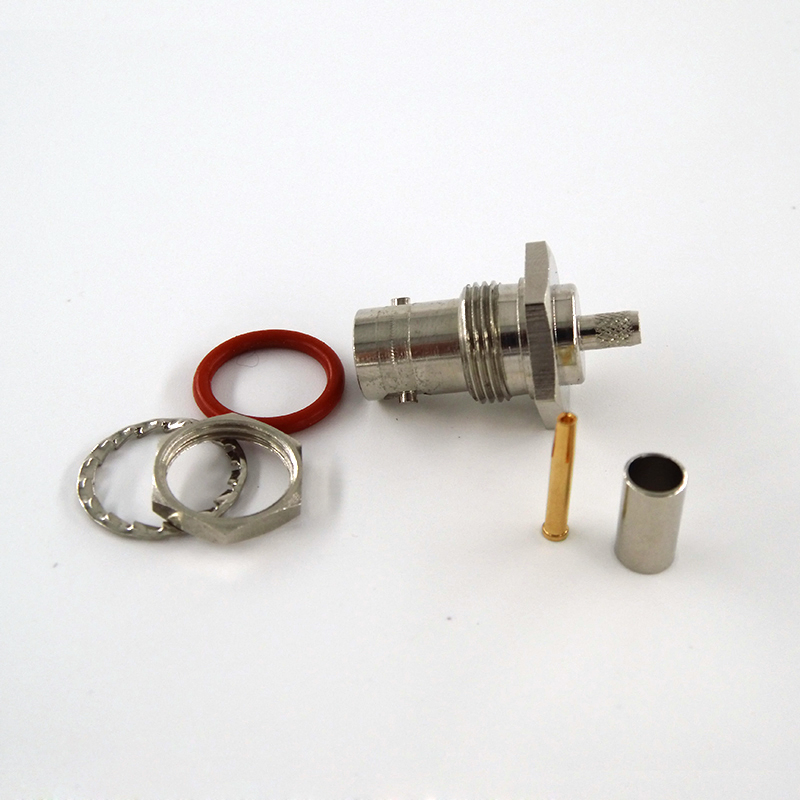

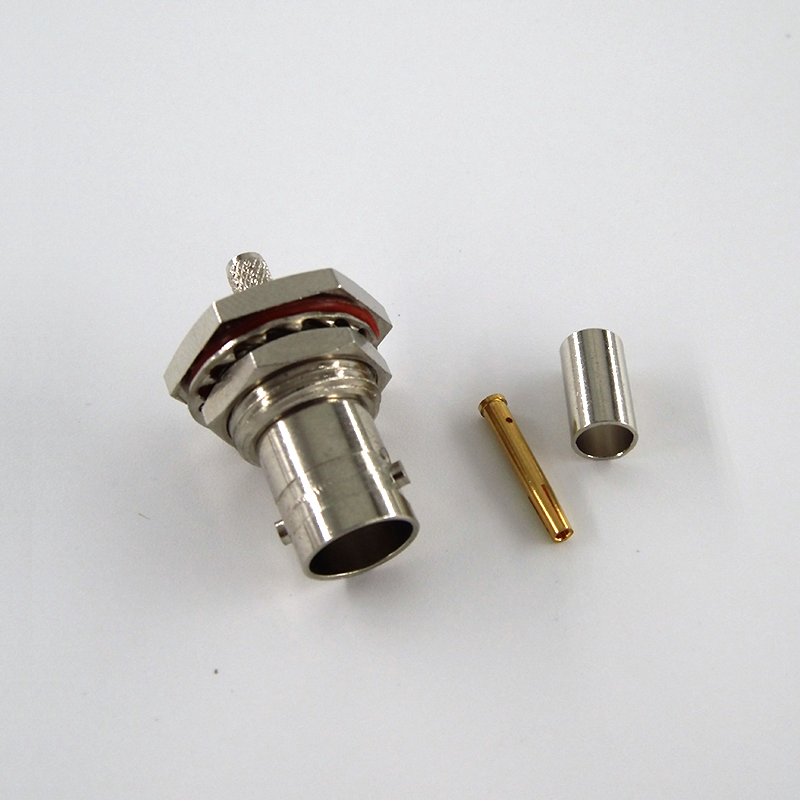

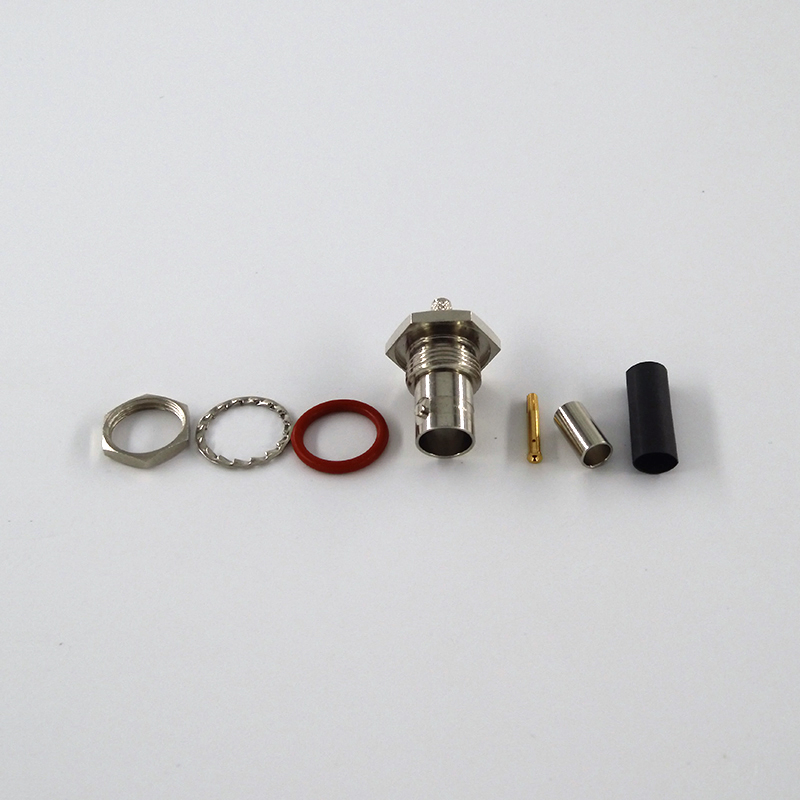

Picture show:
BNC Female Bulkhead Crimp RF Coaxial Connector for Flex-3 Cable

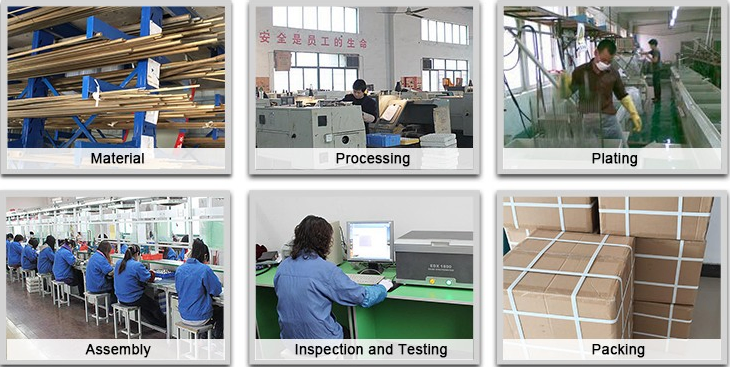

Producetion Process
BNC Female Bulkhead Crimp RF Coaxial Connector for Flex-3 Cable

Our Service

1.Reply your enquiry within 24 hours.

2.Payment model: T/T, L/C,Paypal and Western Union

3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT UPS...)

4.Lead(Delivery) time: Normally 14 days after getting order

5.Port of loading: Shanghai, Ningbo and Shenzhen.

6.Guarantee Period : Within 12 months after shipment.

7.Operating guide(Instruction)upon request.

8.Customized drawing ,sample and package can be done.

FAQ

Q:What about the quality of your products?

A: Our production process is in conformity with ISO 9001:2008. All products we supplied are
strictly tested by our QC department before shipment.

Q:Can you offer samples to test before placing one formal order?

A:Samples for test purpose can be presented free provided that you bear the shipping cost.

Q:How long is usually your delivery time?

A: Our delivery time is usually within 14 days after we receive your order .

Q:What's your Shipping Methods?

A: By Sea ;By air (Shanghai port ) ;or by UPS ,DHL,FeDex,TNT etc.

Q: Can you send a sample for us to develop?

A: Yes, we can. The samples can be delivered within 7 business days.

Q: Can we have our logo or company name to be printed on your products or the package?

A: Yes, you can. Logo and company name can be printed on our products . You can send us the
artwork by email in JPEG or TIFF format.

Q: Is the MOQ fixed?

A: The MOQ is flexible and we accept small order in the first time as trial order.

Company Information

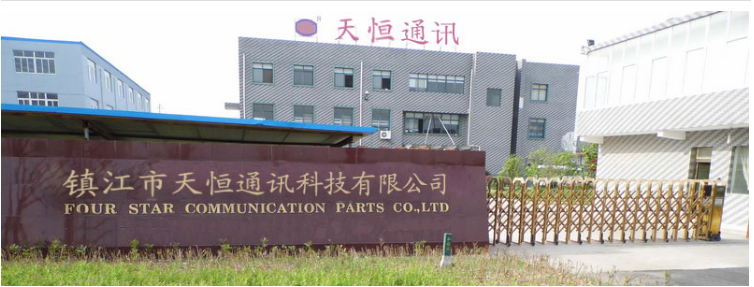

Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
