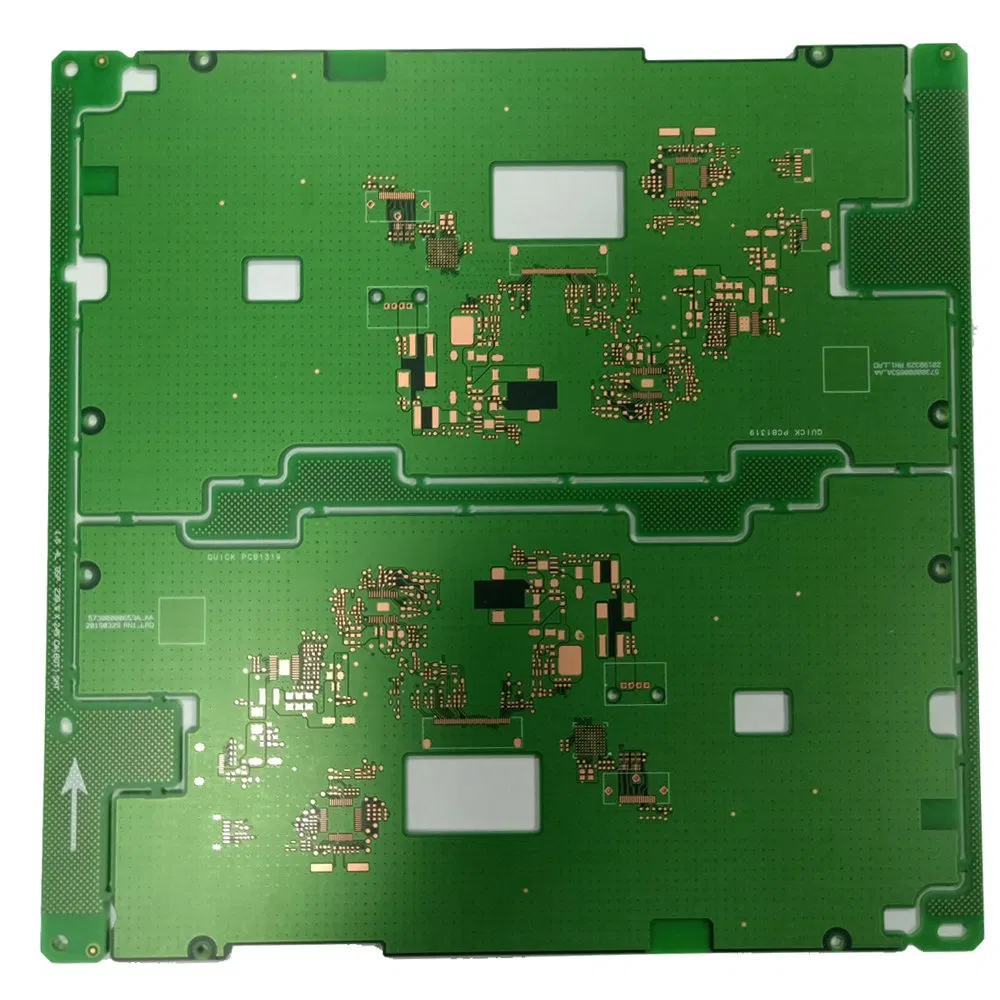

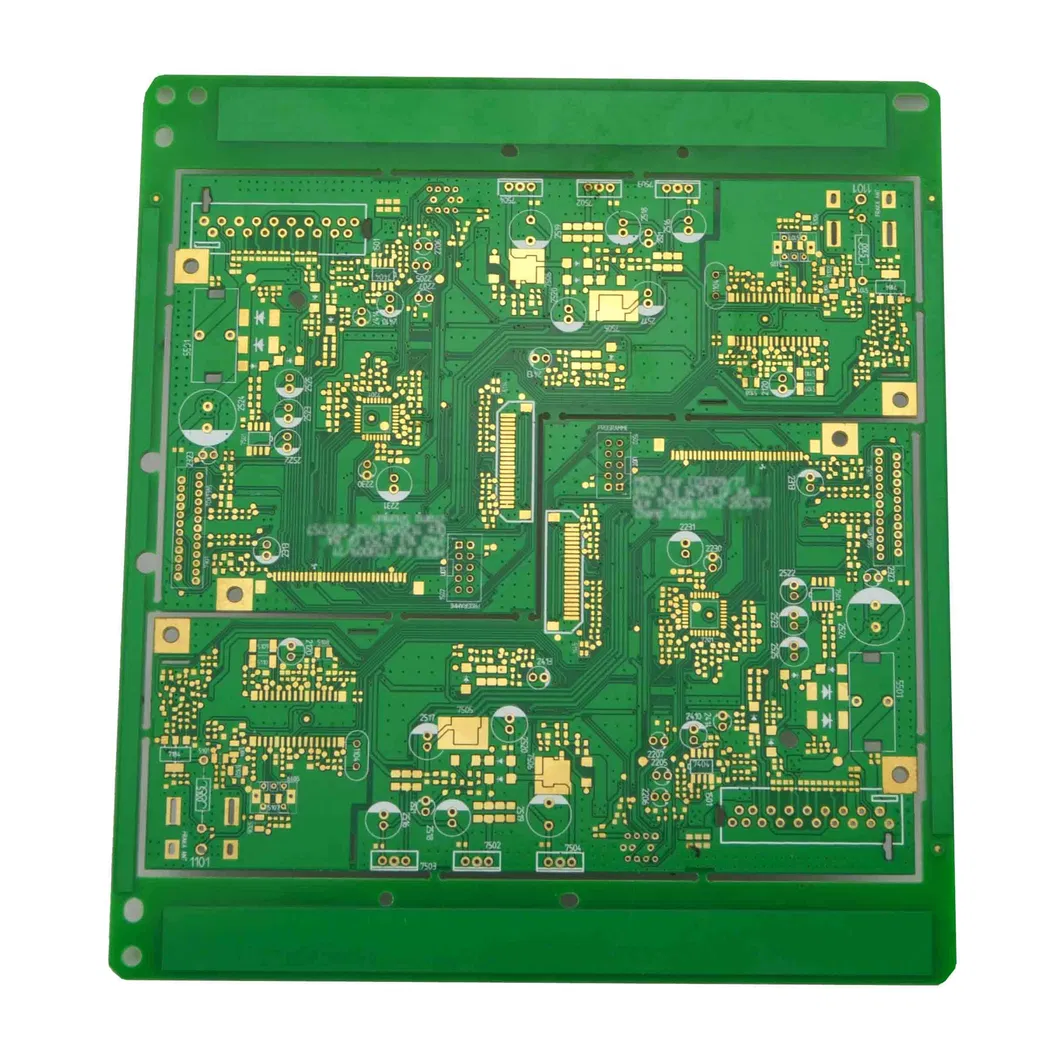

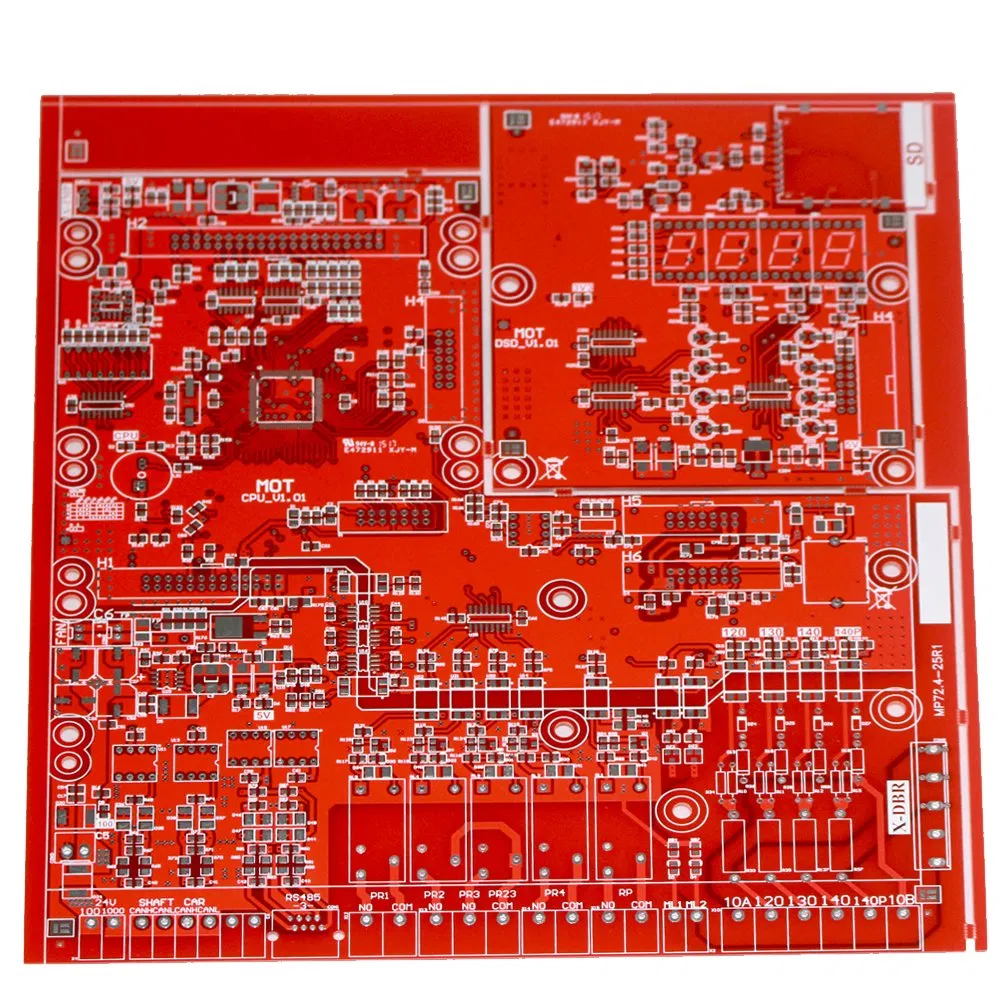

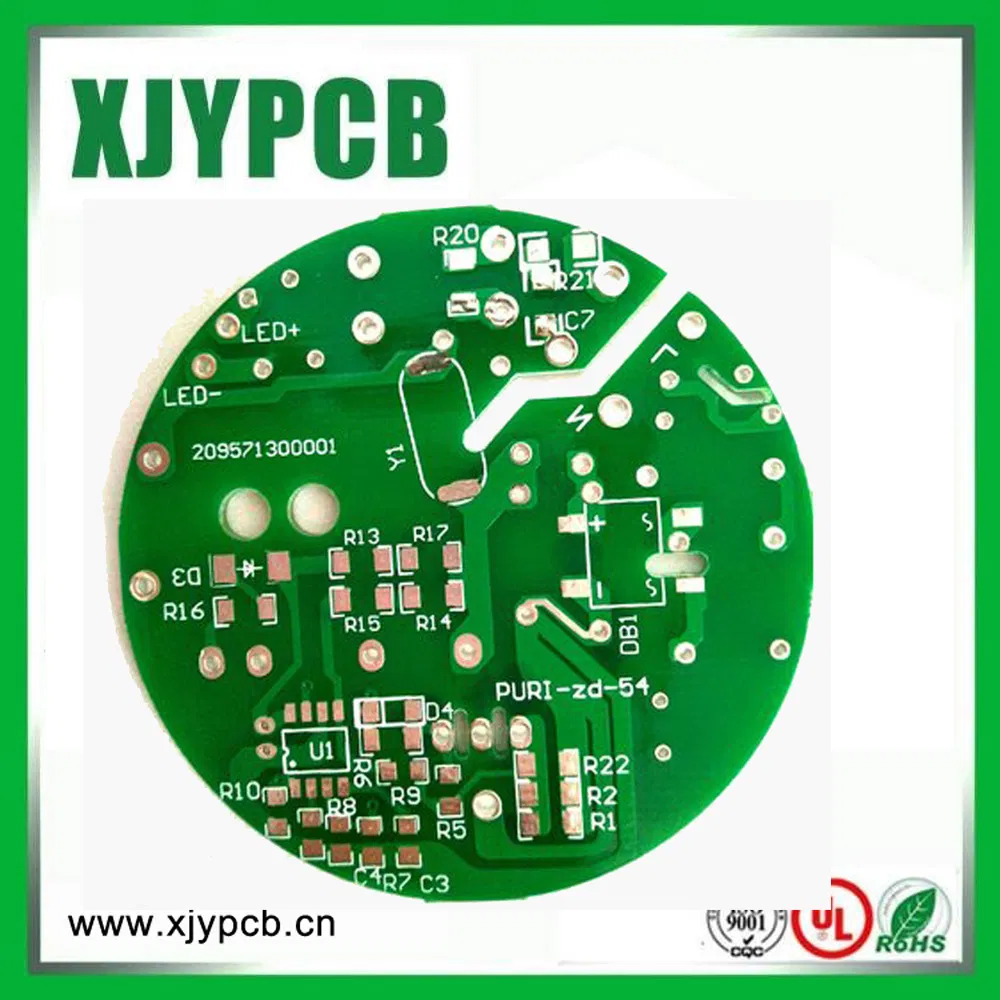

RoHS Compliant PCB Board/PCB Assembly
WELCOME TO XJYPCB------------------Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in ......
Send Inquiry
Product Description
WELCOME TO XJYPCB------------------
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.
+++++++++
Quick Details
Certification: UL, RoHS, ISO9001: 2000
Board Thickness: 0.2MM-2.4MM
Min. Hole Size: 0.2MM
Min. Line Width: 0.15MM
Min. Line Spacing: 0.2MM
Surface Finishing: LF-HAL
Solder Mask Type: Blue
Silkscreen: White
UL, IOS9001, RoHS
Quick lead time 24hours for 2-4layer PCB
++++++

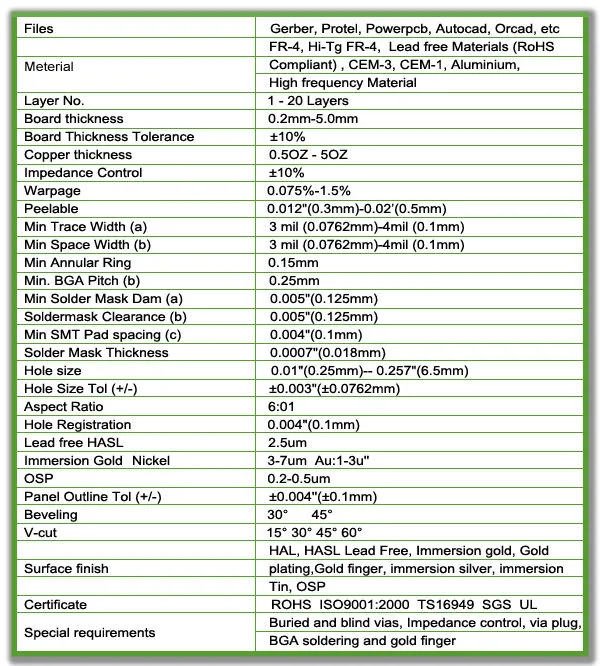

Technology capability
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for PCB assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
* PCB Assembly With UL, CE, FCC, RoHS Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Delivery Time for PCB board
1) PCB production time: Sample: 3-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days
Quotation Requirement and Time:
1) Following specifications are needed for quotation:
A) Base material:
B) Board thickness:
C) Copper thickness:
D) Surface treatment:
E) color of solder mask and silkscreen:
F) Quantity
2) Qutoation within 2 hour after we get the gerber file or PCB file with complete specifications
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.
IF YOU HAVE ANY NEED,PLEASE FEEL FREE TO CONTACT ME!
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.
+++++++++
Quick Details
Place of Origin: | Guangdong China (Mainland) | Brand Name: | XJY | Model Number: | xjy-pcb 206 |
Number of Layers: | Multi-layer | Base Material: | FR-4 | Copper Thickness: | 35um |
Board Thickness: | 1.6mm | Min. Hole Size: | 0.25mm | Min. Line Width: | 0.2mm |
Min. Line Spacing: | 0.2mm | Surface Finishing: | Immersion gold plating | Soldermask: | Green Black Red or custom color |
Certification: UL, RoHS, ISO9001: 2000
Board Thickness: 0.2MM-2.4MM
Min. Hole Size: 0.2MM
Min. Line Width: 0.15MM
Min. Line Spacing: 0.2MM
Surface Finishing: LF-HAL
Solder Mask Type: Blue
Silkscreen: White
UL, IOS9001, RoHS
Quick lead time 24hours for 2-4layer PCB
++++++
Technology capability
Items | Single/Double-sided Board/Multilayer Board/FPC(1-24Layer) | ||
| Base Materials | FR-4(High TG 150°-170°),FR1,Aluminum,CEM-3,BT,94vo | ||
| Finish copper thickness | Outer 6 OZ,Inner 4 OZ | ||
| Surface finish | ENIG, ImAg, ImSn, OSP, HASL,Plating gold | ||
| Finished Board Size | Max Double-sided Board | 640mm χ 1100mm | |
| Max Multilayer Board | 640mm χ 1100mm | ||
| Finished Board Hole Size (PTH Hole) | Min Finished Board Hole Size | 0.15mm | |
| Conductor Width and Spacing | Min Conductor Width | 0.01mm | |
| Min Conductor Spacing | 0.01mm | ||
| Thickness of Plating and Coating Layer | PTH Wall Copper Thickness | >0.02mm | |
| Tin Solder Thickness ( Hot Air Leveling ) | >0.02mm | ||
| Nickl/Gold Thickness | For customer special need | ||
| Nickl Plating Layer | >2um | ||
| Gold Plating Layer | >0.3um | ||
| Bare Board Test | Single Side Test | Max Test Point | 20480 |
| Max Board Test Size | 400mm χ 300mm | ||
| Double Side Test | Max Test Point | 40960(General Use) | |
| 4096(Special Use) | |||
| Max Board Test Size | 406mm χ 325mm | ||
| 320mm χ 400mm | |||
| Min Test pitch of SMT | 0.5mm | ||
| Test Voltage | 10-250V | ||
| Mechanical Process | Chamfer | 20°, 30°, 45°, 60° | |
| Angle Tolerance | ± 5° | ||
| Deepness Tolerance | ± 0.20mm | ||
| V-Cut Angle | 20°, 30°, 45° | ||
| Board Thickness | 0.1-3.2mm | ||
| Residues Thickness | ± 0.025mm | ||
| Cell Paraposition Precision | ± 0.025mm | ||
| Tolerance of Out-shape Process | ± 0.1mm | ||
| Board Warp | Max Value | 0.7% | |
| Optical Plotting | Max Plotting Area | 66mm χ 558.8mm | |
| Precision | ± 0.01mm | ||
| Repetitive Precision | ± 0.005mm | ||
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for PCB assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
* PCB Assembly With UL, CE, FCC, RoHS Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.

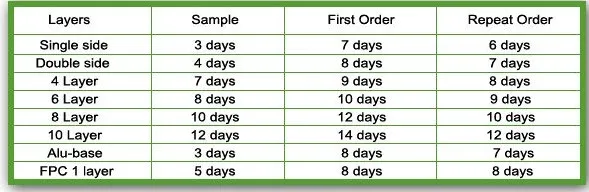

Delivery Time for PCB board
1) PCB production time: Sample: 3-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days
Quotation Requirement and Time:
1) Following specifications are needed for quotation:
A) Base material:
B) Board thickness:
C) Copper thickness:
D) Surface treatment:
E) color of solder mask and silkscreen:
F) Quantity
2) Qutoation within 2 hour after we get the gerber file or PCB file with complete specifications
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.
IF YOU HAVE ANY NEED,PLEASE FEEL FREE TO CONTACT ME!
