Lead-Free HASL PCB Assembly with Aoi and X-ray Inspection
Reliable PCBA ManufacturerSuntek is specialized in manufacturing all kinds of PCB&PCBA for home appliance,communication industry,car industry and LED lights industry.Service on both OEM and ODM project. We have been in this line for more than 12 years.With the professional R&D team and skill......
Send Inquiry
Product Description
Reliable PCBA Manufacturer
Suntek is specialized in manufacturing all kinds of PCB&PCBA for home appliance,communication industry,car industry and LED lights industry.Service on both OEM and ODM project. We have been in this line for more than 12 years.With the professional R&D team and skillful workers, we can put your design into physical product, and also put your idea into workable design and product. We can offer you one stop solution from PCB, Components purchasing, Components assembly,test to the whole fabrication.
| PCB CAPABILITY | |
| Layout number | 1-20 layers |
| Material | FR4,Tg=135,150,170,180, Rogers, Ceramic and Aluminum based |
| Copper thickness | 1/2oz,1oz,2oz,3oz,4oz,5oz |
| Board thickness | 8-236mil(0.2-6.0mm) |
| Min.line width/space | 3/3 mil(75/75um) |
| Tolerance of hole size | 2 mil(0.05mm) |
| Solder mask color | Green,blue,yellow,white,black,red |
| Surface treatment | HASL(ROHS), ENING,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold |
| V-cut | Yes |
| Blind hole/buried hole | Yes |
DIP capability:
• A-8 of semi-assembly work line with 3 sets wave soldering machines
• B-4 of high/low-temperature burn-in test ovens for the burn-in tested required products
• All products are 100% inspected and tested during the DIP process
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

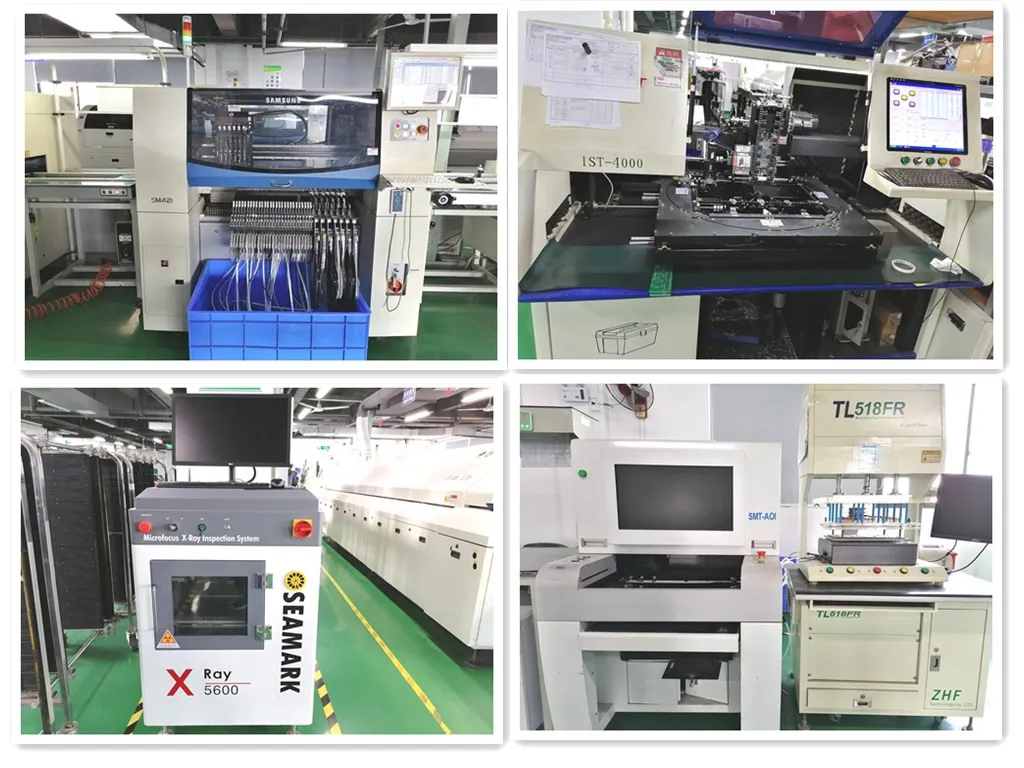

Equipment in our PCBA facilities includes:
-Functional, electrical and in-circuit testing equipment
-Optical microscopes
-Multifunction placement machines
-Full-vision solder printing machines
-Full-vision high-speed pick-and-place machines
-BTU reflow machines
-Wave soldering machine.
Welcome to send us Gerber file and BOM list for estimating at any time
You will get our prompt reply in 24hrs.
