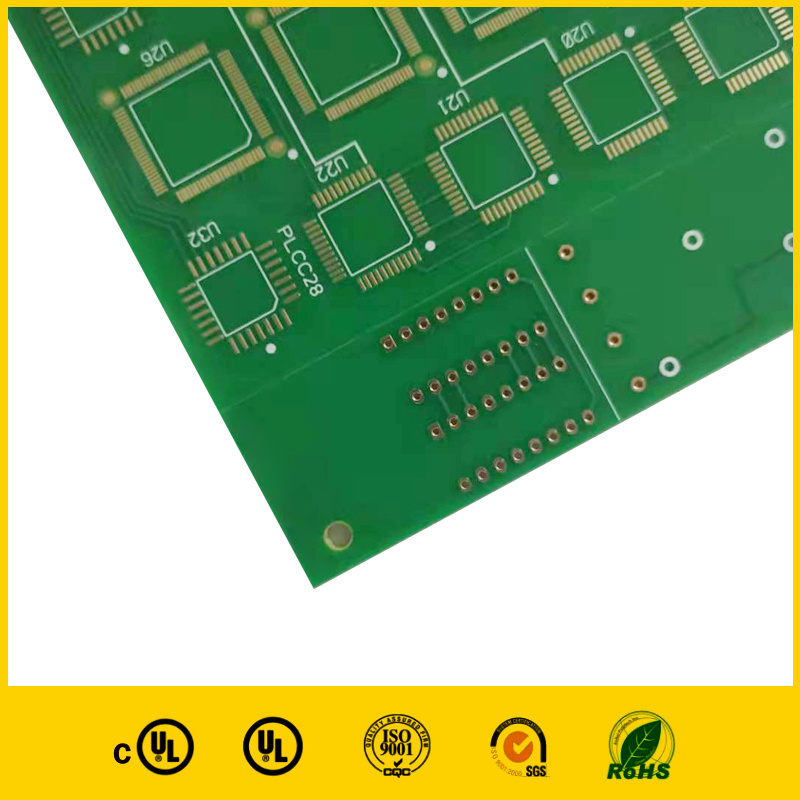

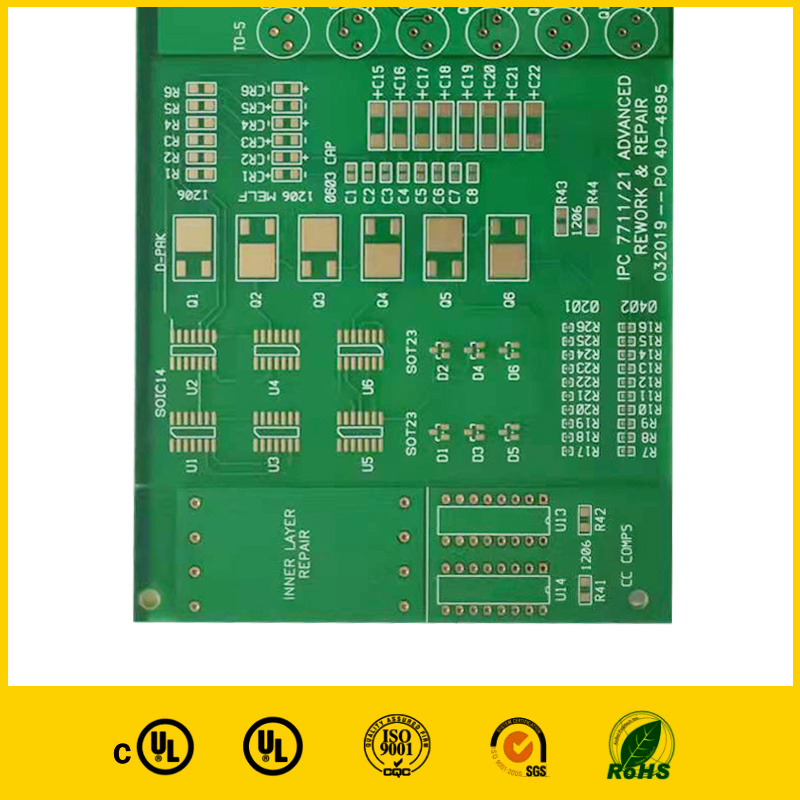

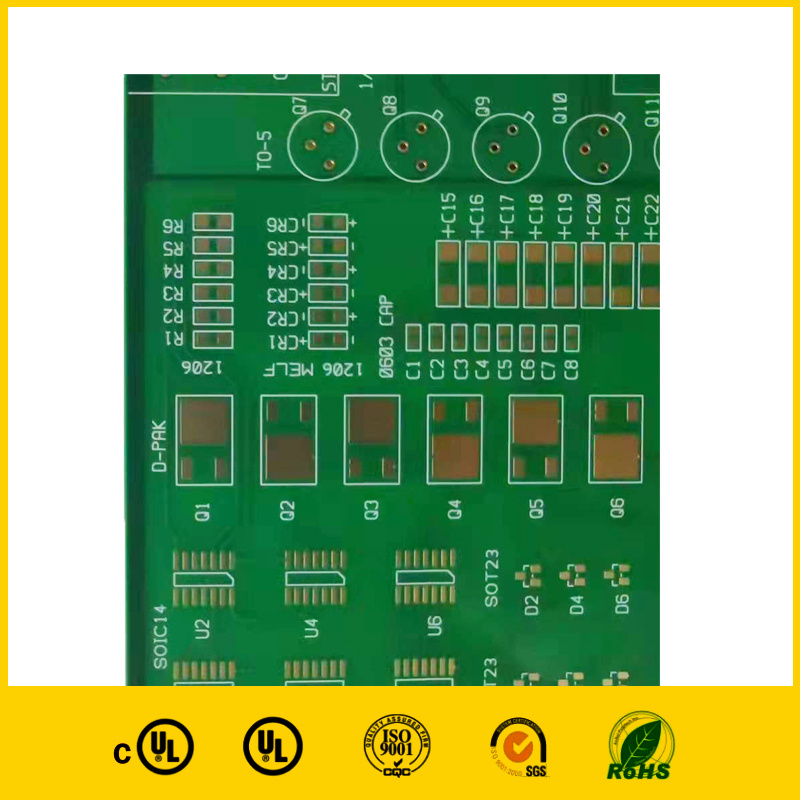

China High Tg170 PCB Circuit Board Made by Coenrich

Product Description

Quality Policy
transcendent quality,perfect embodiment,Prevent pollution,Energy efficiency,Green production,Continual improvement,customers' satisfaction.

Quality Target:
Non Automobile products:
Rate of the first passed products:>95%
Rate of delivery on time:>98%
Rate of customer's complaint:<1%

Automobile products:
Rate of the first passed products :100%
Rate of customer's complaint::<0.5%

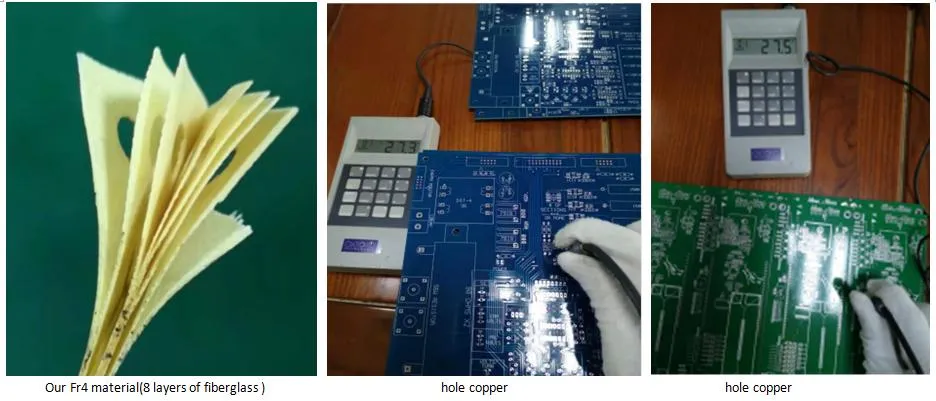

High Tg170 PCB Circuit Board Made by Coenrich

Capability for Rigid PCB Production
NO.	ITEM	TECHNICAL DATA
1	Types of Products	Multilayer PCB, Buried/Blind Via PCB, High Frequency PCB, Rigid-Flexible PCB, Teflon Board, HDI, Aluminum Base PCB.
2	Materials	FR-4, Copper core, Getek , Rogers, Aluminum core, High TG, Teflon, Black FR4
3	Layers	2-32(layers)
4	Max Board Size	450 x 660mm 18" x 26"
5	Min Board Thickness	4(layers) 0.40mm 16mil
		6(layers) 0.80mm 32mil
		8(layers) 1.00mm 40mil
		10(layers) 1.20mm 48mil
6	Copper Clad(Max.)	20oz(outer) / 4oz(inner)
7	Min line Width/space	0.075mm 3mil
8	Drill Size Mechanical (min)	0.20mm 8mil
9	Drill Size Laser(min)	0.10mm 4mil
10	PTH Wall Thickness	0.020mm 0.8mil
11	PTH dia tolerance	±0.075mm ±3mil
12	NPTH hole dia tolerance	±0.05mm ±2mil
13	Hole Position Deviation	±0.05mm ±2mil
14	Outline Tolerance	±0.10mm ±4mil
15	S/M Pitch	0.08mm 3mil
16	Insulation Resistance	1E+12Ω(Normal)
17	Test Voltage	50~300V
18	Aspect ratio	8:1
19	Thermal Shock	3x10Sec@288 ºC
20	Warp and Twist	≤0.75%
21	Current breakdown	10A
22	Electric Strength	>1.3KV/mm
23	Peel Strength	1.4N/mm
24	Solder Mask Abrasion	≥6H
25	Flammability	94V-0
26	Impedance Control	±10%
27	Buried Via	Yes
28	Blind Via	Yes
29	HDI	2+N+2 4mil Via hole
30	Surface Finished	ENIG, ImAg, ImSn, OSP, HASL Free

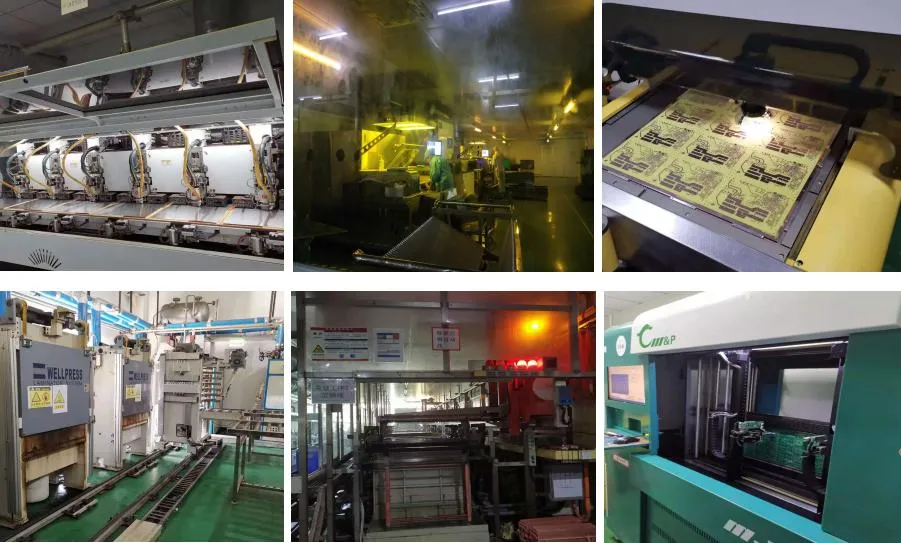

Shenzhen Coenrich circuit Technology Co., Ltd Equipment List
Pur. Date	Equipment number	Equipment name	Equipment	Unit	Qty	Location
2018/10/19	SC-SP2018-003	LED parallel exposure machine	DZ680	PCS	1	Dry Area
2018/08/02	SC-SP2018-005	Chemical cleaning machine	18CCP25DNA01	PCS	1	Dry Area
2018/08/02	SC-SP2018-006	Etching&removing film machine	18ESF15DNA01R1	PCS	1	Dry Area
2018/08/02	SC-SP2018-010	Line develop machine	17DLD25NPA01	PCS	1	Dry Area
2018/08/02	SC-SP2018-012	Pretreat machine	18SCMR25NPA02	PCS	1	Dry Area
2018/08/02	SC-SP2018-013	Solder mask	18DLM25NPA01	PCS	1	Dry Area
2018/10/24	SC-SP2018-030	Solder mask upright printer	CK-6575	PCS	1	Dry Area
2018/10/24	SC-SP2018-031	Solder mask upright printer	CK-6575	PCS	1	Dry Area
2018/10/24	SC-SP2018-032	Silkscreen machine	CK-S	PCS	1	Dry Area
2018/10/24	SC-SP2018-033	Silkscreen machine	CK-S	PCS	1	Dry Area
2018/11/02	SC-SP2018-036	Manul film sticking machine	ACSL-M25R	PCS	1	Dry Area
2018/11/16	SC-SP2018-044	Solder mask baking machine	Inner Size 15001500900,	PCS	1	Dry Area
2018/11/16	SC-SP2018-045	Silkscreen baking machine	Inner Size 15001500900,	PCS	1	Dry Area
2018/12/30	SC-SP2018-056	Outer layer automatic decimal aligment exposure machine	XDT-6600	PCS	1	Dry Area
2018/10/25	SC-SP2018-069	Solder mask printer	600500700	PCS	4	Dry Area
2019/03/02	SC-SP2019-009	Solder mask printer	700*800	PCS	1	Dry Area
2019/03/02	SC-SP2019-010	Solder mask printer	700*800	PCS	1	Dry Area
2019/12/16	SC-SP2019-040	Sigle slot ultrasonic cleaning mahine	JSD-1048FP	PCS	1	Dry Area
2018/11/16	SC-SP2018-039	High Speed probe machine	M-P8	PCS	2	QA
2018/11/16	SC-SP2018-046	Vacume machine	550*650	PCS	1	Production warehouse
2018/11/20	SC-SP2018-047	double plate grinding miller	VC-JX-31	PCS	1	QA
2018/11/20	SC-SP2018-048	Auto sampling machine	VC-QY-01	PCS	1	QA
2018/11/20	SC-SP2018-049	Metalloscope	VC-JX-35	PCS	1	QA
2018/11/20	SC-SP2018-050	Soldering test machine	VC-XL-30	PCS	1	QA
2018/11/20	SC-SP2018-051	copper measureing machine	CMI165	PCS	1	QA
2018/11/20	SC-SP2018-052	Hole copper test machine	CMI760	PCS	1	QA
2019/05/16	SC-SP2019-004	Probe machine	SURPASSV6L	PCS	1	QA
2019/04/09	SC-SP2019-005	Special test machine	SH-PCB-168	PCS	1	QA
2019/02/25	SC-SP2019-006	Type micrometer		PCS	1	QA
2019/07/17	SC-SP2019-007	V-CUT remaining thickness measuring machine	HD-826	PCS	1	QA
2019/03/30	SC-SP2019-008	V-CUT machine	380semi-automatic	PCS	1	QA
2019/02/25	SC-SP2019-003	AOI machine	T11-1/VRS	PCS	1	AOI room
2018/09/26	SC-SP2018-004	Impedance test machine	E5063A-245	PCS	1	Impedance room
2019/05/31	SC-SP2018-001	2nd copper plating auto-line	PTT-HA07236	PCS	1	Wet Area
2019/05/31	SC-SP2018-002	PTH line	DMH-HA07246	PCS	1	Wet Area
2018/10/17	SC-SP2018-011	Stripped etching & Tin removing machine	18SES25NPA01	PCS	1	Wet Area
2018/10/17	SC-SP2018-014	Cleaning machine	FC30NTA06	PCS	1	Rounting machine
2018/11/01	SC-SP2018-034	two axis NC routing machine	BTF5565G*2	PCS	1	Rounting machine
2018/11/01	SC-SP2018-035	two axis NC routing machine	BTF5565G*2	PCS	1	Rounting machine
2019/11/15	SC-SP2019-014	Silkscreen baking machine	150015001000	PCS	1	Baking Room
2018/11/28	SC-SP2018-054	CCD auto-positioning film punching machine	Ren An Tai	PCS	1	Cleaning Room
2018/10/17	SC-SP2018-007	Black Oxide Treatment line	BR20DNA02	PCS	1	Laminating Room
2018/10/17	SC-SP2018-008	stainless sheet cleaning line	18SS50DKA02	PCS	1	Laminating Room
2018/10/17	SC-SP2019-002	Two axis X-Ray drilling machine	ADT-900XP2B	PCS	1	Laminating X-Ray room
2018/10/17	SC-SP2019-034	NC drilling machine	SY5562-2	PCS	1	Laminating outline workshop
2019/06/01	SC-SP2019-013	two-axis rivet machine	JS-7729	PCS	1	Laminating Room
2018/10/17	SC-SP2019-033	NC drilling machine	SY5562-2	PCS	1	Laminating routing room
2018/11/08	SC-SP2018-067	PCB high temperature lamination machine	Mutilayer Vacume lamination machine LP12	PCS	2	Laminating pressure machine
2018/11/15	SC-SP2018-037	6-axis drilling machine	HANS-F6M	PCS	3	Drilling Room
2018/11/15	SC-SP2018-038	6-axis drilling machine	HANS-F2MH	PCS	3	Drilling Room
2020/04/02	SC-SP2018-039	Plasma glue removal cleaning machine	HU20JUY06	PCS	1	Wet Area
