Custom PCB Printed Circuit Board Air Conditioner Parts PCBA
WHY CHOOSE STHL
COMPANY PROFILES
Products Capability
| Items | PCB capacity |
| Product name | OEM/ODM Shenzhen Printed Circuit Board PCBA Board |
| Material | FR-4; High TG FR-4; Aluminum; CEM-1; CEM-3; Rogers, etc |
| PCB type | Rigid, flexible, rigid-flexible |
| Layer NO. | 1, 2, 4, 6, up to 24 layer |
| Shape | Rectangular, round, slots, cutouts, complex, irregular |
| Max PCB dimensions | 1200mm*600mm |
| Board Thickness | 0.2mm-4mm |
| Thickness Tolerance | ±10% |
| Min Hole Size | 0.1mm (4 mil) |
| Copper Thickness | 0.5 OZ-3OZ (18 um-385 um) |
| Copper Plating hole | 18um-30um |
| Min Trace Width | 0.075mm (3mil) |
| Min Space Width | 0.1mm (4 mil) |
| Surface finish | HASL, LF HASL, Imm Gold, Imm Silver, OSP etc |
| Solder mask | Green, red, white, yellow, blue, black, orange, purp |
| Items | PCBA capacity |
| Product name | OEM/ODM Shenzhen Printed Circuit Board PCBA Board |
| Assembly details | SMT and Thru-hole, ISO SMT and DIP lines |
| Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test |
| Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK |
| Files needed | PCB : Gerber files(CAM, PCB, PCBDOC) |
| Components : Bill of Materials(BOM list) | |
| Assembly : Pick-N-Place file | |
| PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm) |
| Max size : 1200*600mm | |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine BGA Pitch to 0.2mm(8mil) | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape, Tube, Reels, Loose Parts |
| PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity |

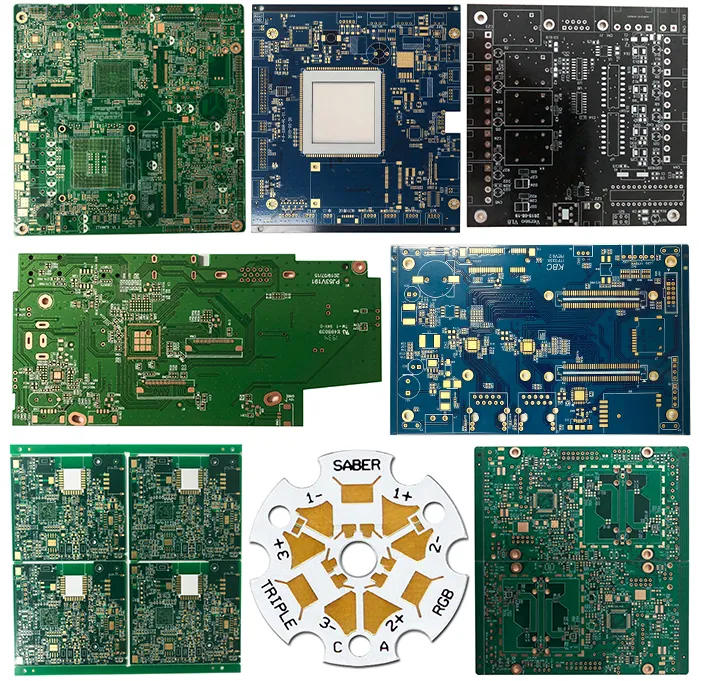

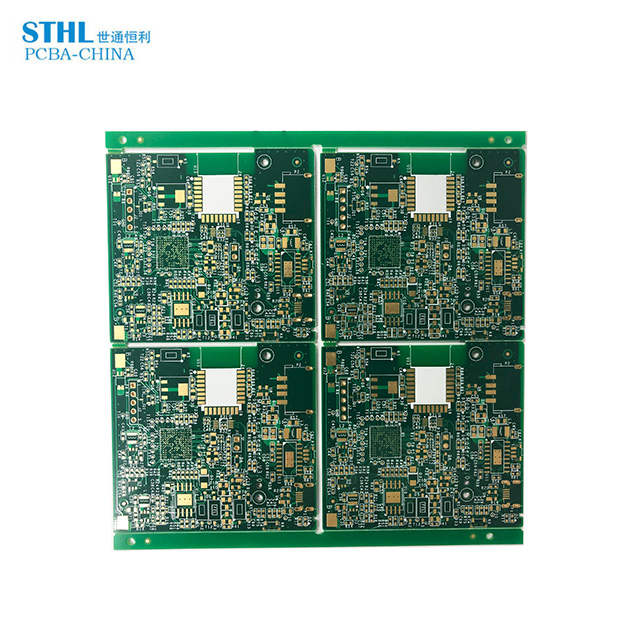

PCB Showcase

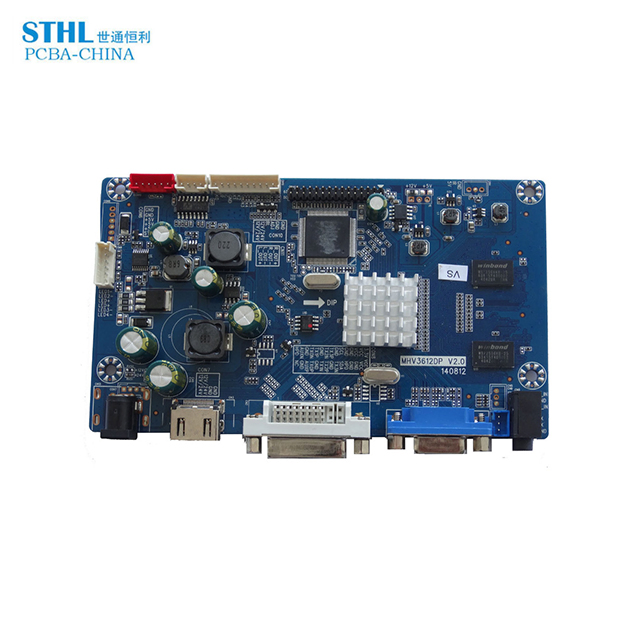

PCBA Showcase

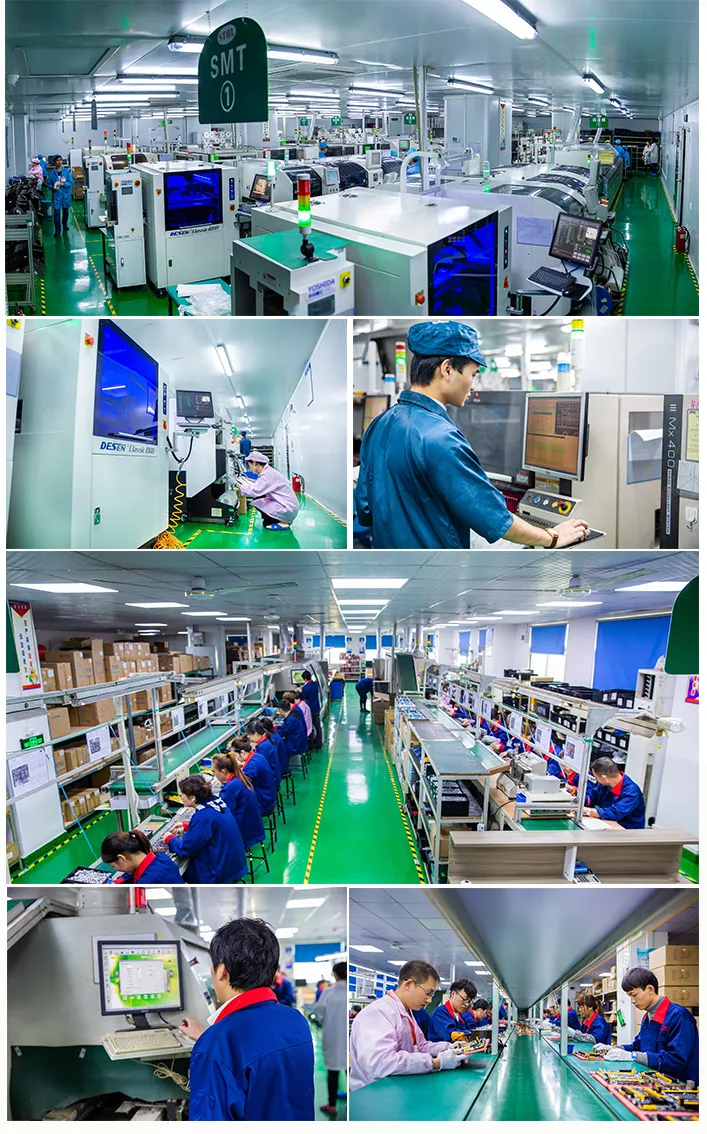

Dust-free workshop with 6 SMT lines and 2 DIP lines, 2 finished prouducts assembly lines
