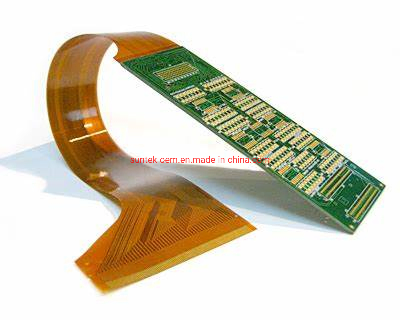

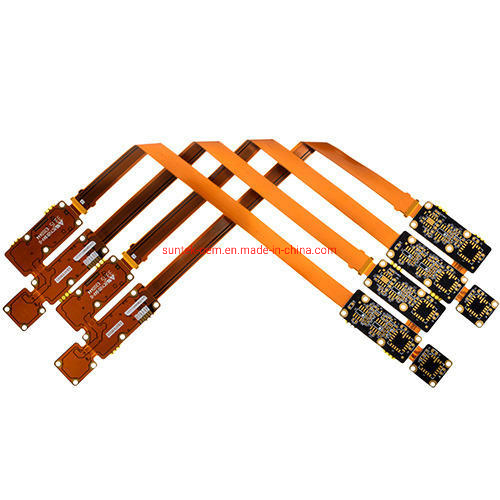

China Polyimide PCB Prototype with Fr4 Stiffener and Polyimide Stiffener

Product Description

Reliable PCBA Manufacturer

Suntek is specialized in manufacturing all kinds of PCB&PCBA for home appliance,communication industry,car industry and LED lights industry.Service on both OEM and ODM project. We have been in this line for more than 12 years.With the professional R&D team and skillful workers, we can put your design into physical product, and also put your idea into workable design and product. We can offer you one stop solution from PCB, Components purchasing, Components assembly,test to the whole fabrication.

PCB CAPABILITY
Layout number	1-20 layers
Material	FR4,Tg=135,150,170,180, Rogers, Ceramic and Aluminum based
Copper thickness	1/2oz,1oz,2oz,3oz,4oz,5oz
Board thickness	8-236mil(0.2-6.0mm)
Min.line width/space	3/3 mil(75/75um)
Tolerance of hole size	2 mil(0.05mm)
Solder mask color	Green,blue,yellow,white,black,red
Surface treatment	HASL(ROHS), ENING,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold
V-cut	Yes
Blind hole/buried hole	Yes

DIP capability:
• A-8 of semi-assembly work line with 3 sets wave soldering machines
• B-4 of high/low-temperature burn-in test ovens for the burn-in tested required products
• All products are 100% inspected and tested during the DIP process

Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

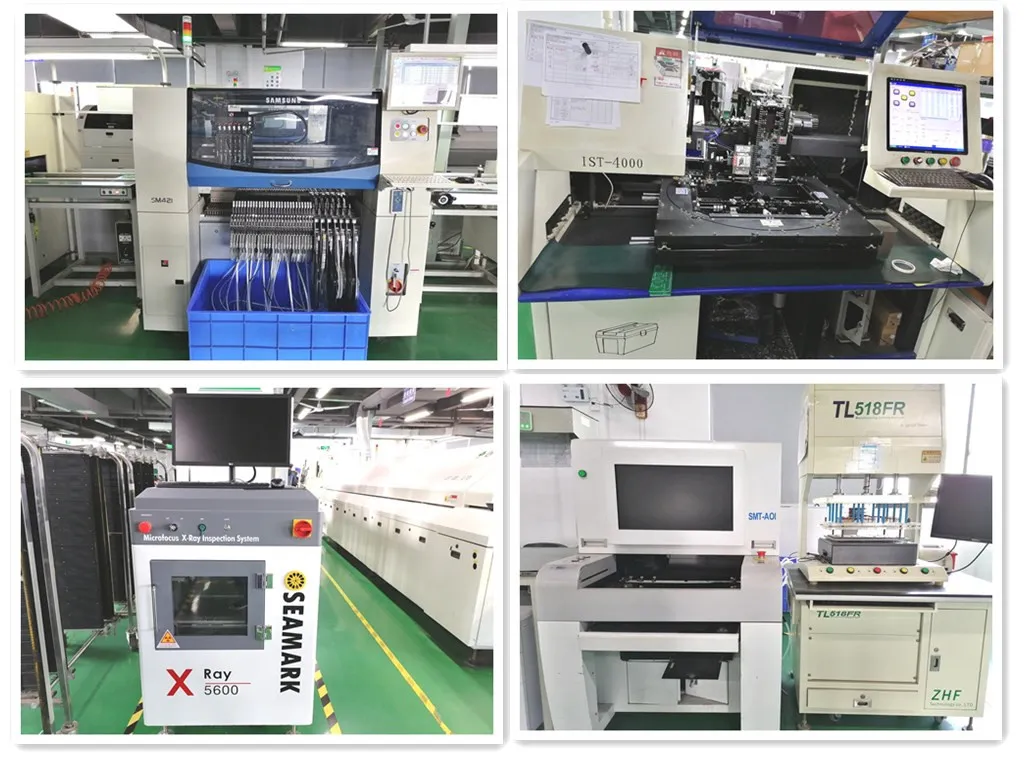

Equipment in our PCBA facilities includes:
-Functional, electrical and in-circuit testing equipment
-Optical microscopes
-Multifunction placement machines
-Full-vision solder printing machines
-Full-vision high-speed pick-and-place machines
-BTU reflow machines
-Wave soldering machine.

Welcome to send us Gerber file and BOM list for estimating at any time
You will get our prompt reply in 24hrs.
Polyimide PCB Prototype with Fr4 Stiffener and Polyimide Stiffener
