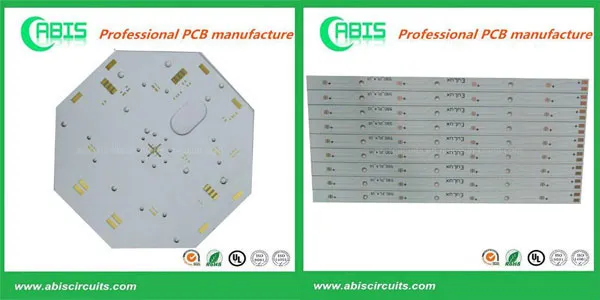

6 Layers Lead Free HASL PCB

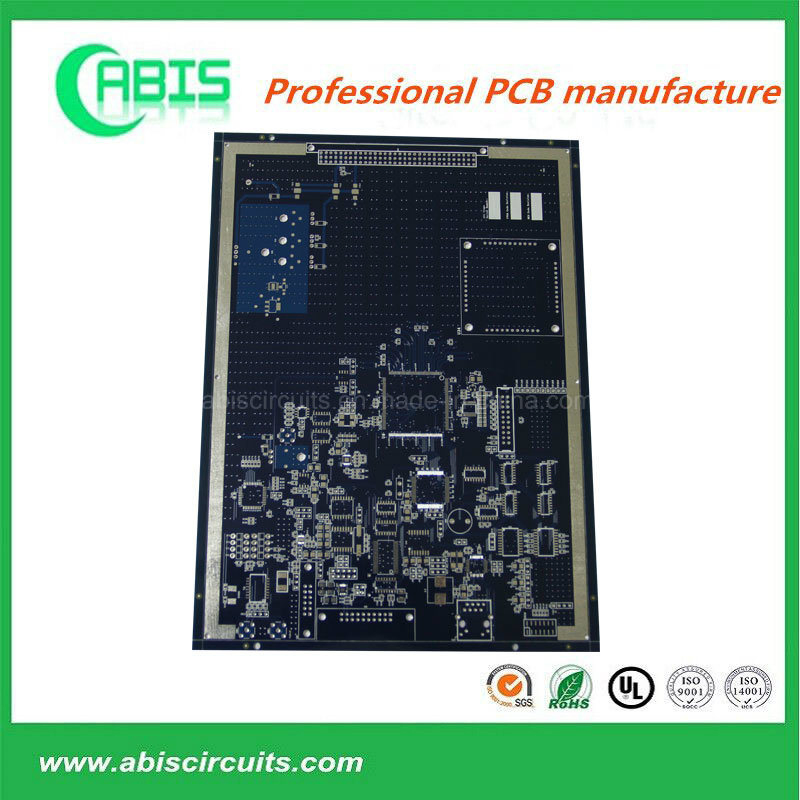

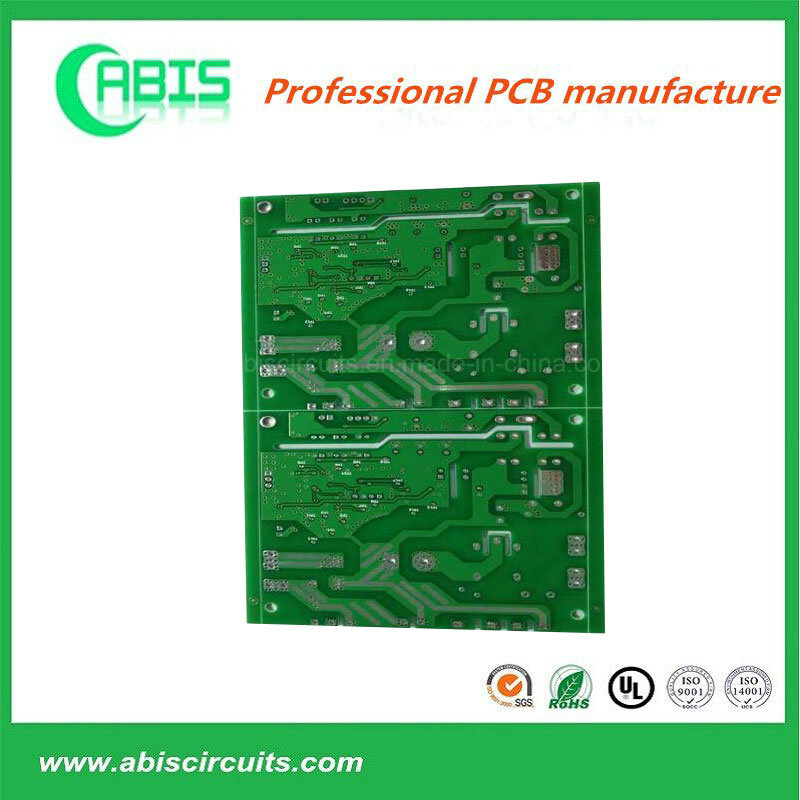

6 Layers Lead Free HASL PCB1. Single-sided PCB, double side & multi-layer PCB.2. CEM-1, FR-4(High TG), Aluminum base,Rogers,FR4 Halogen free,TEFLON,FR-1,CEM-3.3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP,gold plating/finger,Carbon ink,Peelable mask.4. Printed Circuit Boards adhere to ......
Send Inquiry
Product Description
1. Single-sided PCB, double side & multi-layer PCB.
2. CEM-1, FR-4(High TG), Aluminum base,Rogers,FR4 Halogen free,TEFLON,FR-1,CEM-3.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP,gold plating/finger,Carbon ink,Peelable mask.
4. Printed Circuit Boards adhere to IPC Class 2&3 international PCB standard.
5. Quantities range from prototype to medium/big batch production.
6.100% E-Test.
| 1 | Layer | 6layers(1-20 layers acceptable) |
| 2 | Material | FR-4(High TG),CEM-1,Aluminum base,FR-1,CEM-3,FR4 Halogen Free,Rogers,TEFLON |
| 3 | Board thickness | 0.2mm-6mm(normally 1.6mm) |
| 4 | Max.finished board size | 1200*600mm |
| 5 | Min.drilled hole size | 0.1mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spacing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HASL/HASL lead free,Immersion Gold/Tin/Silver,OSP,gold plating/finger,Carbon ink,Peelable mask |
| 9 | Copper thickness | 18um-280um(0.5OZ-8OZ)(normally 1OZ) |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Outline Tolerance | ±0.13mm |
| 12 | Impedance control Tolerance | ±10% |
| 13 | Hole tolerance | PTH:±0.075mm,NPTH:±0.05mm |
| 14 | Certificate | UL,ISO9001,ISO14001,SGS,RoHS report |
| 15 | Profiling punching | Routing,V-CUT,Beveling |
Certifications and Factory Pictures

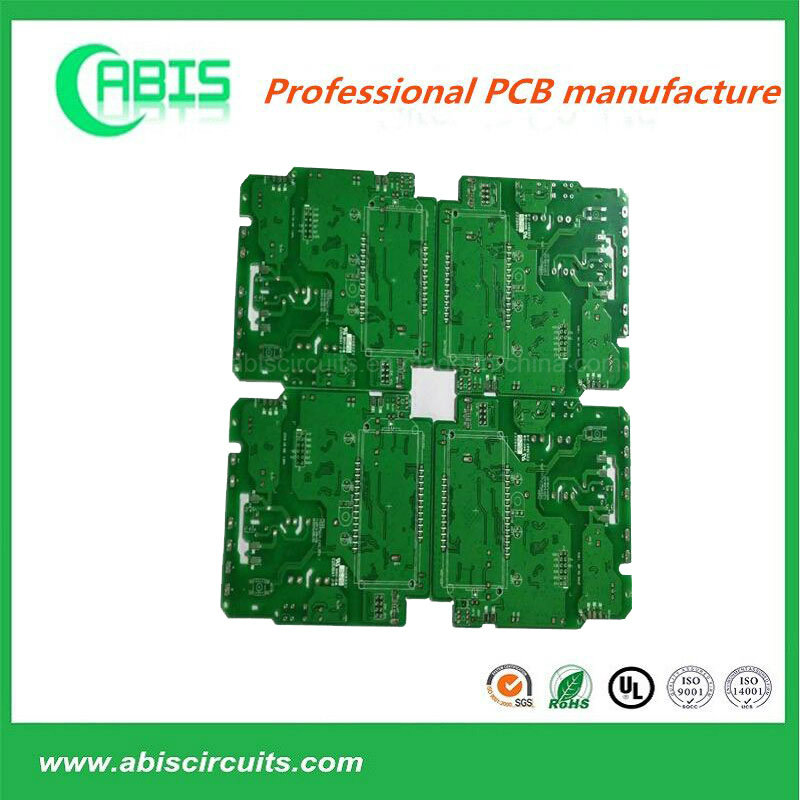

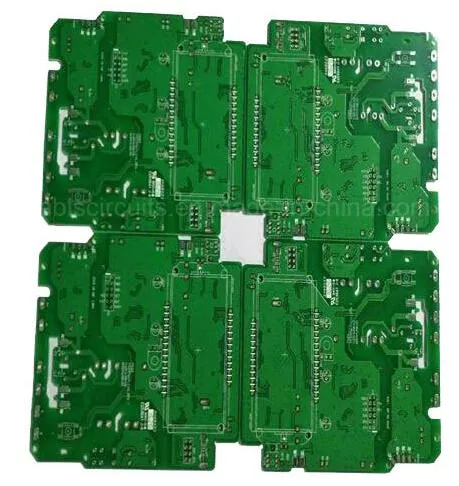

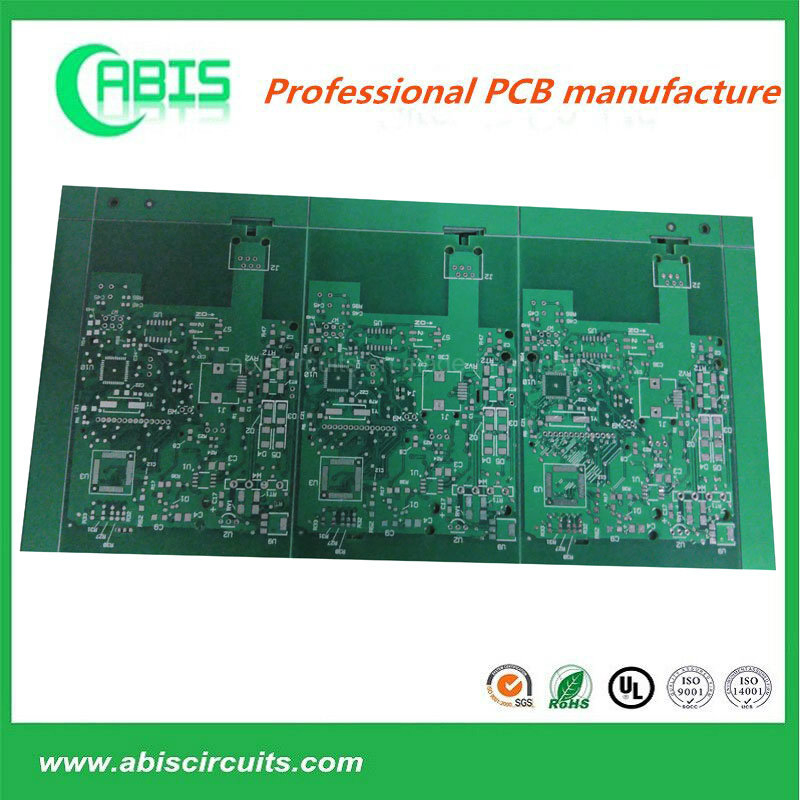

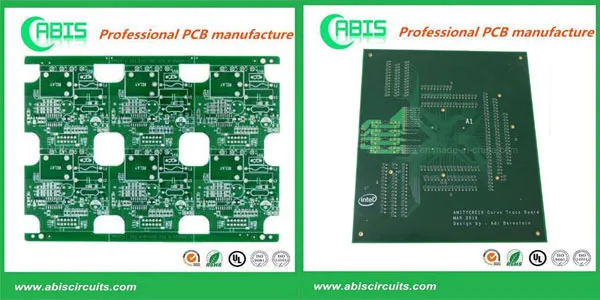

Product show:
Main Material Supplier:

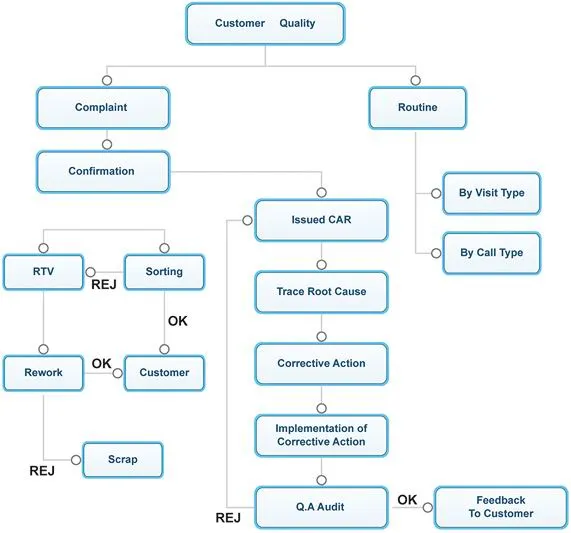

Quality Control Flow:
Pre-Sale and After-Sale Service:
FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 12 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2015, ISO14001: 2015, UL, SGS,RoHS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
