China 2L Electronics Board/ 2layer Heavy Copper 24/24oz PCB for Genius Products

Product Description

Quality Policy
transcendent quality,perfect embodiment,Prevent pollution,Energy efficiency,Green production,Continual improvement,customers' satisfaction.

Quality Target:
Non Automobile products:
Rate of the first passed products:>95%
Rate of delivery on time:>98%
Rate of customer's complaint:<1%

Automobile products:
Rate of the first passed products :100%
Rate of customer's complaint::<0.5%

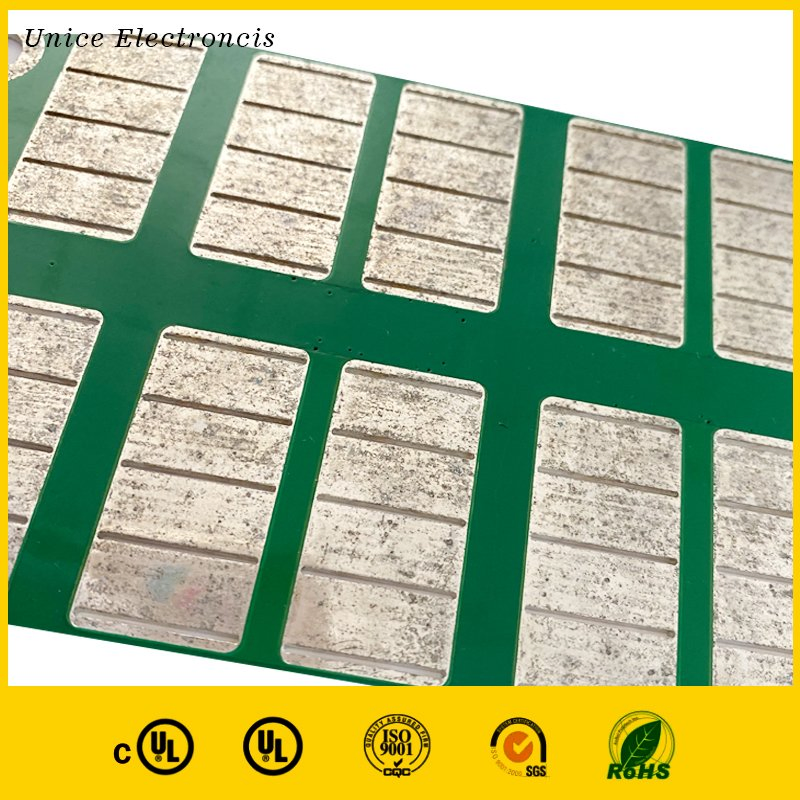

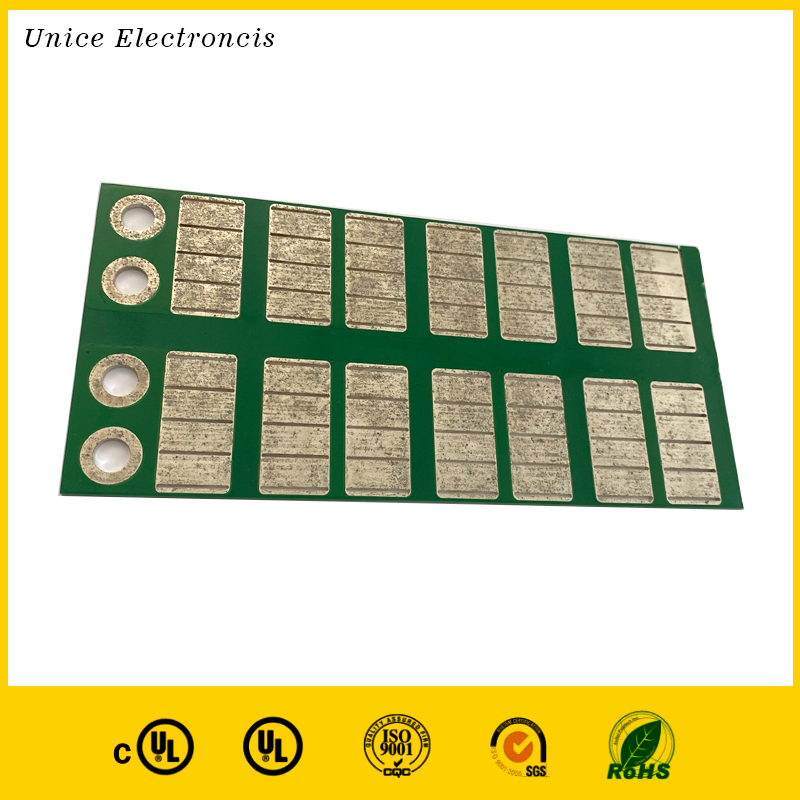

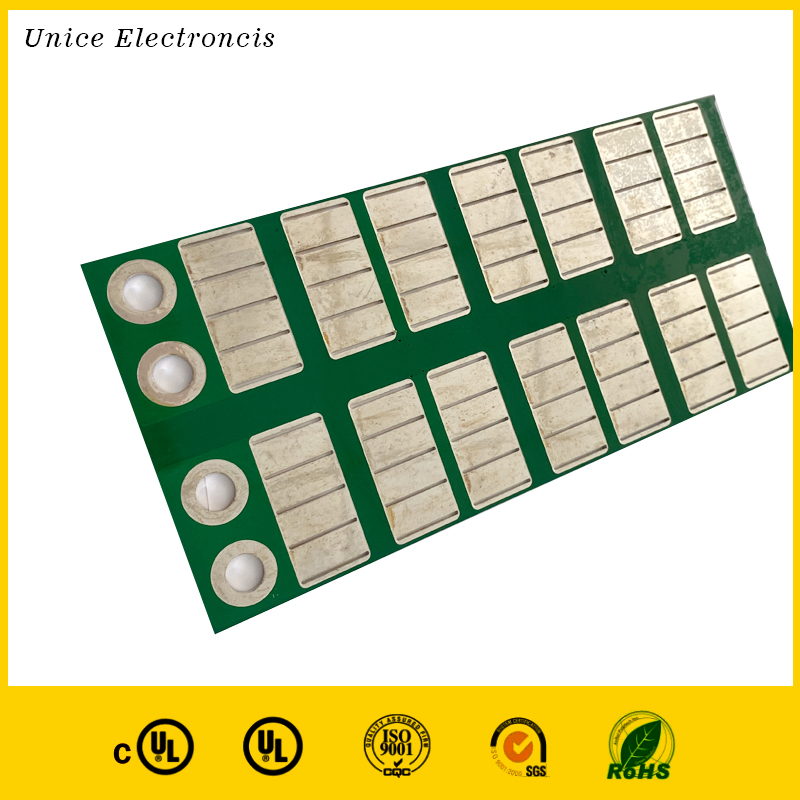

2L Electronics Board/ 2layer Heavy Copper 24/24oz PCB for Genius Products

Rigid PCB Production Capacity
SERIAL	ITEM	TECHNICAL DATA
1	Types of Products	HDL Multilayer PCB, Buried/Blind Via Board, High Frequency Board, Aluminum Base Board Flex-Rigid PCB,Teflon Board, and HDI
2	Layers	2-32(layers)
3	Max Board Size	450x660mm 18" x 26"
4	Min Board Thickness	4(layers)0.40mm 16mil
		6(layers)0.80mm 32mil
		8(layers)1.00mm 40mil
		10(layers)1.20mm 48mil
5	Copper Clad(Max.)	20 oz(outer)/4 oz(inner)
6	Min line Width/space	0.075mm 3mil
7	Drill Size Mechanical (min)	0.20mm 8mil
8	Drill Size Laser(min)	0.10mm 4mil
9	PTH Wall Thickness	0.020mm 0.8mil
10	PTH dia tolerance	±0.075mm ±3mil
11	NPTH hole dia tolerance	±0.05mm ±2mil
12	Hole Position Deviation	±0.05mm ±2mil
13	Outline Tolerance	±0.10mm ±4mil
14	S/M Pitch	0.08mm 3mil
15	Insulation Resistance	1E+12Ω(Normal)
16	Test Voltage	50~300V
17	Aspect ratio	8:01
18	Thermal Shock	3x10Sec@288 ºC
19	Warp and Twist	≤0.7%
20	Current breakdown	10A
21	Electric Strength	>1.3KV/mm
22	Peel Strength	1.4N/mm
23	Solder Mask Abrasion	≥6H
24	Flammability	94V-0
25	Impedance Control	+/-10%(Differential)
26	Buried Via	Yes
27	Blind Via	Yes
28	HDI	2+N+2 4mil Via hole
29	Surface Finished	ENIG, ImAg, ImSn, OSP, HASL free
30	Materials	FR-4 , Copper core, Getek , Rogers, Aluminum core, High TG, Teflon, black Fr4
