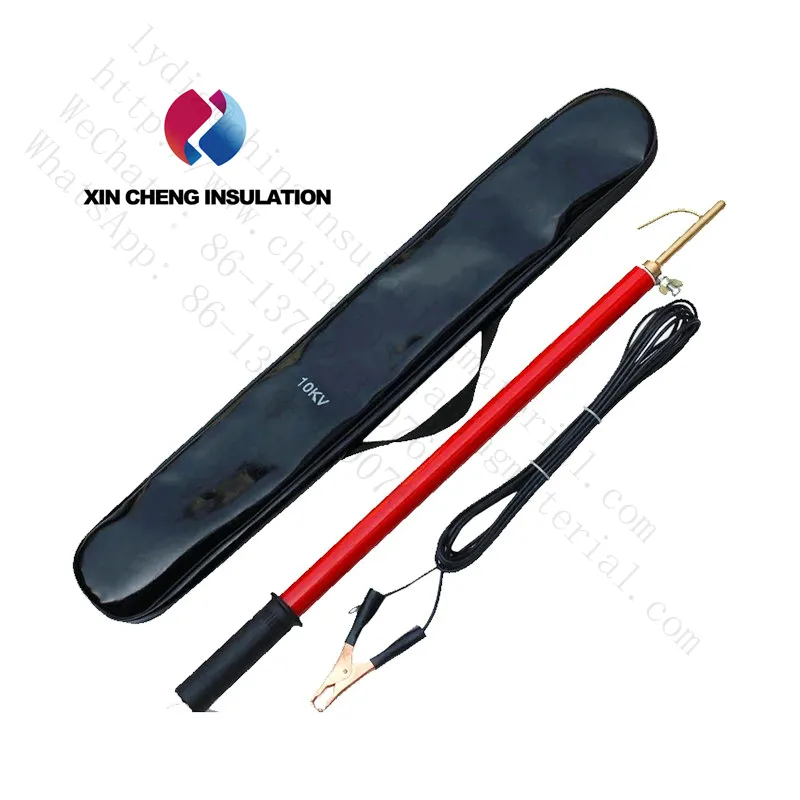

10-110kv Fiberglass Discharge Stick/Rod, Fiberglass Telescopic Discharge Stick
Quick DetailsPlace of Origin: China Brand Name: XINCHENGProduct name: discharge rod Type: Extension or telescopic/ Connection typeFunction: discharge ......
Send Inquiry
Product Description
Quick Details
Place of Origin: China Brand Name: XINCHENG
Product name: discharge rod Type: Extension or telescopic/ Connection type
Function: discharge Material of rod: Epoxy resin rod
Keyword: High Voltage Discharge Rod Material of cable: copper
Cross-section area of cable: 16mm2 ,25mm2 ,35mm2 ,50mm2 ,70mm2 ,95mm2 ,120mm2
Material of clamp: aluminum or copper as request.

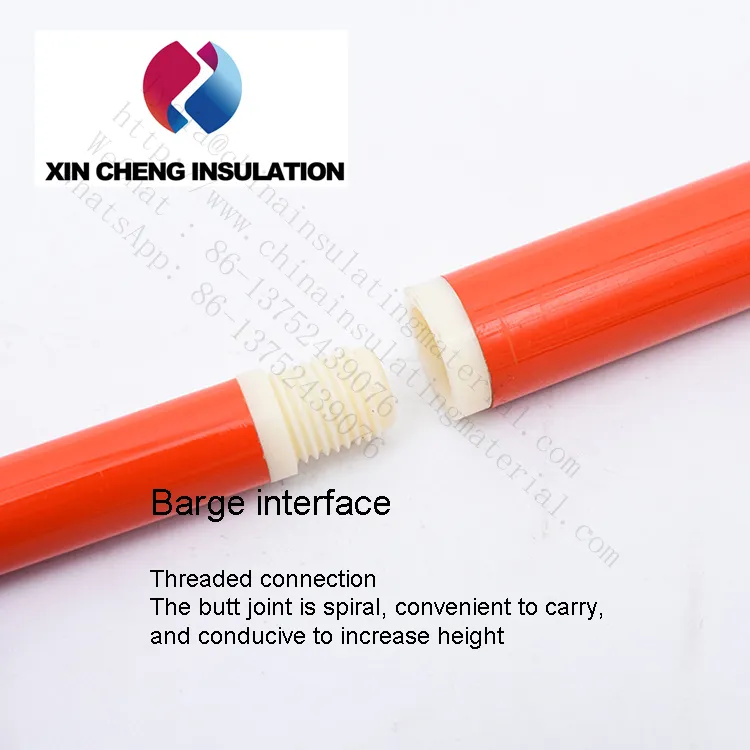

Discharge rod extension size: 2- 5 sections or as request Stretch length: 900mm-- 6000mm or as request
Voltage grade: 3kv . 6-10kv . 10kv . 30kv . 35 kv . 110kv . 140kv. 220kv . 330kv . 500kv

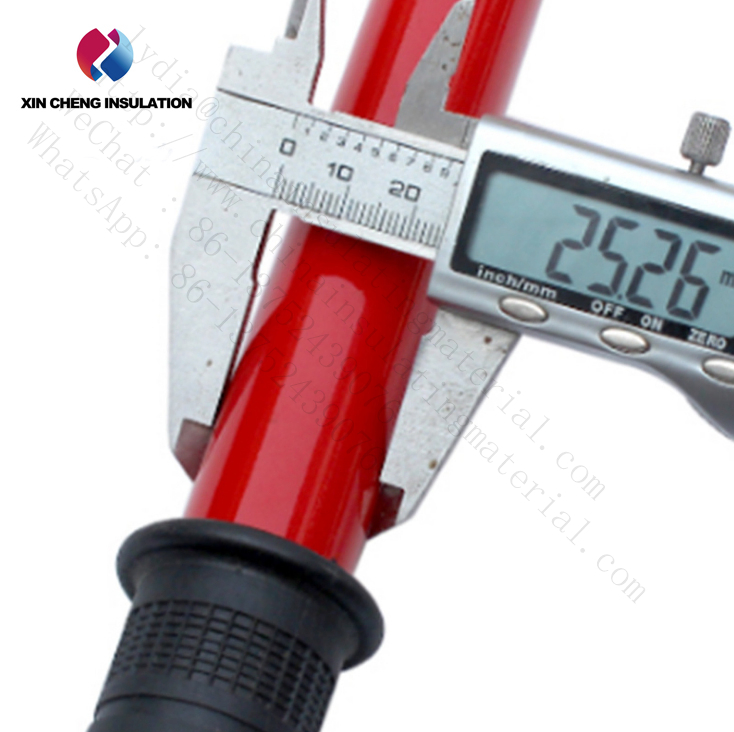

Voltage level: different level due to requirements External diameter: 25-40mm as for different type
Condition: Underground Installation: vertical type, horizontal
Impedance: 6.6-25MΩ, different as different type product. Strength: >=600N/mm2
Color: Red, Green, yellow or Customized. Warranty: 3 Years
OEM: available. other voltage of the discharge rod can be customized, the size and impedance of different voltage levels of discharge rod are different.
Certificate: ISO9001:2008 ,IEC60947and IEC60269standarded. HS Code: 9031809090
Discharging time: tens of seconds
Product Description
Insulated Fiberglass Hot Stick Cutout Fuse Surge Arrester Hv Telescopic Insulation Operating Rod

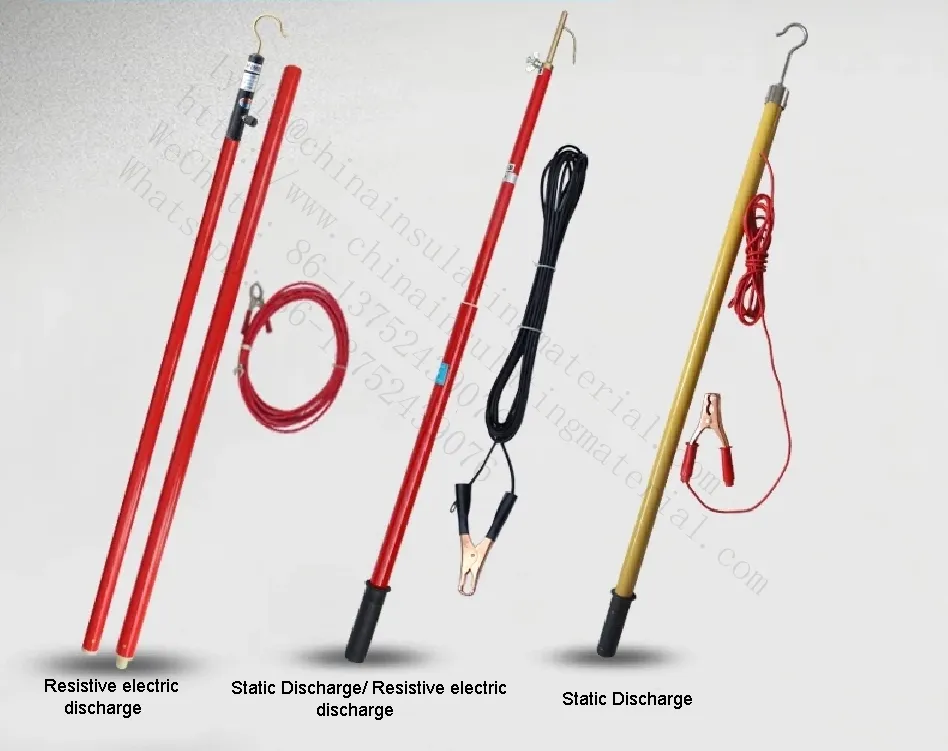

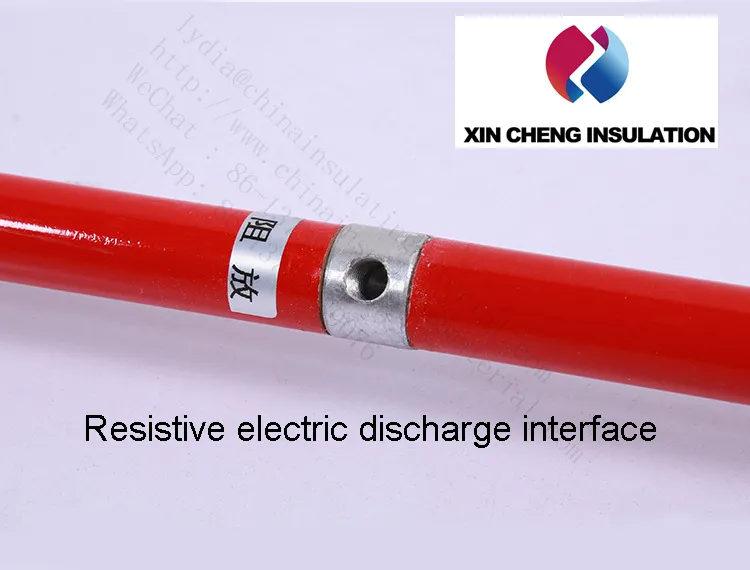

Non Linear Carbon Discharge Resistor Type Discharge Rods are used to discharge dead system having limited fault levels and also to discharge the static & induced charges in the dead system or equipment, particularly in transmission lines, cables, transformers, reactors, large bus bar systems, switch-gears etc. The earthing lead is made up of special highly flexible braided copper cable with transparent sheath. Copper Hook and copper rod & Earth End Clamp of special alloy are provided.

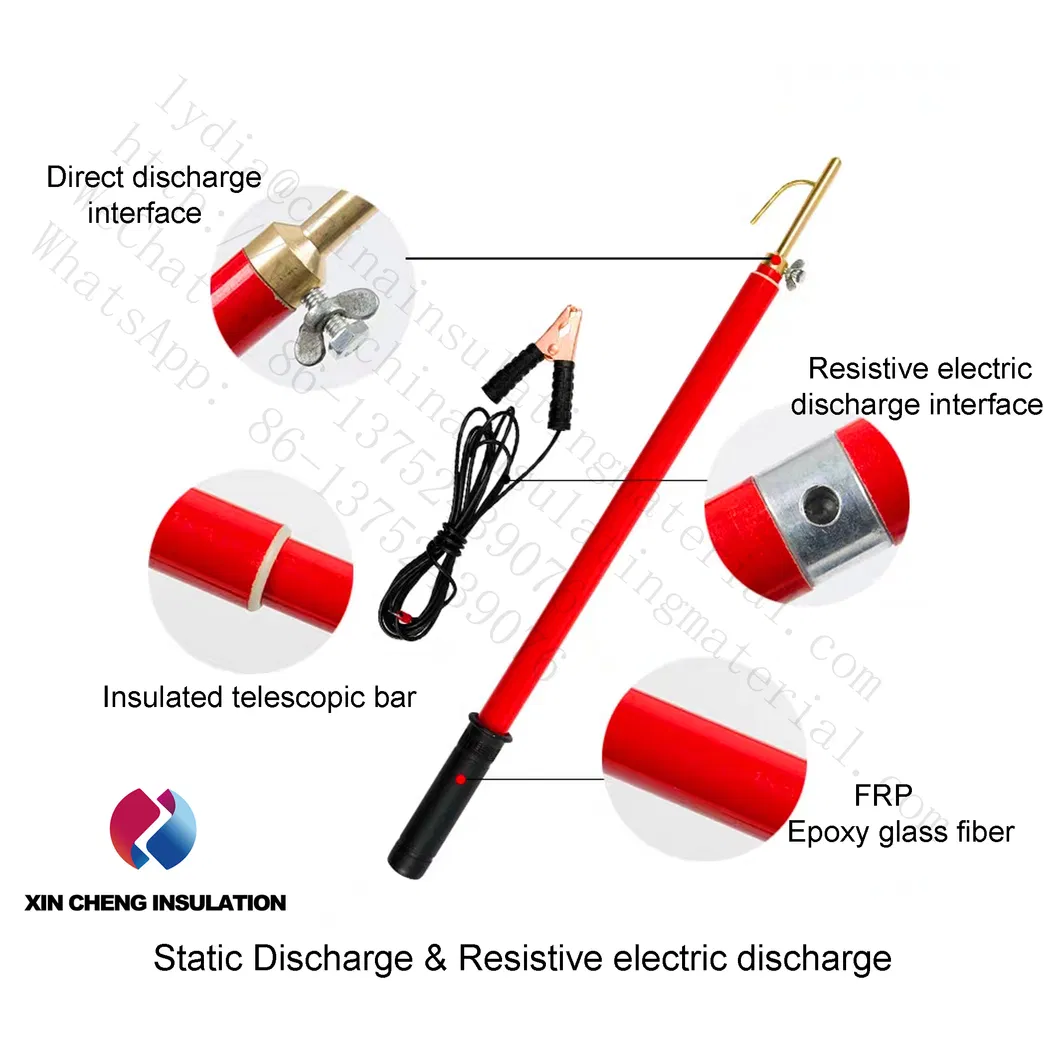

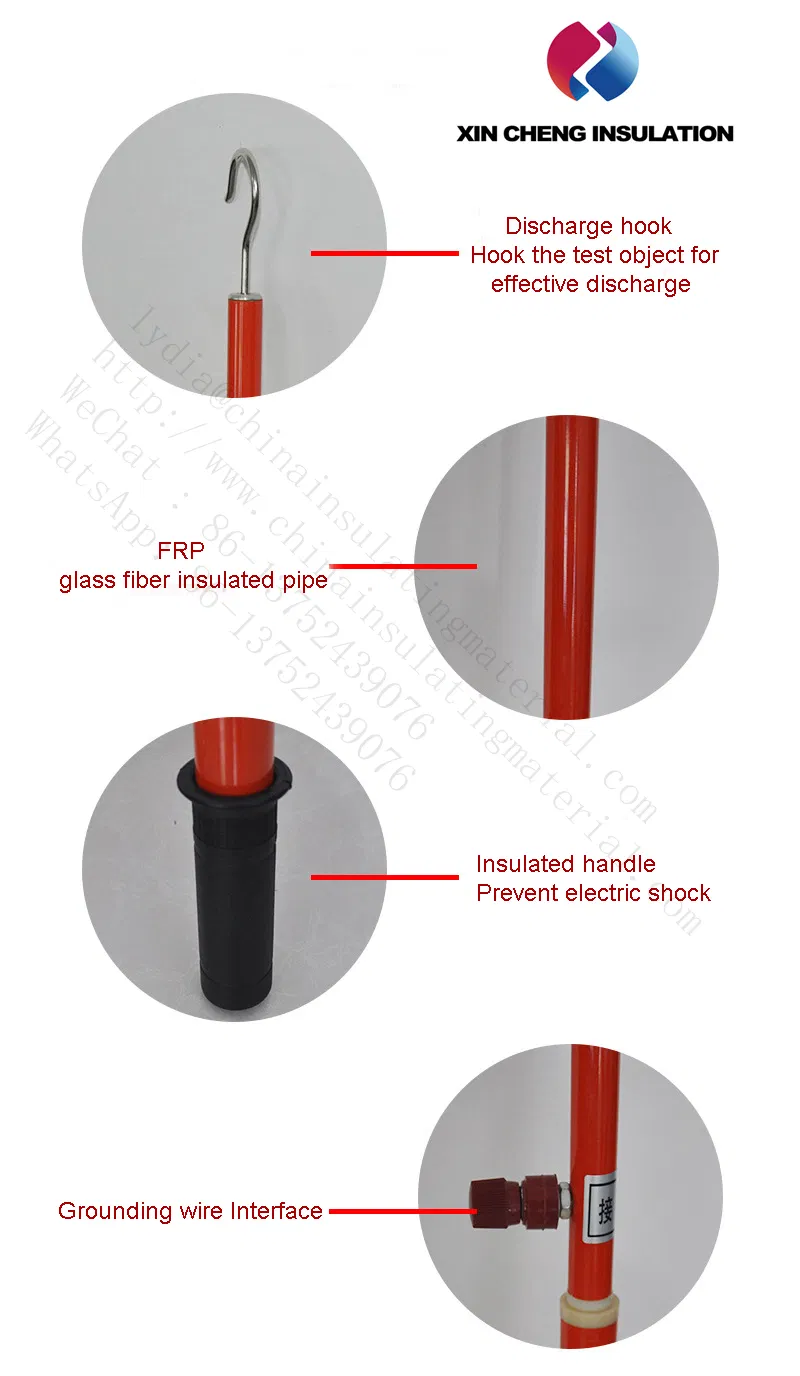

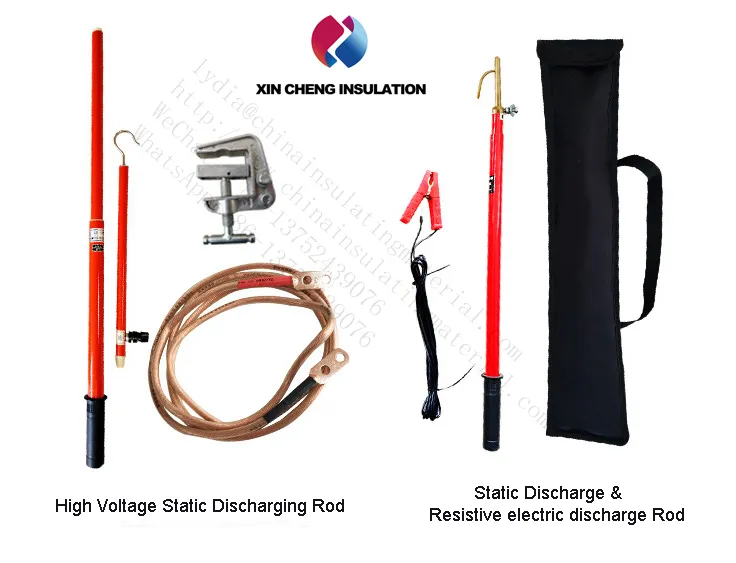

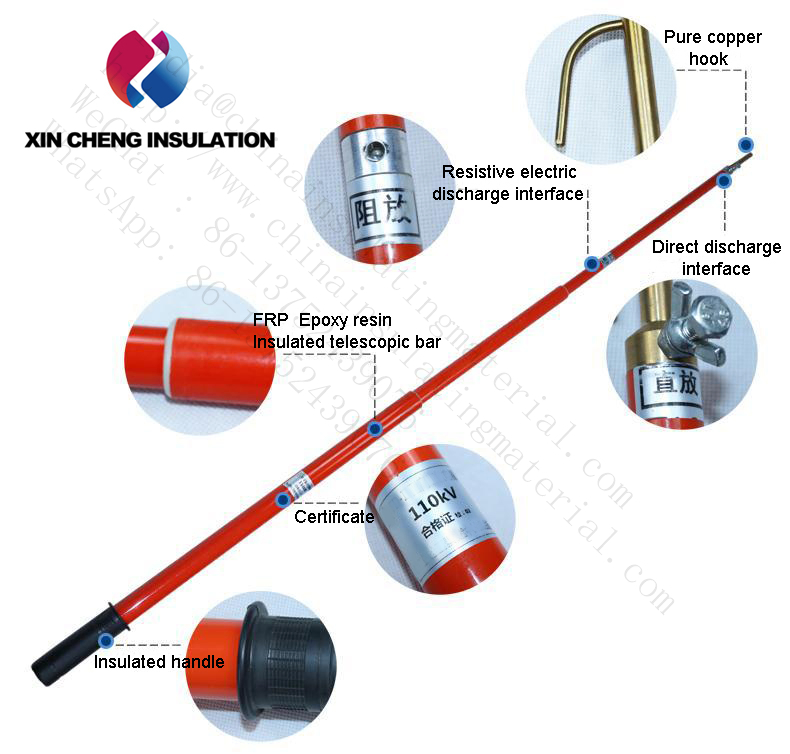

Composition: discharge rod + single-phase ground wire + grounding clamp.
Uses:
The high voltage discharge rod can be usde for on-site high voltage test, especially in DC withstand voltage test, it should carry out a ground discharge for the accumulated charge on tested objects to ensure personal safety.

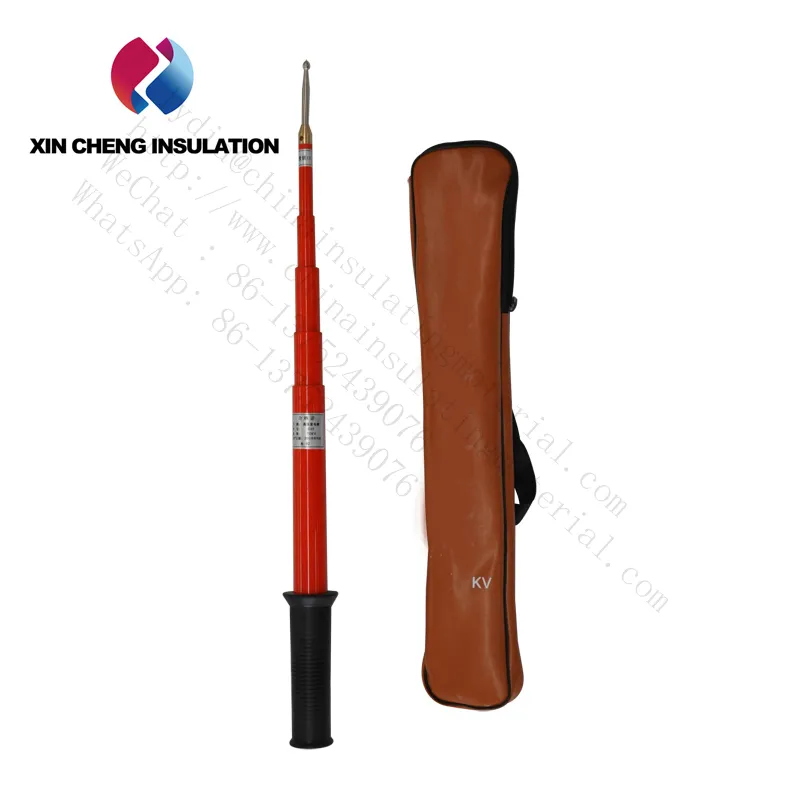

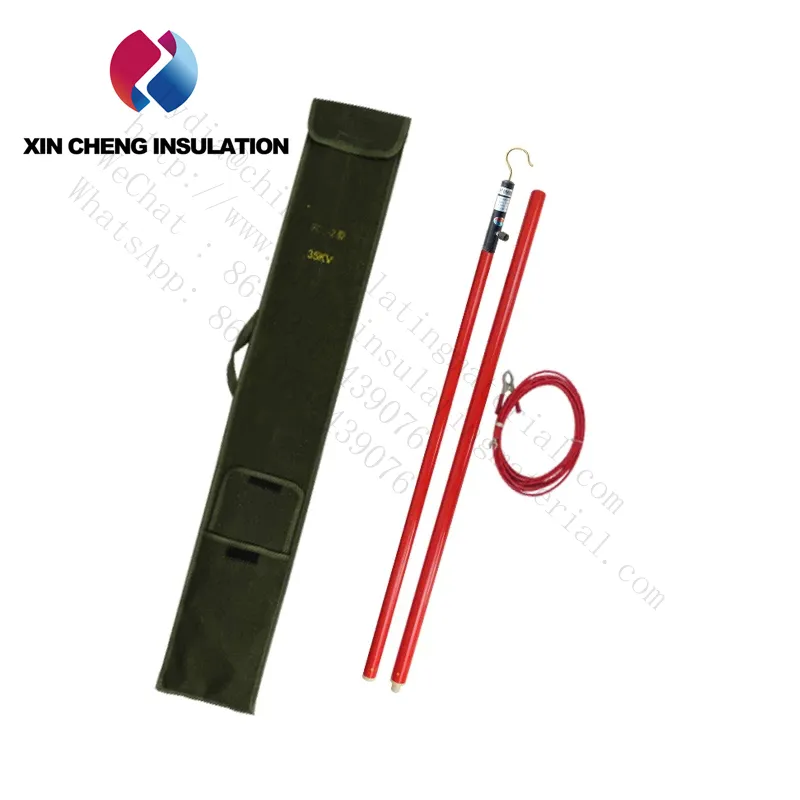

Portable telescopic rod model is easy to use in the outdoor high voltage test, especially in DC voltage test, to test the charge accumulation, to discharge, to ensure personal safety using the discharge rod discharge, is to ensure that the necessary for each test of the personal safety of the weapon. Portable telescopic rod is easy to carry, convenient, flexible, has the advantages of small volume, light weight, safe and reliable, is a safe tool of high voltage staff lack.
The use of methods
1. pull out the telescopic part of the portable telescopic discharge rod

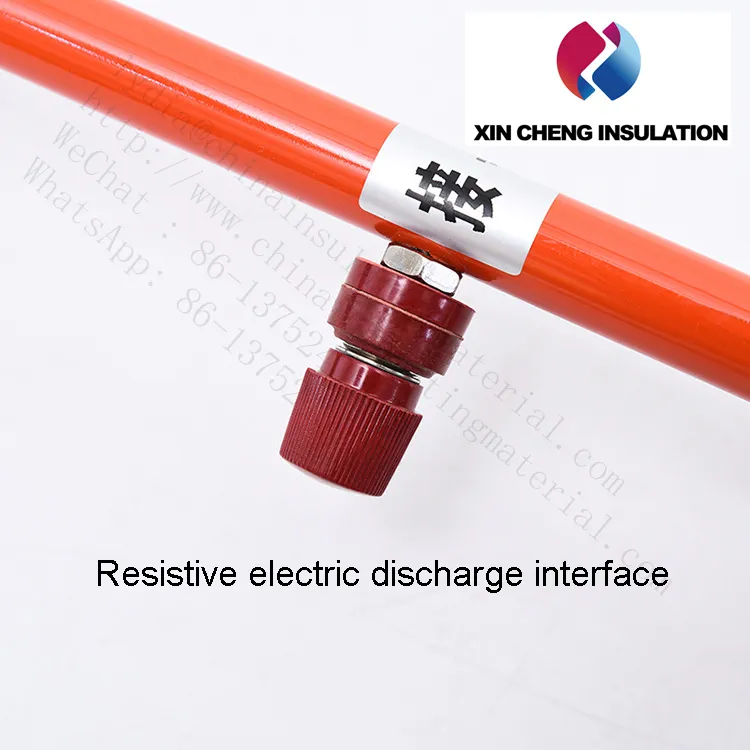

2. the prepared grounding wire plug is inserted into the socket of the head end of the discharge rod, and the other end of the ground wire is connected with the earth, and the grounding is reliable
3. discharge should be completed after the test, the DC generator control box booster knob back to zero, at this time can observe the control box of the voltmeter voltage drop to 15KV ~ 20KV or so, can discharge

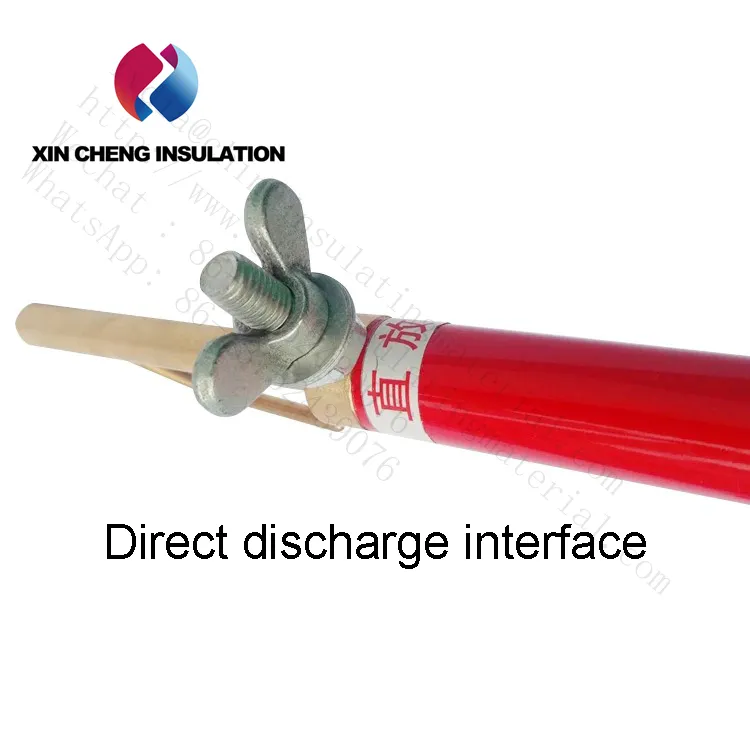

The 4. discharge should be the first to use the metal pointed front rod, go slowly on into disconnected power supply test samples. At this time the discharge rod release electricity is after discharge resistance of discharge. Then the discharge rod on the hook to hook the sample, second electricity.
Matters needing attention
1. of the sample capacitor discharge, should be in after the test, disconnect the power after the test, you should wait for a period of time, the charge on the cylinder and the sample times by itself on the self discharge. This can be observed on the control box of the voltage meter voltage the gradual decline in the fall, when voltage meter down to a lower voltage, usually in 5Kv ~ 15Kv, available discharge rod to gradually move to the sample nearby. First through the air gap free discharge, then you can hear a hissing sound, when no sound, with a tip to touch the discharge rod test, finally test direct grounding discharge.
The magnitude of the accumulated charge of the 2. large capacitance specimens is proportional to the size of the sample capacitor and the applied voltage, and is proportional to the time
3. after a few kilometers above the high voltage cable test, the discharge time is generally very long, and need to repeatedly discharge. Resistance capacity is large, need to order a large capacity of the discharge rod
4. is strictly prohibited without open test power to discharge the sample with the discharge rod.
5. strictly prohibit the use of foot and heavy extrusion rod, bending, breaking the discharge rod is strictly prohibited
6. prohibit the discharge rod damp, affect the insulation strength, should be placed in the dry place
High voltage ground wire classification
(1) high-voltage ground wire in accordance with the use of the environment can be divided into: indoor busbar grounding line and outdoor line-type ground wire .
(2) high-voltage ground wire in accordance with the voltage level can be divided into: 10KV ground wire, 35KV high voltage ground wire, 110KV grounding line, 220KV high-voltage ground wire, 500KV high-voltage ground wire
(3) According to the connection mode of FRP insulating rod, it can be divided into Connection straight type and Telescopic type
Resistance requirements:
Features
1.FRP Rods can be used for KV test level
2.Special pultruded fiber glass Rods are used for proper insulation and long life
3.cable Dismentable, Additional lengths are also available
4.customized cable length Earthing lead with proper clamps
5.Non-Inductive Resistor to drain the high voltage smoothly which enables the pitting on the test piece and corona discharge

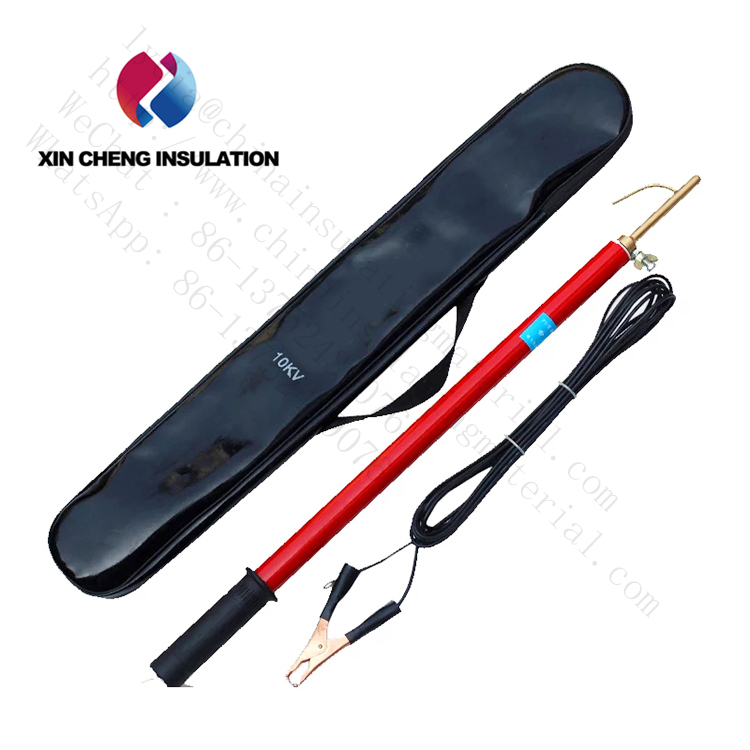

6.Waterproof bag is provided
7.Very light in weight and workable in all weather conditions .
8. No need any working power supply, small volume, light weight for portable.
9.with special HV resistor, resistance is up to 1500MΩ,safe and reliable.
10.Corrosion and abrasion resistant
11.Dimensionally precise
12.Highly effective
Our Services
From the date of purchase our instrument, the warranty time is 36 months. This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
FAQ
How long is your products warranty ?
A: The warranty period of our products is 36 months.
2 How about inspection?
A: We have the whole inspection system from raw material to end products include temperature test,strength test and so on.
3 What do you have for certificate?
A: Our products are passed through IEC60947and IEC60269standarded.
4 What is payment terms?
A: T.T, Western Union and L/C is acceptable.
5 What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement.
We also have the sales team to offer good service from pre-sale to after-sale.
For other related products, please contact us:
1) Fiberglass Earthing Rod series products;
2) Compact substation insulation operation rod;
3) Extension high-voltage operation rod (brake pull-off rod);
4) Ultraportable Height Finder Rod(range finder ruler)
5) High-pressured electroscope series products;
6) High voltage signal indicator series products;
7) Security earth wire series products;
Packaging & Delivery
Packaging Details: Suitable packing for export: Cartons+ Wooden cases+ Pallets+ Wrapping Film
Port: Qingdao/Tianjin/Shanghai/Shenzhen
Please Contact Us
Miss: lydia
Mob: 86-13752439076 Fax: 86-22-60863016
http://chinainsulation.en.made-in-china.com
Place of Origin: China Brand Name: XINCHENG
Product name: discharge rod Type: Extension or telescopic/ Connection type
Function: discharge Material of rod: Epoxy resin rod
Keyword: High Voltage Discharge Rod Material of cable: copper
Cross-section area of cable: 16mm2 ,25mm2 ,35mm2 ,50mm2 ,70mm2 ,95mm2 ,120mm2
Material of clamp: aluminum or copper as request.
Discharge rod extension size: 2- 5 sections or as request Stretch length: 900mm-- 6000mm or as request
Voltage grade: 3kv . 6-10kv . 10kv . 30kv . 35 kv . 110kv . 140kv. 220kv . 330kv . 500kv
Voltage level: different level due to requirements External diameter: 25-40mm as for different type
Condition: Underground Installation: vertical type, horizontal
Impedance: 6.6-25MΩ, different as different type product. Strength: >=600N/mm2
Color: Red, Green, yellow or Customized. Warranty: 3 Years
OEM: available. other voltage of the discharge rod can be customized, the size and impedance of different voltage levels of discharge rod are different.
Certificate: ISO9001:2008 ,IEC60947and IEC60269standarded. HS Code: 9031809090
Discharging time: tens of seconds
Product Description
Insulated Fiberglass Hot Stick Cutout Fuse Surge Arrester Hv Telescopic Insulation Operating Rod
Non Linear Carbon Discharge Resistor Type Discharge Rods are used to discharge dead system having limited fault levels and also to discharge the static & induced charges in the dead system or equipment, particularly in transmission lines, cables, transformers, reactors, large bus bar systems, switch-gears etc. The earthing lead is made up of special highly flexible braided copper cable with transparent sheath. Copper Hook and copper rod & Earth End Clamp of special alloy are provided.
Composition: discharge rod + single-phase ground wire + grounding clamp.
Uses:
The high voltage discharge rod can be usde for on-site high voltage test, especially in DC withstand voltage test, it should carry out a ground discharge for the accumulated charge on tested objects to ensure personal safety.
Portable telescopic rod model is easy to use in the outdoor high voltage test, especially in DC voltage test, to test the charge accumulation, to discharge, to ensure personal safety using the discharge rod discharge, is to ensure that the necessary for each test of the personal safety of the weapon. Portable telescopic rod is easy to carry, convenient, flexible, has the advantages of small volume, light weight, safe and reliable, is a safe tool of high voltage staff lack.
The use of methods
1. pull out the telescopic part of the portable telescopic discharge rod
2. the prepared grounding wire plug is inserted into the socket of the head end of the discharge rod, and the other end of the ground wire is connected with the earth, and the grounding is reliable
3. discharge should be completed after the test, the DC generator control box booster knob back to zero, at this time can observe the control box of the voltmeter voltage drop to 15KV ~ 20KV or so, can discharge
The 4. discharge should be the first to use the metal pointed front rod, go slowly on into disconnected power supply test samples. At this time the discharge rod release electricity is after discharge resistance of discharge. Then the discharge rod on the hook to hook the sample, second electricity.
Matters needing attention
1. of the sample capacitor discharge, should be in after the test, disconnect the power after the test, you should wait for a period of time, the charge on the cylinder and the sample times by itself on the self discharge. This can be observed on the control box of the voltage meter voltage the gradual decline in the fall, when voltage meter down to a lower voltage, usually in 5Kv ~ 15Kv, available discharge rod to gradually move to the sample nearby. First through the air gap free discharge, then you can hear a hissing sound, when no sound, with a tip to touch the discharge rod test, finally test direct grounding discharge.
The magnitude of the accumulated charge of the 2. large capacitance specimens is proportional to the size of the sample capacitor and the applied voltage, and is proportional to the time
3. after a few kilometers above the high voltage cable test, the discharge time is generally very long, and need to repeatedly discharge. Resistance capacity is large, need to order a large capacity of the discharge rod
4. is strictly prohibited without open test power to discharge the sample with the discharge rod.
5. strictly prohibit the use of foot and heavy extrusion rod, bending, breaking the discharge rod is strictly prohibited
6. prohibit the discharge rod damp, affect the insulation strength, should be placed in the dry place
High voltage ground wire classification
(1) high-voltage ground wire in accordance with the use of the environment can be divided into: indoor busbar grounding line and outdoor line-type ground wire .
(2) high-voltage ground wire in accordance with the voltage level can be divided into: 10KV ground wire, 35KV high voltage ground wire, 110KV grounding line, 220KV high-voltage ground wire, 500KV high-voltage ground wire
(3) According to the connection mode of FRP insulating rod, it can be divided into Connection straight type and Telescopic type
| Connection straight type Earthing Rod (10 to 500 KV) | |||||
| Voltage grade | Section | Rod Length mm | Diameter of the rod in hand mm | cable mm | grounding clamp |
| 10KV | 2 | 1300 | 35 | 16/25 | Single / double hole |
| 35KV | 2 | 1700 | 35 | 16/25 | Single / double hole |
| 110KV | 2 | 2400 | 35 | 16/25 | Single / double hole |
| 220KV | 3 | 3400 | 35 | 25/35 | Single / double hole |
| 500KV | 4-5 | 6000 | 40 | 35/50 | Single / double hole |
| Remark: the cable length customized, Clamp is aluminum or copper as request | |||||
| Telescopic type Earthing Rod (10 to 500 KV) | |||||
| Voltage System | Section | Rod shrinkage Length MM | Rod Stretch Length MM | Impedance MΩ | grounding clamp |
| 6KV | 2 | 650 | 1000 | 6.6 | Single / double hole |
| 10KV | 2 | 650 | 1020 | 6.6 | Single / double hole |
| 35KV | 3 | 650 | 1500 | 8.8 | Single / double hole |
| 110KV | 3 | 810 | 2000 | 16 | Single / double hole |
| 220KV | 3 | 1150 | 3000 | 18 | Single / double hole |
| 500KV | 5 | 1250 | 6000 | 25 | Single / double hole |
| Remark: the cable length customized. The diameter of the top rod is 20mm | |||||
Resistance requirements:
| Model | 16mm2 | 25mm2 | 35mm2 | 50mm2 | 70mm2 | 95mm2 | 120mm2 |
| Resistance | 1.24mΩ | 0.79mΩ | 0.56mΩ | 0.40mΩ | 0.28mΩ | 0.21mΩ | 0.16mΩ |
Features
1.FRP Rods can be used for KV test level
2.Special pultruded fiber glass Rods are used for proper insulation and long life
3.cable Dismentable, Additional lengths are also available
4.customized cable length Earthing lead with proper clamps
5.Non-Inductive Resistor to drain the high voltage smoothly which enables the pitting on the test piece and corona discharge
6.Waterproof bag is provided
7.Very light in weight and workable in all weather conditions .
8. No need any working power supply, small volume, light weight for portable.
9.with special HV resistor, resistance is up to 1500MΩ,safe and reliable.
10.Corrosion and abrasion resistant
11.Dimensionally precise
12.Highly effective
Our Services
From the date of purchase our instrument, the warranty time is 36 months. This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
FAQ
How long is your products warranty ?
A: The warranty period of our products is 36 months.
2 How about inspection?
A: We have the whole inspection system from raw material to end products include temperature test,strength test and so on.
3 What do you have for certificate?
A: Our products are passed through IEC60947and IEC60269standarded.
4 What is payment terms?
A: T.T, Western Union and L/C is acceptable.
5 What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement.
We also have the sales team to offer good service from pre-sale to after-sale.
For other related products, please contact us:
1) Fiberglass Earthing Rod series products;
2) Compact substation insulation operation rod;
3) Extension high-voltage operation rod (brake pull-off rod);
4) Ultraportable Height Finder Rod(range finder ruler)
5) High-pressured electroscope series products;
6) High voltage signal indicator series products;
7) Security earth wire series products;
Packaging & Delivery
Packaging Details: Suitable packing for export: Cartons+ Wooden cases+ Pallets+ Wrapping Film
Port: Qingdao/Tianjin/Shanghai/Shenzhen
