Wholesale Industrial Moulded Case Circuit Breaker
Moulded Case Circuit BreakerApplication and range of applicationOur MCCB uses the international advanced design, one of the technique of manufacture developement,development new circuit breakers, Its fixed isolation voltage is 690V, is suitable in exchanges 50......
Send Inquiry
Product Description
Moulded Case Circuit Breaker
Application and range of application
Our MCCB uses the international advanced design, one of the technique of manufacture developement,development new circuit breakers, Its fixed isolation voltage is 690V, is suitable in exchanges 50Hz, fixed working volage 400V and below. Rated current to 800A circuit as frequent changeover gun less frequent motor starter. The Circuit breaker with overload, short circuit protection device, and less voltage protection circuit and power equipment are not damaged.
Description
1.Suitable for industrial or commercial power and lighting with AC 50/60Hz, reated working voltage up to AC600V/DC 250V, rated current up to 1200A
2.The characters of stable and reliable function, beatiful appearance, small size and long life.
3. Advanced processing technology.
Specidications:

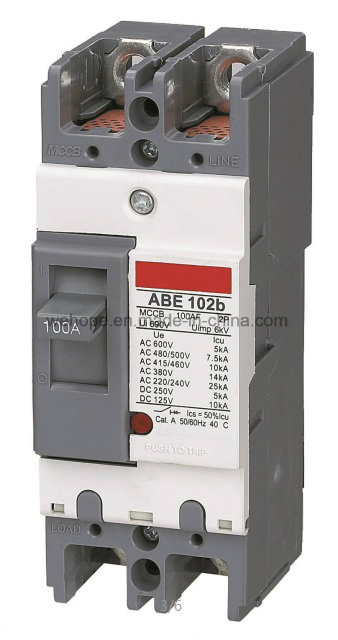

1.Product name:MCCB Moulded Case Circuit Breaker
2.Type: HP 102b
3.Rated current:60-100A
4.Number of pole:2P
Main performance indicators
Application and range of application
Our MCCB uses the international advanced design, one of the technique of manufacture developement,development new circuit breakers, Its fixed isolation voltage is 690V, is suitable in exchanges 50Hz, fixed working volage 400V and below. Rated current to 800A circuit as frequent changeover gun less frequent motor starter. The Circuit breaker with overload, short circuit protection device, and less voltage protection circuit and power equipment are not damaged.
Description
1.Suitable for industrial or commercial power and lighting with AC 50/60Hz, reated working voltage up to AC600V/DC 250V, rated current up to 1200A
2.The characters of stable and reliable function, beatiful appearance, small size and long life.
3. Advanced processing technology.
Specidications:
1.Product name:MCCB Moulded Case Circuit Breaker
2.Type: HP 102b
3.Rated current:60-100A
4.Number of pole:2P
Main performance indicators
| Type | Number of poles | Rated current in(A) | Short-circuit interrupting capacity lcu/lcs | |||||||
| AC | ||||||||||
| 230V | 250V | 380V | 400V | 415V | 460V | 500V | 600V | |||
| HP52b | 2P | 15,20,30,40,50 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP53b | 3P | 15,20,30,40,50 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP54b | 4P | 15,20,30,40,50 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP102b | 2P | 60,75,100 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP103b | 3P | 60,75,100 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP104b | 4P | 60,75,100 | 50/25 | 15/17.5 | 30/15 | 30/15 | 14/13 | 14/7 | 7.5/4 | 7.5/4 |
| HP203b | 3P | 125,150,,175,200,225,250 | 25/13 | 10/5 | 18/10 | 18/10 | 18/10 | 15/7.5 | 7.5/4 | 7.5/4 |
| HP403b | 3P | 250,300,350,400 | 50/25 | 15/17.5 | 30/15 | 30/15 | 35/18 | 35/18 | 25/13 | 22/11 |
