Tnb1l-32 (b) 32A, Mini Safety ELCB
Mini safety breaker NT50 type ELCB/RCCBProduct type: TNB1L-32(b)Standard: IEC/EN 61008-1, GB 16916.1Mini safety breakerWith function:1. Earth Leakage protection(Ground fault protection)Advantage:1.Compact size;2.Easy assemblely;3.Patent design; TNB1L-32 series ELCB/RCCBProduct codeTNB1L-32(b)Protec......
Send Inquiry
Product Description

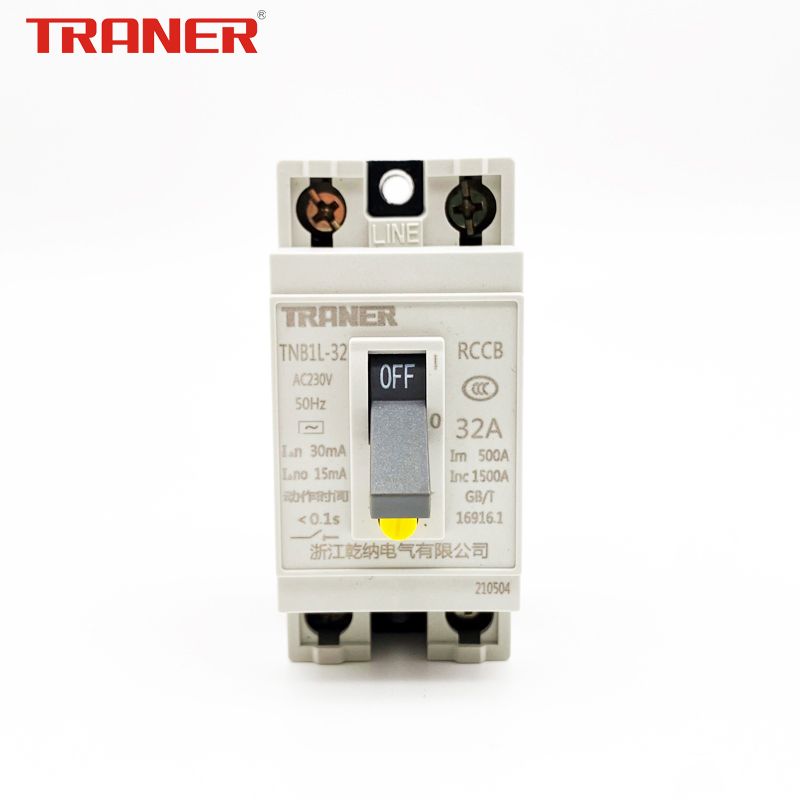

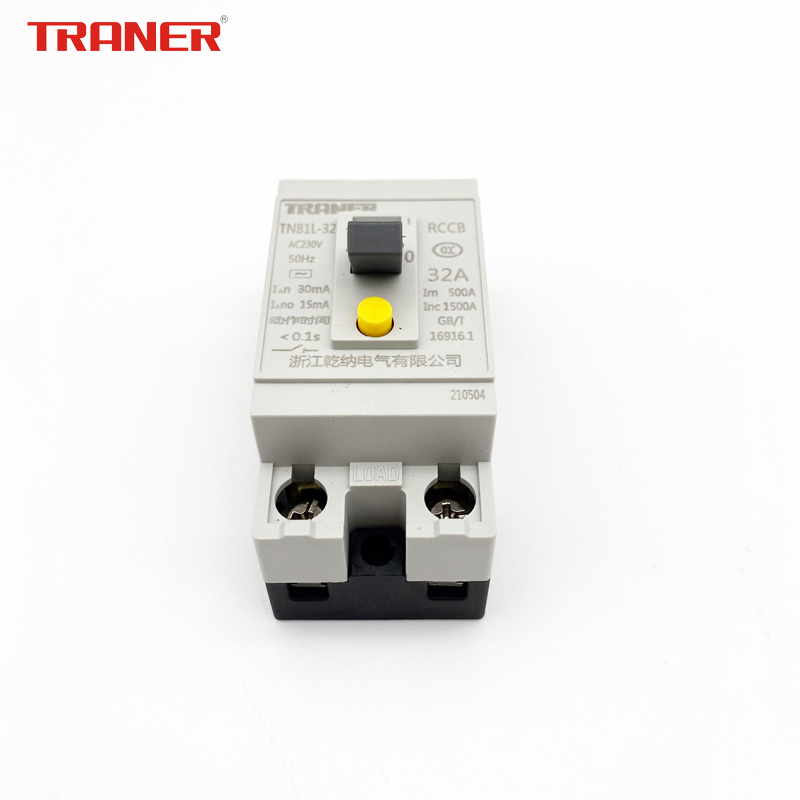

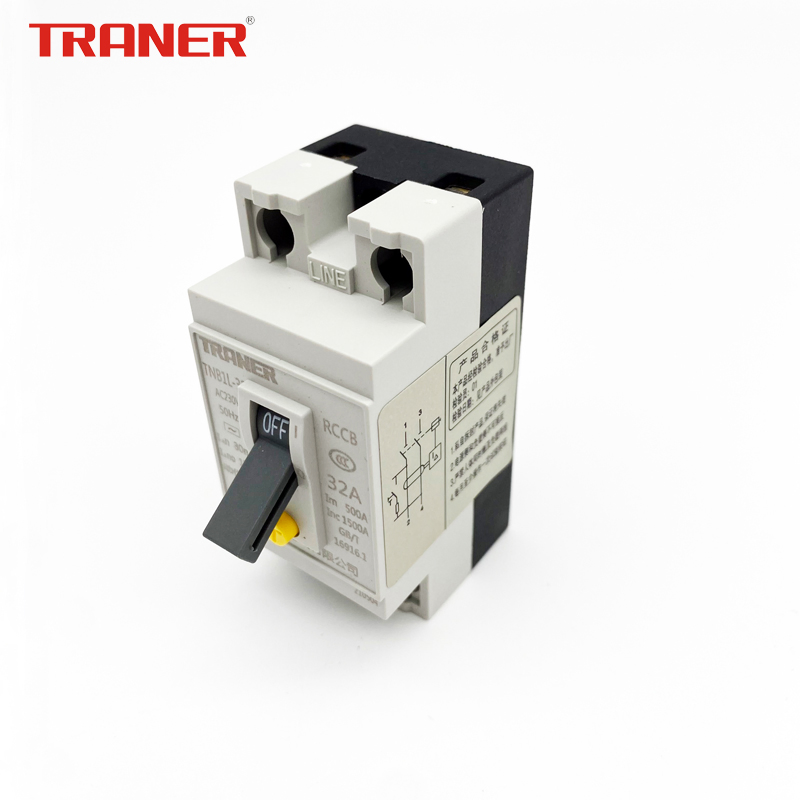

Mini safety breaker NT50 type ELCB/RCCB
Product type: TNB1L-32(b)
Standard: IEC/EN 61008-1, GB 16916.1
Mini safety breaker
With function:
1. Earth Leakage protection(Ground fault protection)
Advantage:
1.Compact size;
2.Easy assemblely;
3.Patent design;

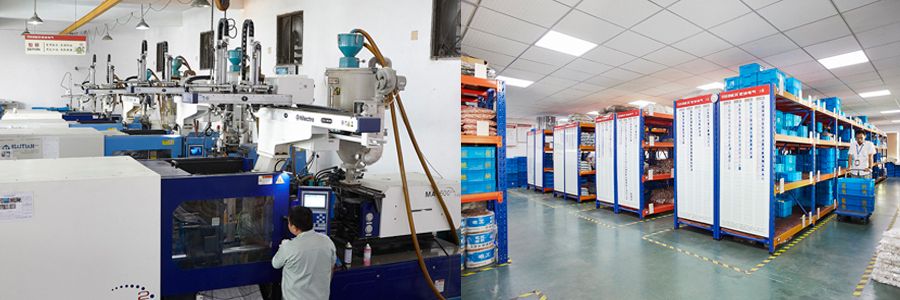

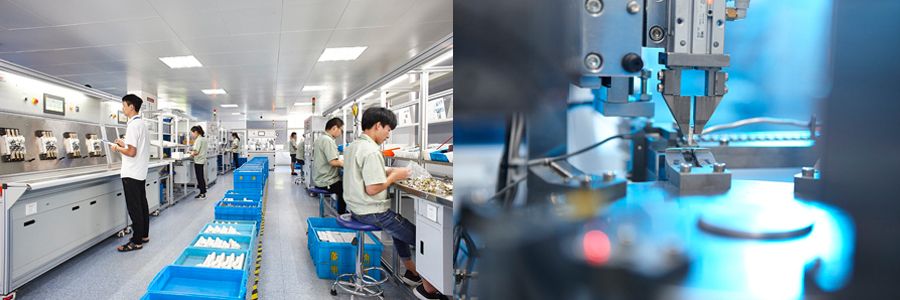

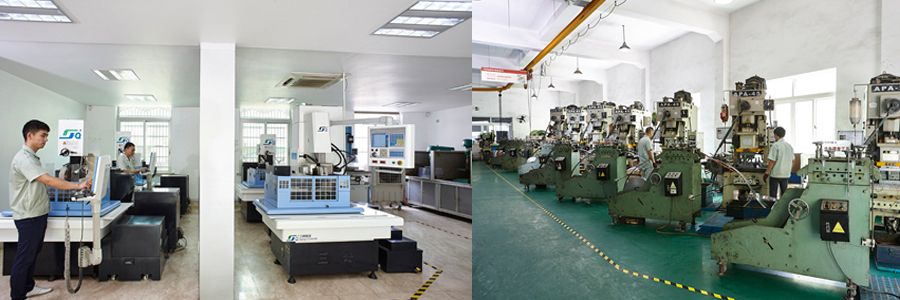

Company show:

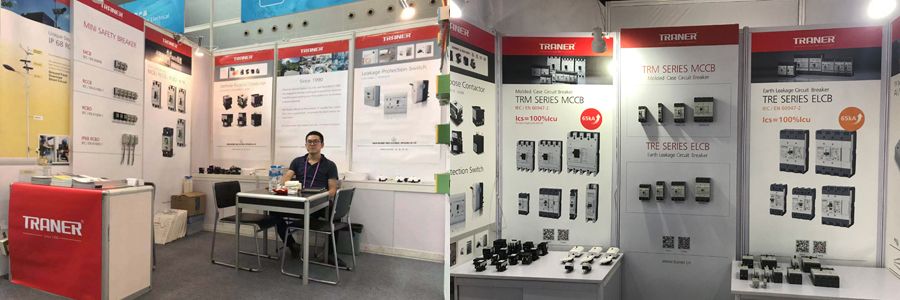

Exhibition:
Product type: TNB1L-32(b)
Standard: IEC/EN 61008-1, GB 16916.1
Mini safety breaker
With function:
1. Earth Leakage protection(Ground fault protection)
Advantage:
1.Compact size;
2.Easy assemblely;
3.Patent design;
| TNB1L-32 series ELCB/RCCB | ||
| Product code | TNB1L-32(b) | |
| Protection | Earth leakage protection(Ground fault protection) | |
| Rated current | 16A, 20A, 25A, 32A | |
| Rated residual current | Operating, IΔn | 15mA, 30mA |
| Non-operating, IΔno | 7.5mA, 15mA | |
| Poles | 2 poles | |
| Rated voltage | 110V AC, 220V AC | |
| Residual current off-time | 0.1s | |
| Standard | IEC/EN 61008-1, GB16916.1 | |
| Approval | CE, CCC | |
| Type of trip | Ground fault | Electronic |
| Rated switch-on breaking capacity, Im | 500 A | |
| Rated limited short circuit current, Inc | 2.5 KA | |
| Endurance | Electrical | 1000 operations |
| Mechanical | 2000 operations | |
| Material of body | Base | Bakelite / Plastic |
| Cover in grey color | Plastic | |
| Cover in black color | Bakelite | |
| Type of operation | AC | |
| Length*Width*Height | 70mm * 32mm * 53mm | |
Exhibition:
