Real Breaking Capacity MCB Miniature Circuit Breaker Approved by BV
TSB3-63 High breaking capacity Miniature Circuit BreakerProduct DescriptionTSB3-63 series has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current......
Send Inquiry
Product Description
TSB3-63 series has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.
| Type | 1P | 2P | 3P | 4P |
| Rating(A) | 6A,10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A | |||
| Voltage(Ue) | 240/415V | 240/415V | 415V | 415V |
| Operating frequency(Hz) | 50/60 | |||
| Rated short-circuit capacity(Icn) as per IEC/EN 60898 | 6.0KA | |||
| Packing quantity | 120 | 6 | 40 | 30 |
| Carton size(mm) | 460x240x175 | |||

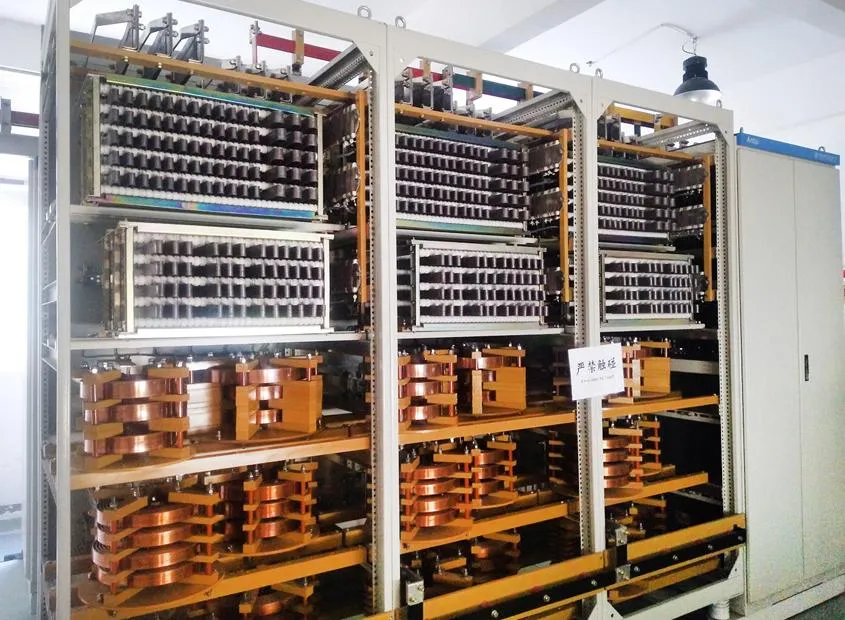

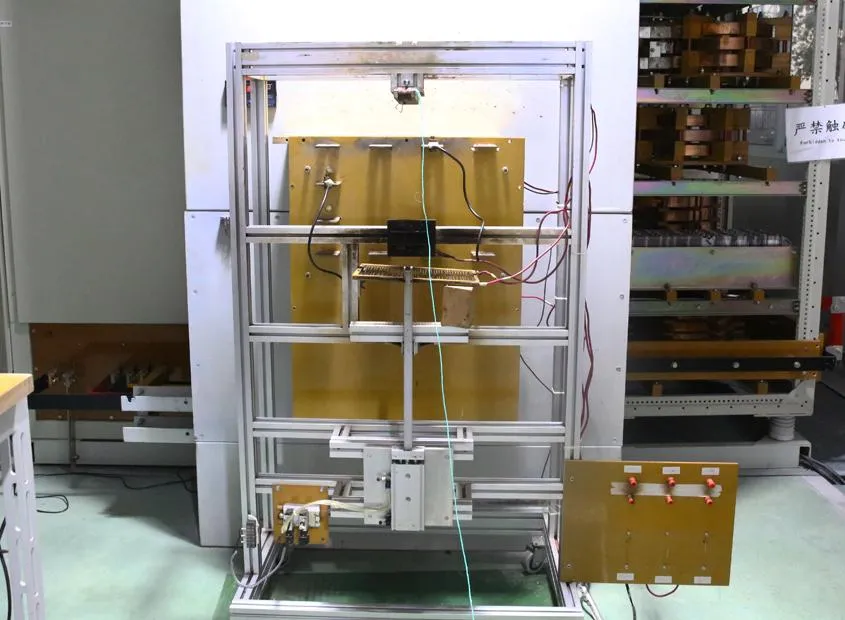

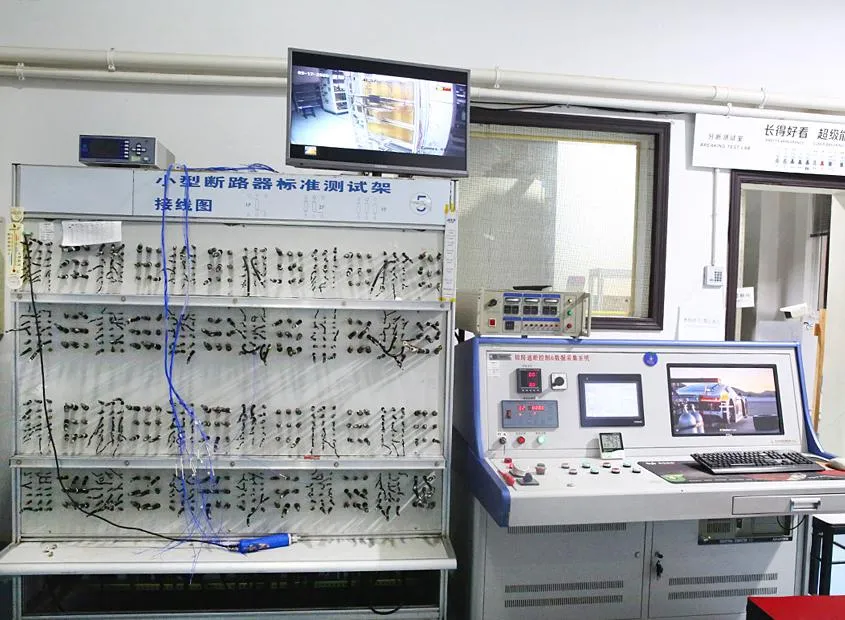

The test results for TOSUN MCB
WHY US?
• 27 years' experience: TOSUN has been producing and exporting electrical products since 1994.
• Clients' benefit first: TOSUN believes in double win
• Reliable quality: Experienced QC team ensures quality of goods of every shipment.
• Reasonable price: The 13,000 m² factory and network of raw material supply enable TOSUN to provide you competitive products.

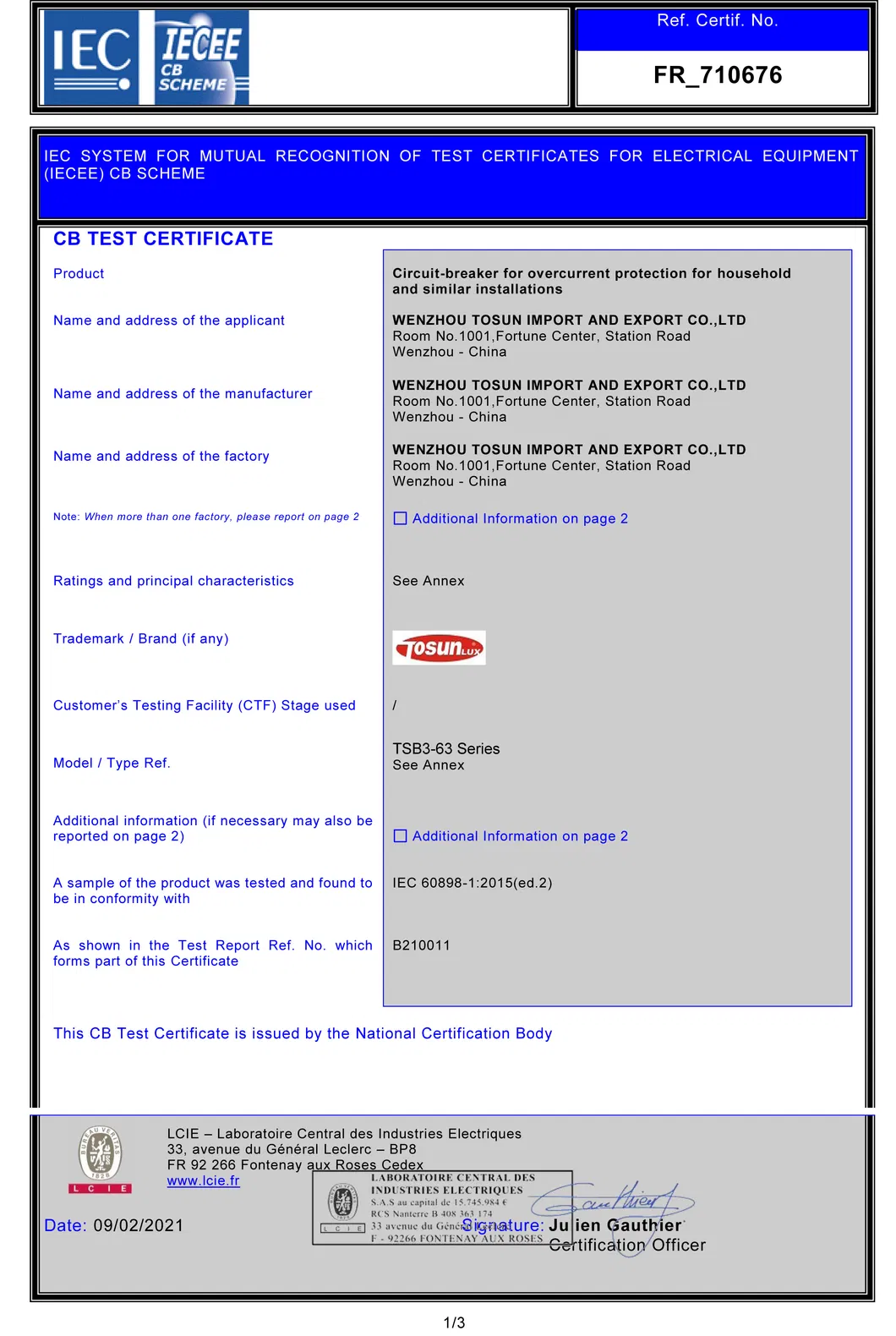

• Certificate: TUV, SEMKO, CE, CB, ROHS, NF
