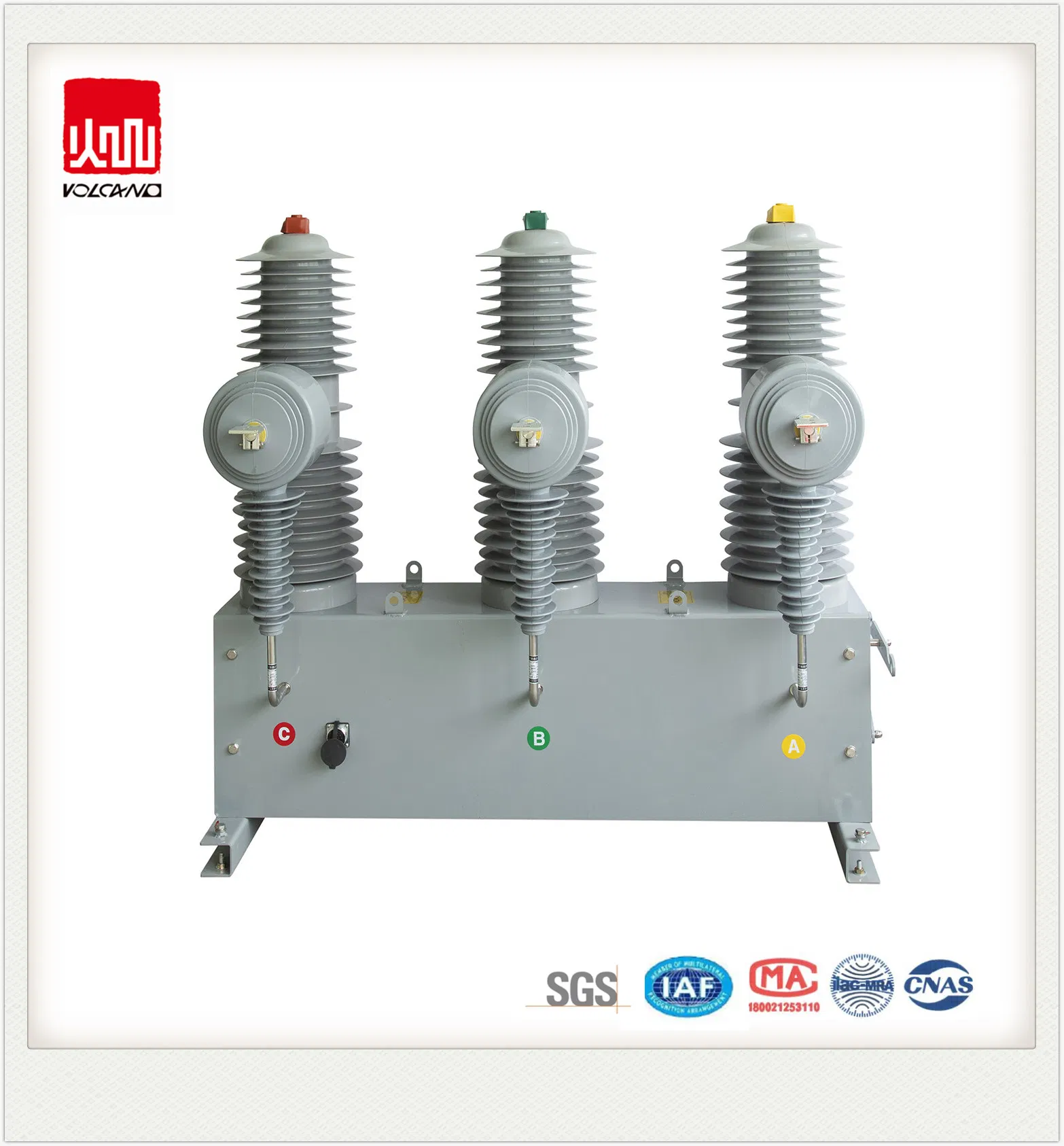

Outdoor Zw32 33kv Vacuum Circuit Breaker
Product descriptionZW32 series ourdoor automatic current recloser, also can be called as automatic current recloser, with rated voltage of 12kv, 24kv or 36kv and AC three phases frequency of 50Hz, is mainly applied to close and break loading current, over loading current and short-circuit current in......
Send Inquiry
Product Description
Product description

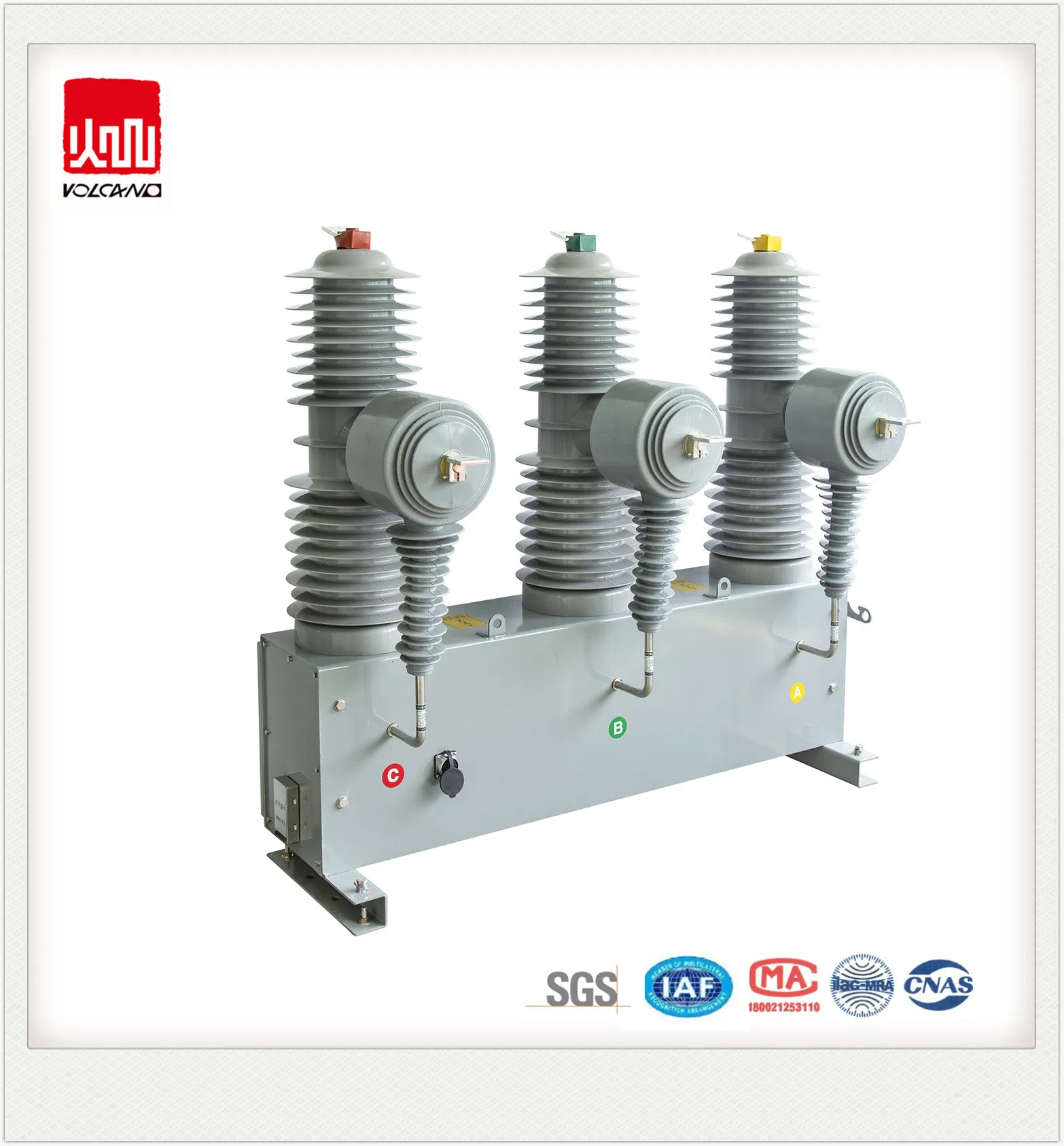

ZW32 series ourdoor automatic current recloser, also can be called as automatic current recloser, with rated voltage of 12kv, 24kv or 36kv and AC three phases frequency of 50Hz, is mainly applied to close and break loading current, over loading current and short-circuit current in electrical power system.
It has two working principal, spring or magnetic models. This ACR can also be manual operated or electrical operated. For electrical operation, it should go with a digital controller and PT, which can realize remote control for power transimission and distribution.
Technical Specifications
Environmental Conditions
1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30 ºC to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Earthquake intensity: not more than 8 degree.
4. Wind pressure:≤700pa
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
Company introduction

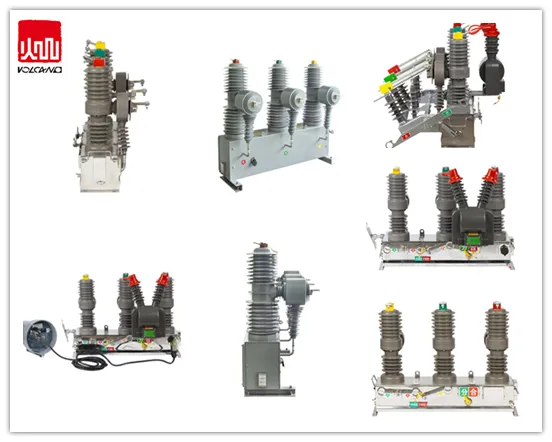

Zhejiang Volcano Electrical is a professional factory for prodcuing 10-40.5kV electrical equipments for power transmission, including all types of indoor&outdoor vacuum circuit breakers, automatic current recloser, SF6&vacuum load break switch, isolating switch, earthing switch, air&gas insulated switchgear, vacuum interrupters, fuse cutouts and lightning arresters.

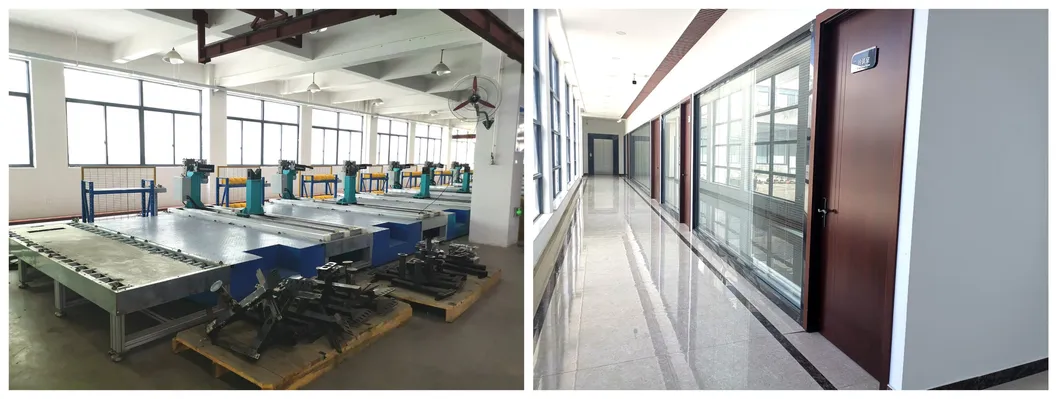

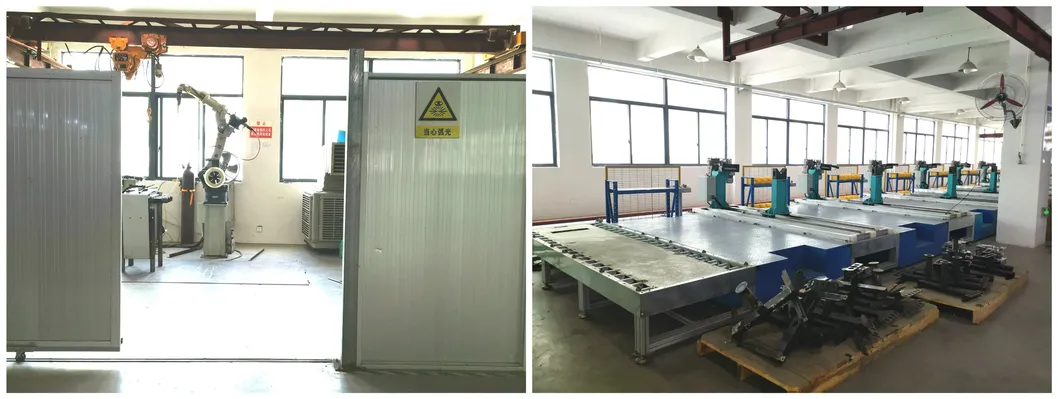

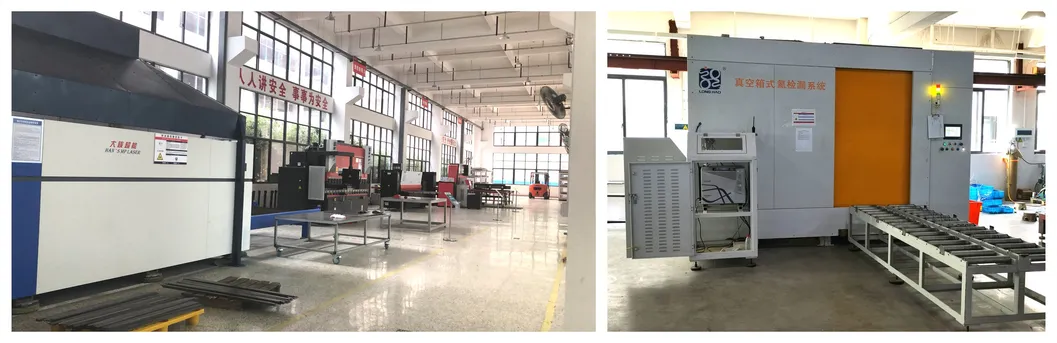

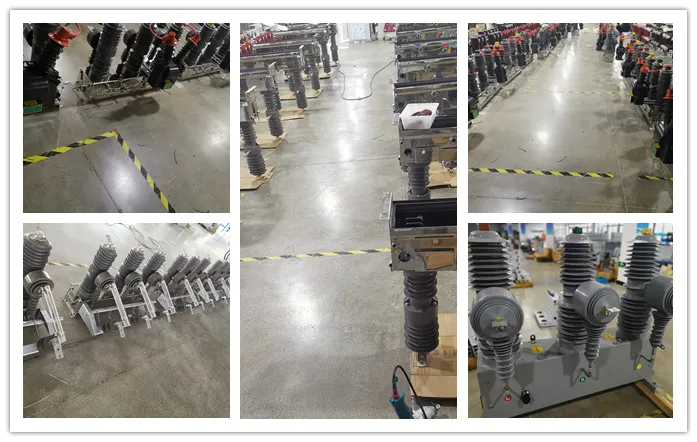

The factory is located in Yueqing, the famous town for all types of low and high voltage electrical parts.It occupies square more than 10000m2, and has developed several international production line. We have made constant efforts to improve product quality and service. To offer best quality with our best service to get a win-win solution is our main principal.
Certification Collection
Our company has get ISO9001, 14001 and 18001 approved. We have passed many type testing for our prodcuts.
Contact
Address: No.211, Weishier Road, Economic Development Zone, Yueqing, Zhejiang, China
ZW32 series ourdoor automatic current recloser, also can be called as automatic current recloser, with rated voltage of 12kv, 24kv or 36kv and AC three phases frequency of 50Hz, is mainly applied to close and break loading current, over loading current and short-circuit current in electrical power system.
It has two working principal, spring or magnetic models. This ACR can also be manual operated or electrical operated. For electrical operation, it should go with a digital controller and PT, which can realize remote control for power transimission and distribution.
Technical Specifications
| No. | Item | Unit | Data |
| 1 | Rated voltage | kV | 36 |
| 2 | Rated Current | A | 630/1250/1600 |
| 3 | Rated Frequency | Hz | 50/60 |
| 4 | Rated short circuit current | kA | 20/25/31.5 |
| 5 | Rated short time withstand current(4s) | kA | 50/63/80 |
| 6 | Rated peak withstand current | kA | 50/63/80 |
| 7 | Rated power frequency withstand voltage | kV | 95 |
| 8 | Rated lightning impluse withstand voltage | kV | 185 |
| 9 | Secondary loop 1 min power frequency withstand voltage | kV | 2 |
Environmental Conditions
1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30 ºC to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Earthquake intensity: not more than 8 degree.
4. Wind pressure:≤700pa
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
Company introduction
Zhejiang Volcano Electrical is a professional factory for prodcuing 10-40.5kV electrical equipments for power transmission, including all types of indoor&outdoor vacuum circuit breakers, automatic current recloser, SF6&vacuum load break switch, isolating switch, earthing switch, air&gas insulated switchgear, vacuum interrupters, fuse cutouts and lightning arresters.
The factory is located in Yueqing, the famous town for all types of low and high voltage electrical parts.It occupies square more than 10000m2, and has developed several international production line. We have made constant efforts to improve product quality and service. To offer best quality with our best service to get a win-win solution is our main principal.
Certification Collection
Our company has get ISO9001, 14001 and 18001 approved. We have passed many type testing for our prodcuts.
Contact
Address: No.211, Weishier Road, Economic Development Zone, Yueqing, Zhejiang, China
