China New Zealand or Australia Single Pole Model 2p 4.5ka 20A RCBO 30mA with SAA

Product Description

Single Pole 4.5ka 16a RCBO 30mA with SAA

Product Description of 16A RCBO:
Provides protection against earth fault/leakage current, short-circuit, overload, and
function of isolation
Provides complementary protection against direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection to household and commercial distribution systems

Technical Data of 16A RCBO:
Standard: IEC61009
Residual current characteristics: AC
Pole No.: 1P+N
Tripping curve: C
Rated short-circuit capacity:4.5kA
Rated current (A): 6,10,16,20,25,32
Rated voltage: 240V AC
Rated frequency: 50/60Hz
Rated residual operating current(mA):30
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
Connection terminal: piliar terminal with clamp
Connection capacity:
Flexible conductor 10mm²
Rigid conductor 16mm²

Rated short-circuit capacity	4.5kA
TYPE	A

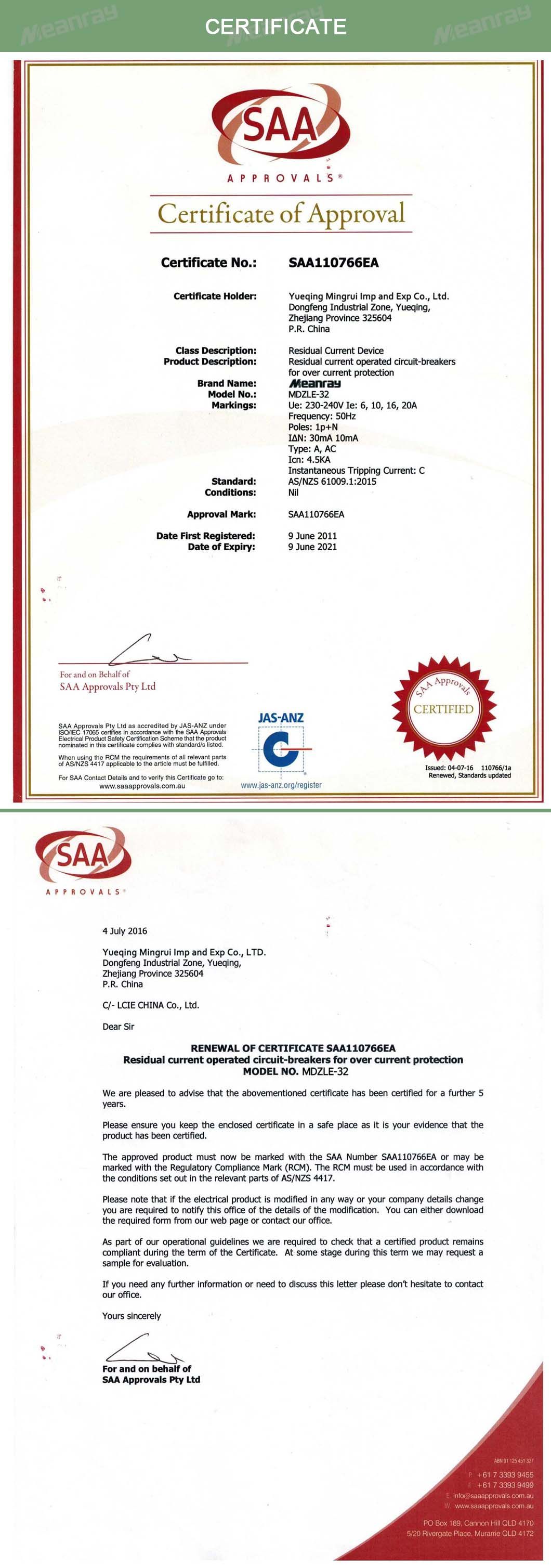

Certificate:

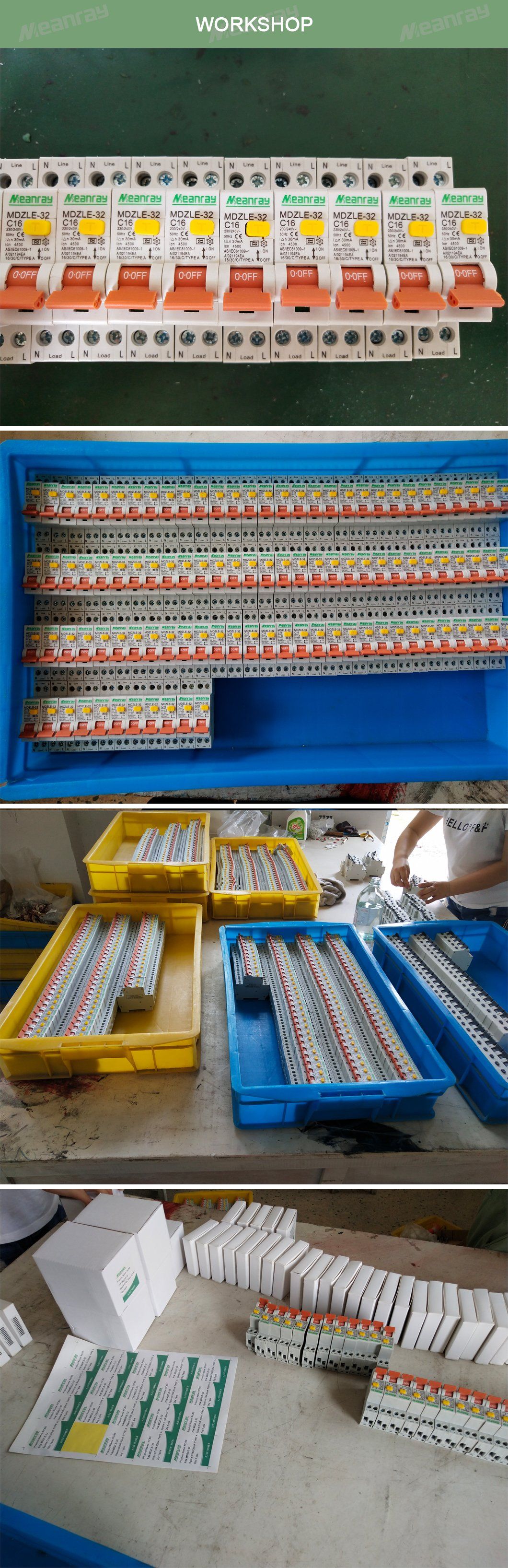

Workshop of RCBO:

Package:

Carton size: 46.5*23*19cm
G.W: 12.4KG
N.W: 11.5KG
100pcs/CTN

New Zealand or Australia Single Pole Model 2p 4.5ka 20A RCBO 30mA with SAA

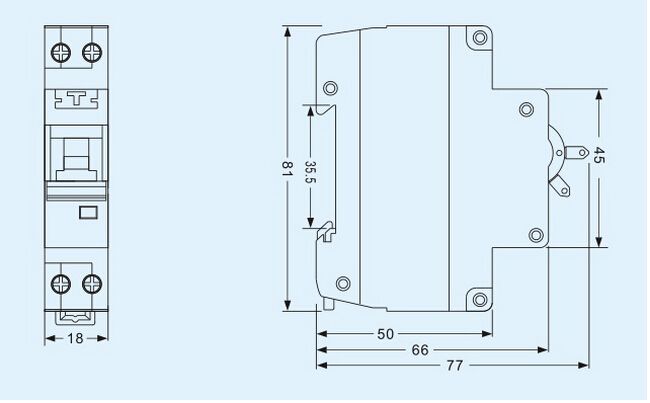

Installation dimensions of 16A RCBO:
New Zealand or Australia Single Pole Model 2p 4.5ka 20A RCBO 30mA with SAA

FAQ of RCBO:

Q : What is your minimum order quantity for whole of your products ?
A: Most of the items no have MOQ requirement, you can even buy 1pc

Q : How about the delivery time ?
A : It depends on your order quantity, normally for large order quantities, shipment within 30days.

Q : How about the package?
A :The carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement. 100pcs/carton

Q : Would you accept OEM ?
A : OEM. totally no problem for us. But it require bigger Qty than normal.

Q : We want to know month capacity.
A : 50000pcs/month

Q : Where is your market?
A : Australia and New Zealand

Q : what kind of certificate you have ?
A : SAA, CE, CB, CCC

Q : If we bought your products, but found quality problem, how to solve?
A : After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
