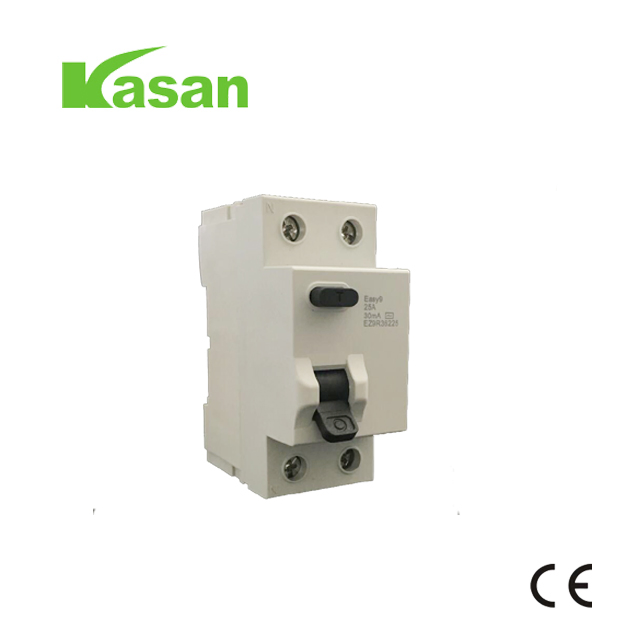

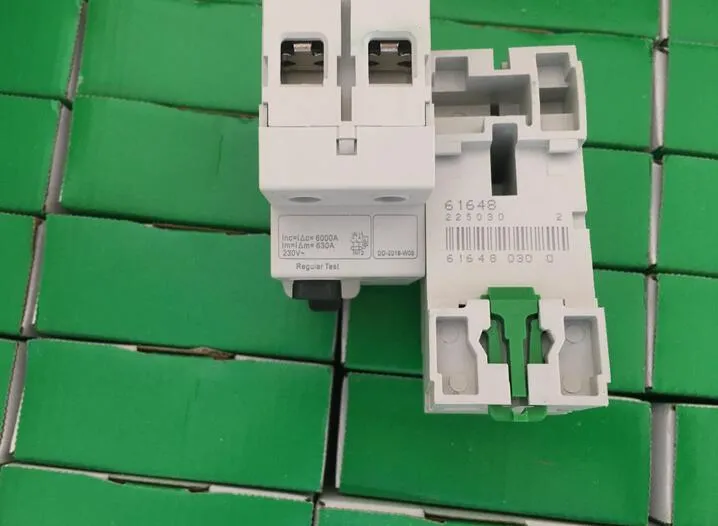

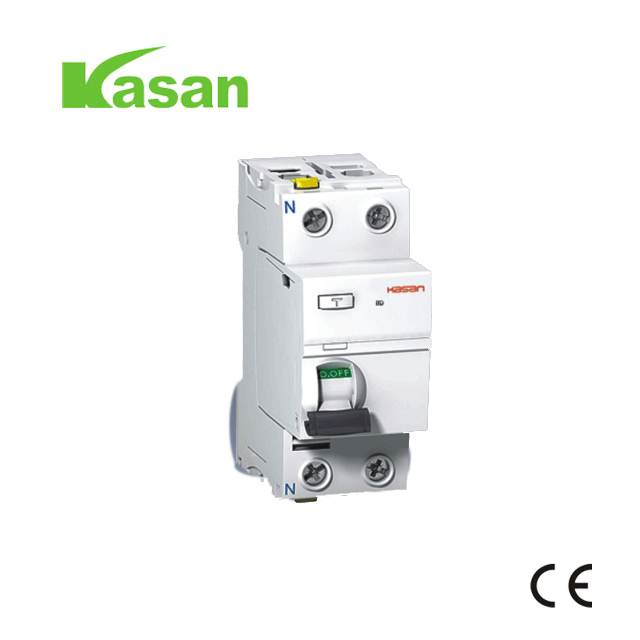

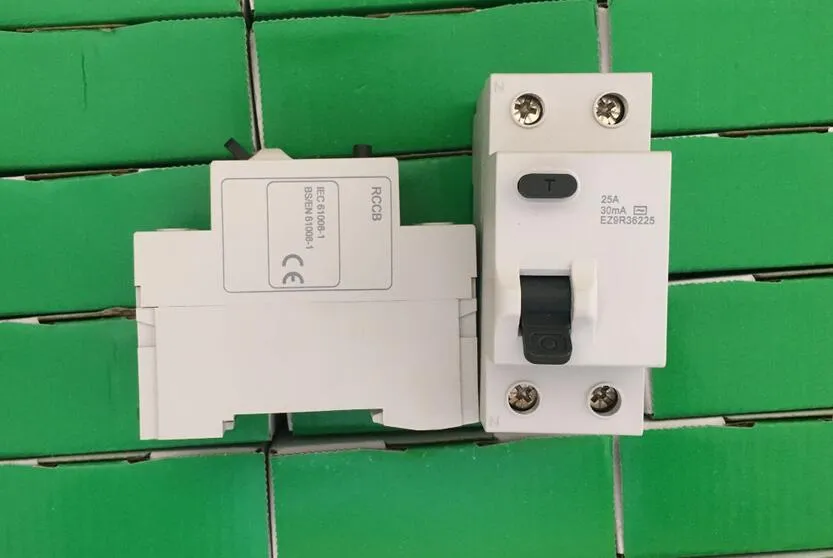

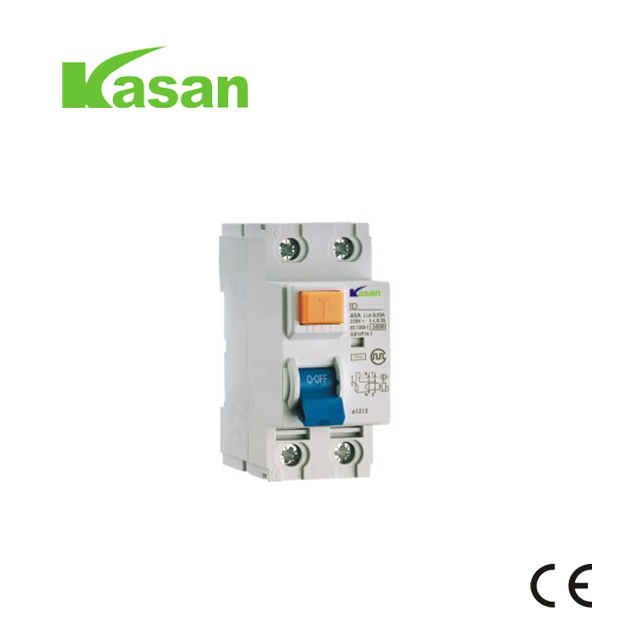

China New Ez Model Easy9 30mA RCCB Residual Current Circuit Breaker

Product Description

High Quality 2p 63A 30mA Magnetic RCCB/ELCB

RCCB is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz,rated voltage 1 phase 230V and 3 phase 400V,rated current up to 63A ,

When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value,the RCD can cut off the power within the time of 0.1s automatically protecting the equipment from the fault resulted by the residual current.
With this function,the RCD can protect the circuit against overload and short circuit or can be used for the unfrequented switch over of the circuit under normal conditions. It conforms to IEC60898 & IEC61009.1.

Type	DZ47LE-63 rccb
Number of poles	1P,2P,3P,4P
Rated Current(In)	1,2,3,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Rated Frequency	50(60)HZ
Curve	B,C,D
Short-circuit breaker capacity(Cn)	6000A
Magnetic releases	B curve: between 3and 5 In C curve: between 5and 10In D curve: between 10 and 14In
Endurance	>4000
Terminal protection	IP20
