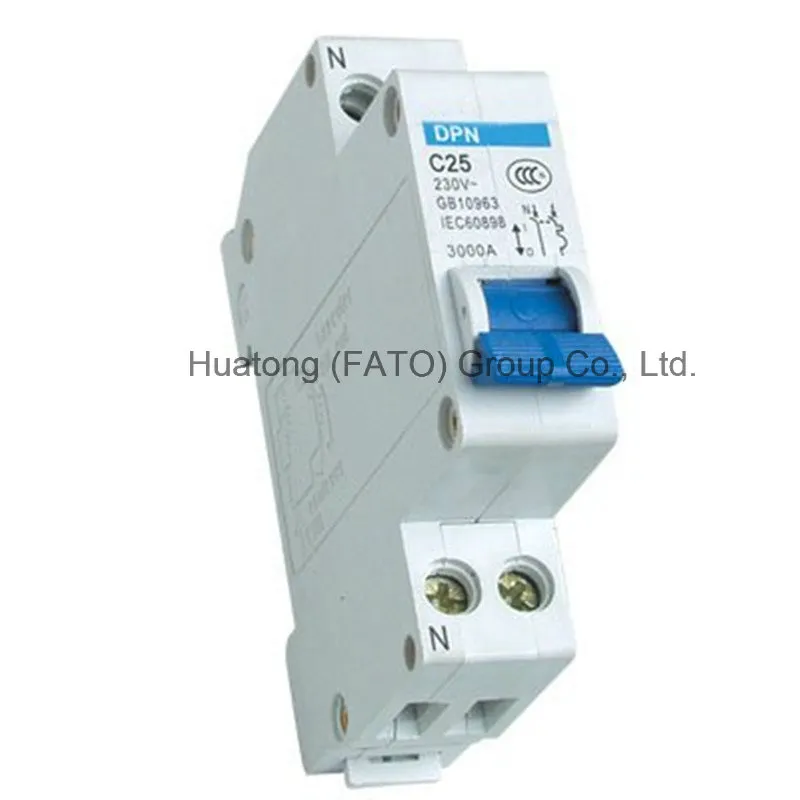

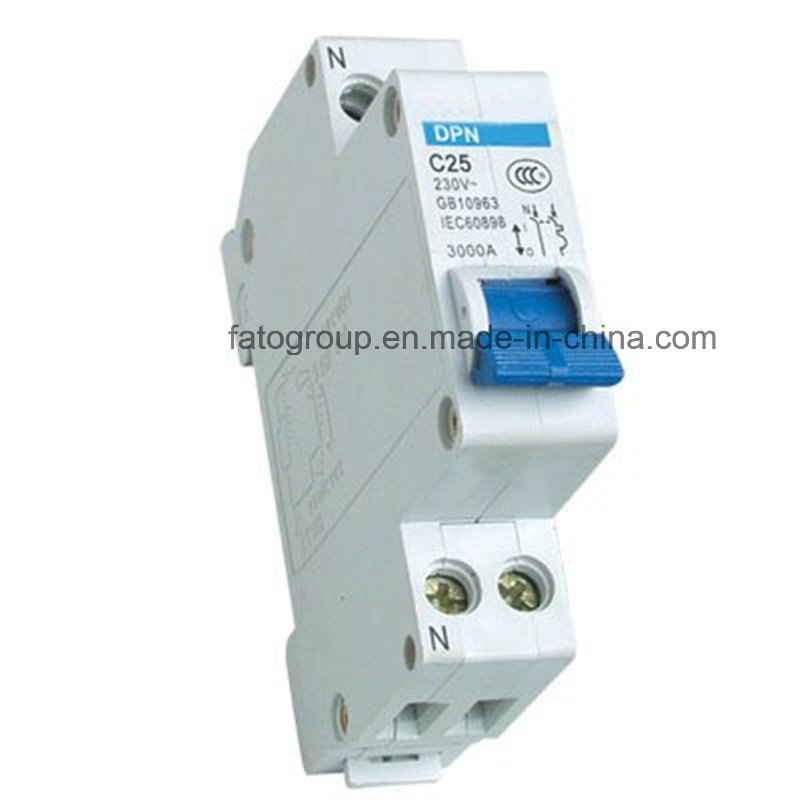

Mini Circuit Breaker (CFDPN)

Product Description

Product Description:
The product, used to protect line conductor and overload, and short-circuit of small size motors, is mainly for protection of circuits with AC 220V and 50Hz/60Hz, and for unfrequented conversion under normal conditions as well. Its action can be up to 2pole with its only one pole volume and can be used as a leakage breaker by assembling with leakage.

Specifications:

Rated voltage	240V/415V
Rated current	2, 4, 6, 10, 16, 25, 32A
Breaking capacity	4500A
Mechanical and electrical life	6000 times
Width pole	P+N=18mm
Accord with standard	IEC898-87 GB10963-89 B. S3871

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..
