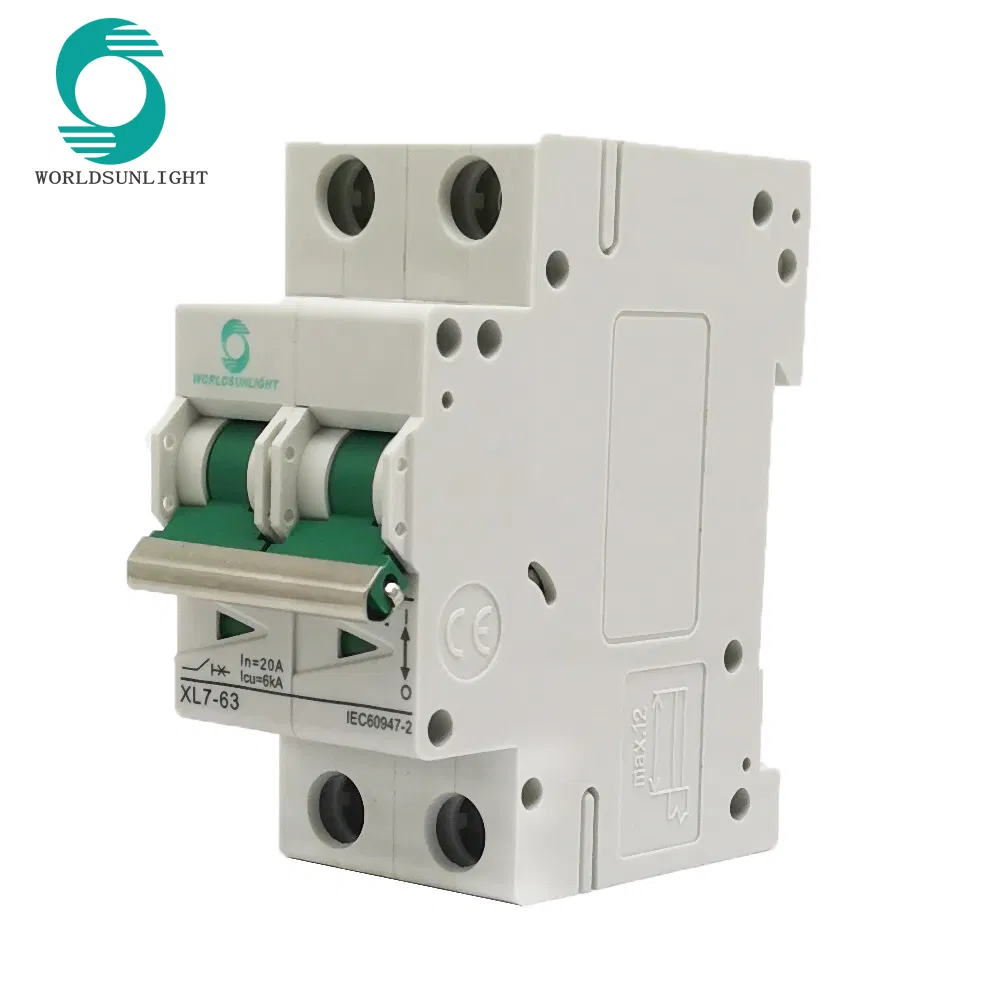

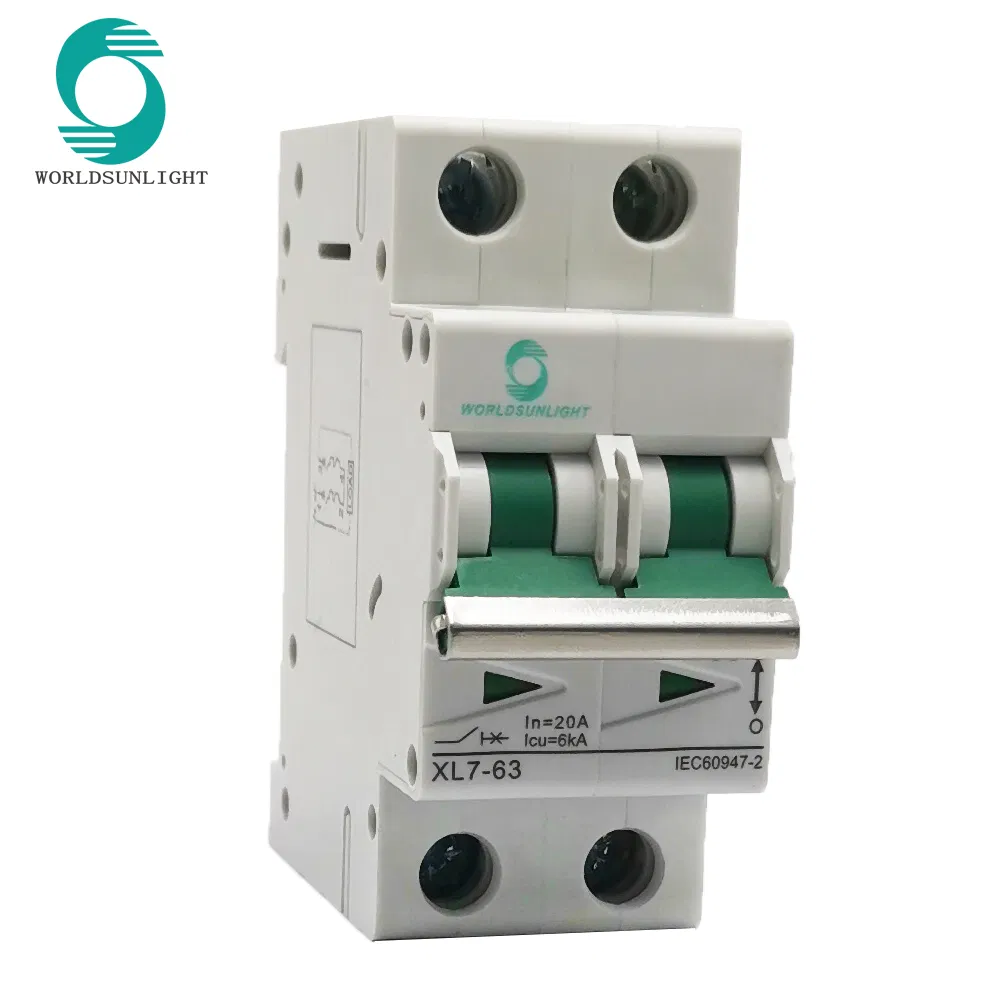

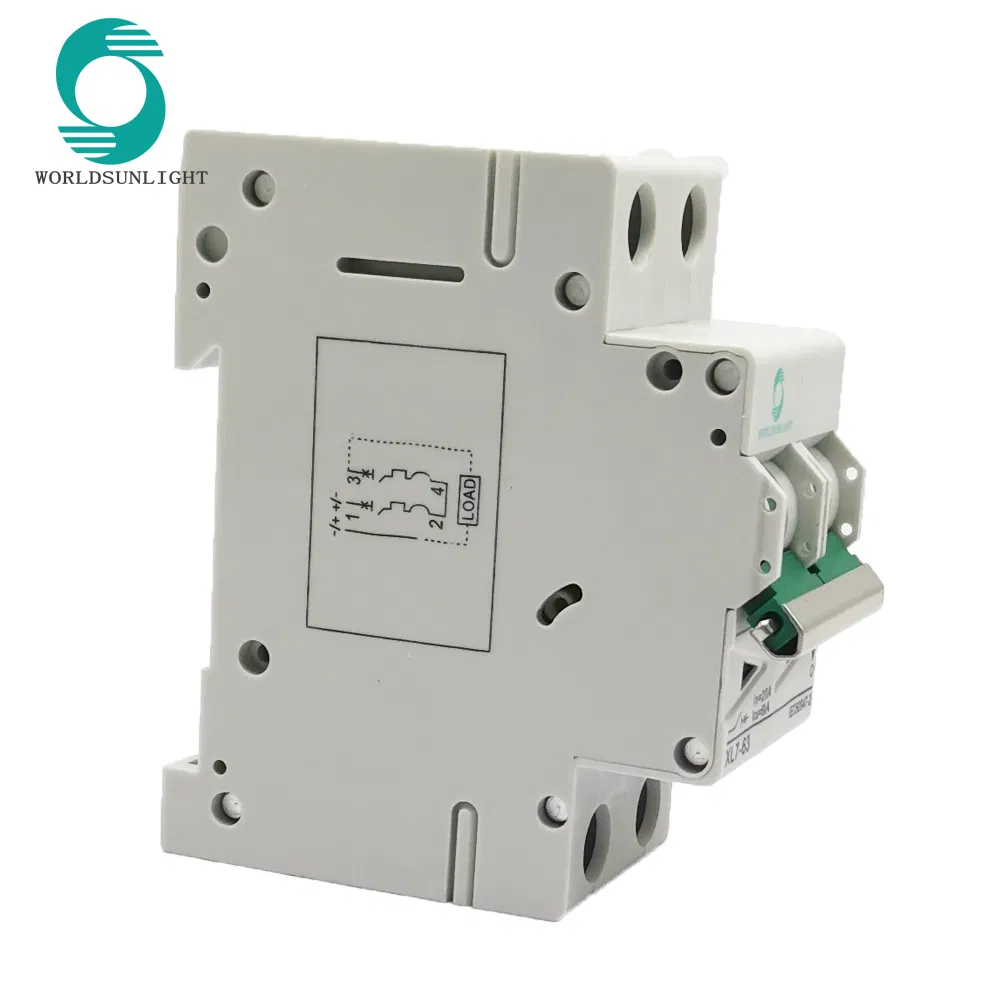

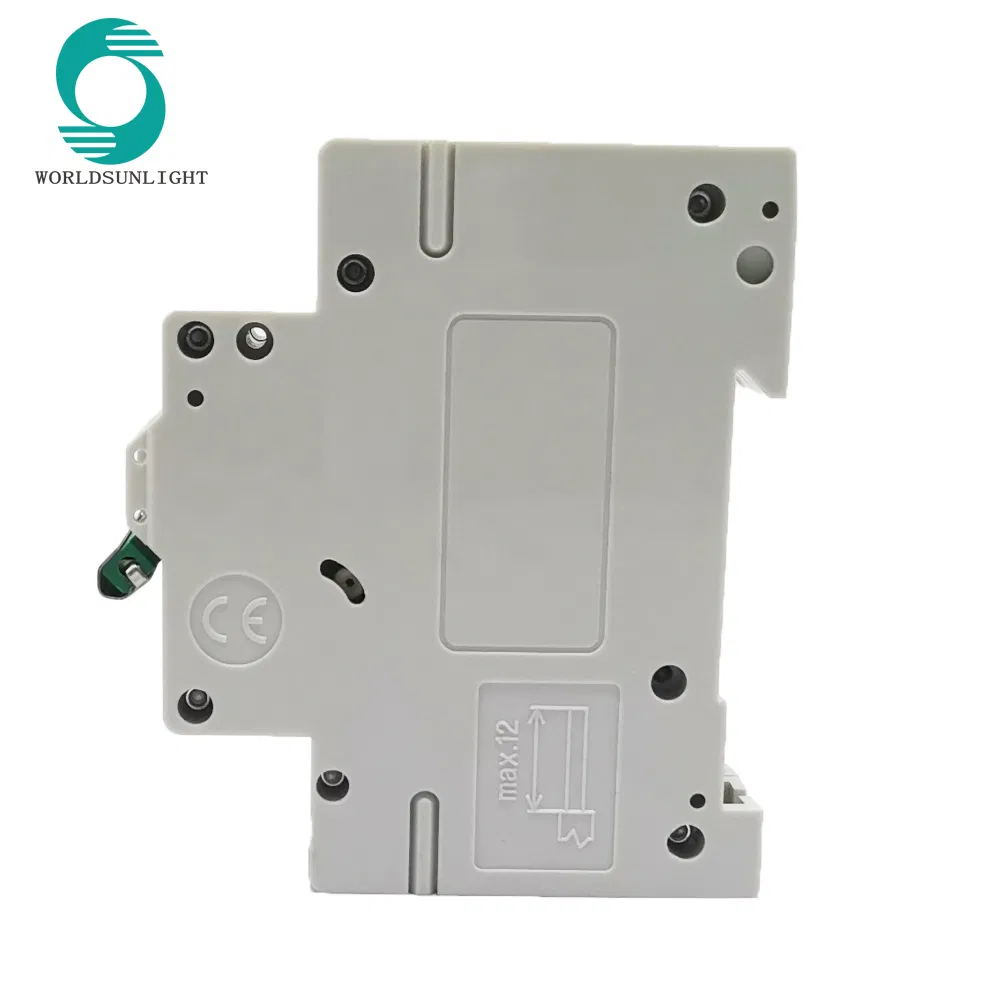

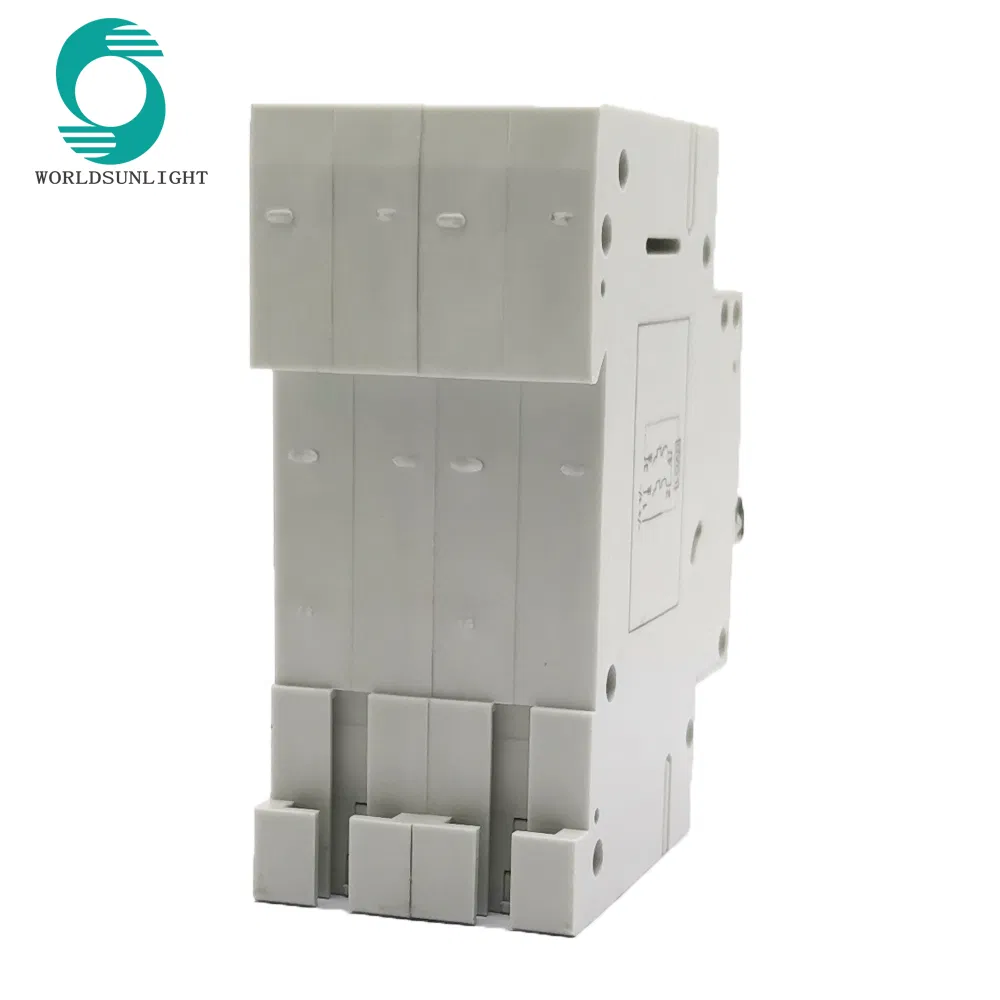

MCB DC 2p 20A 500V Curve C Miniature Circuit Breaker DC Breaker for Solar Panels PV System
PV Circuit Breaker DC MCB (XL7-63) Product Description:1p Dc Mcb Application:XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electri......
Send Inquiry
Product Description
PV Circuit Breaker DC MCB (XL7-63)
Product Description:
1p Dc Mcb Application:
XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
1p Dc Mcb Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
1p Dc Mcb Parameters:
| Item | DC MCB | |||
| Code | XL7-63 | |||
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 250VDC | 500VDC | 800VDC | 1000VDC/1200VDC |
| Current | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A | |||
| Standard | IEC/EN60947 | |||
| Breaking Capacity | 6KA | |||
| Characteristic Curve | B,C,D | |||
| Working Temperature | "-5°"to +40° | |||
| Protection Degree | IP20 | |||
| Electrical life | More than 8000 times | |||
| Mechanical life | More than 2000 times | |||

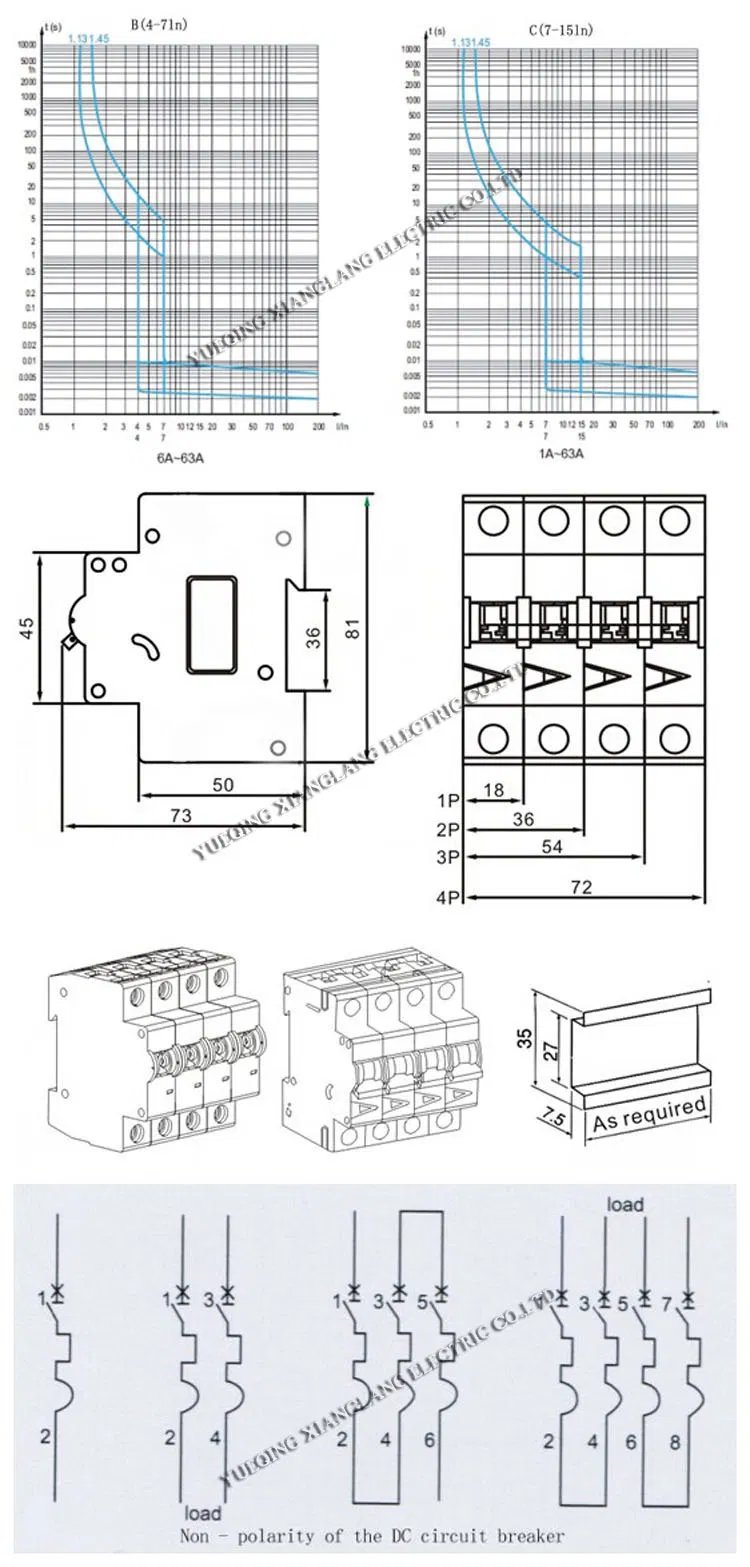

| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL | |||
| Accessory | YES | |||
| Installation Altitude | ≤2000M | |||
DC MCB Packaging:
Standard export carton packing:
1P DC MCB 120pcs/ctn
2P DC MCB 60pcs/ctn
3P DC MCB 40pcs/ctn
4P DC MCB 30pcs/ctn
Carton Size 47*23.5*18CM3
G.W./N.W.: 15/14.5kgs
DC MCB Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC MCB Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information:
YUEQING XIANGLANG ELECTRIC CO.,LTD. is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4
FAQ:
Q: If I'm interested in your DC MCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your DC MCB seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: Our DC MCB is special for Solar system all the parts in the MCB are high quality customized.Not all the DC MCB are Solar MCB!
Q:Can I get a sample before the order because I really don't how is your DC MCB quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your DC MCB?
A:We offer two year warranty for our customer.
