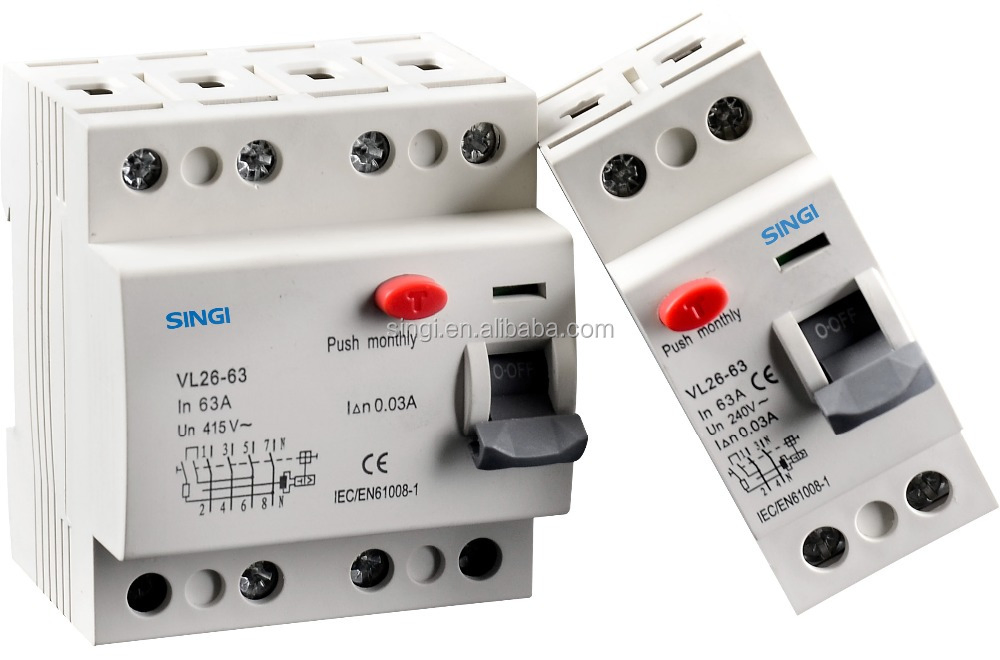

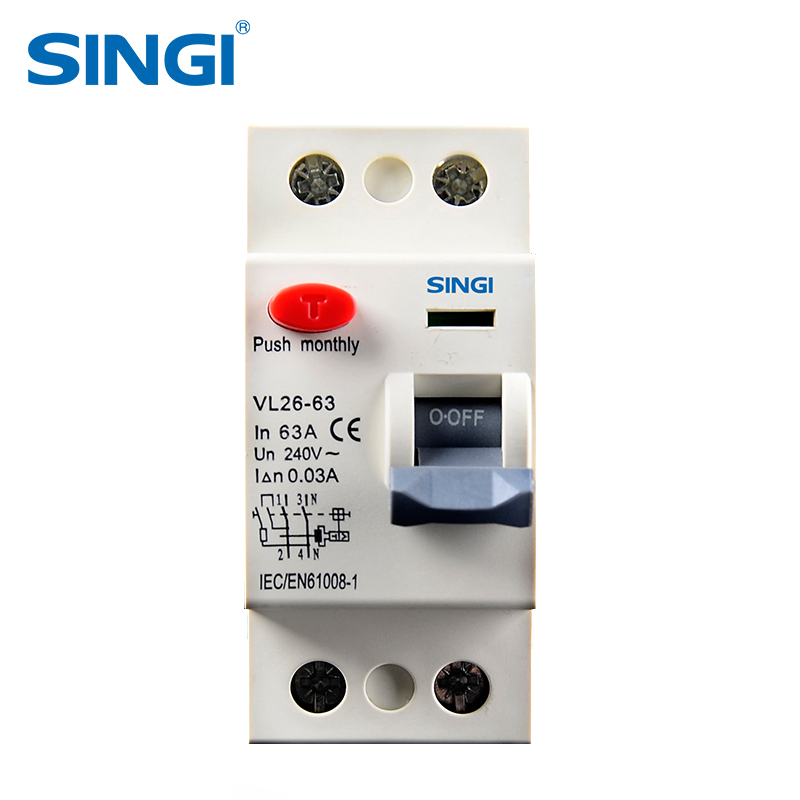

Hot Sale Good Quality Heat Resistant Office Building 2p 230/400V RCCB
Key Specificationhot sale good quality heat resistant office building 2p 230/400V rccboriginal metal components supplier of CHNT&Delixi Key Parameters CE/CB/ISO9001/CCC certificates;Rated voltage:230/400VAC;frequency:50/60Hz;Rated current:6,10,16,20,25,32,40,50,63A;2/4poles available;Mechniacal ......
Send Inquiry
Product Description
Key Specification
hot sale good quality heat resistant office building 2p 230/400V rccb
original metal components supplier of CHNT&Delixi
Key Parameters
- CE/CB/ISO9001/CCC certificates;
- Rated voltage:230/400VAC;
- frequency:50/60Hz;
- Rated current:6,10,16,20,25,32,40,50,63A;
- 2/4poles available;
- Mechniacal life:20,0000times;
- Flame-redardant:PA66 nylon material;
- Protection degree:IP20;
- Standard:IEC1009-1;
- Enduring tem.30°C;
- Breaking Capacity:4/6KA;
- Lighting/Motor protection optional;
- Protections:over load,short circuit and over/unver voltage can be extra supplied.
- More than 10 years professional distribution box manufacturer;
- Parts are processed by ourselves to make sure of the quality abd can be supplied for your DIY;
- Quality insurance 18months;
- factory established in 1980.
APPLICATION
The ELCB also can protect the circuit against overload and short circuit or can be used for the unfrequent switch of the circuit under normal condition. And extra protection functions like over voltage, under voltage can be added according to customers' request.
It conforms to the standard IEC1009-1,GB16917.1.
TECHNICAL PARAMETERS
mode | pole | Rated CurrentIn A | Rated Voltage Ue V | Rated Current Leakage Breaking Current In mA | Rated Current not Breaking Current Ino mA | In breaking time s | power factor COSφ | Rated Short Circuit Breaking Capacity Icn kA | Rated remaining on and breaking capacity IΔm A |
SGFL12 | 2 | 6,10,16,20,25,32, 40,50,63 | 240 | 10 30 100 300 | 5 15 50 150 | ≤0.1 | 0.65~0.70 | 6 | 2000 |
SGFL14 | 4 | 415 | |||||||
SGFE12 | 2 | 6,10,16, 20,25,32,40,50,63 | 240 | 10 30 100 300 | 5 30 50 150 | ≤0.1 | 0.65~0.70 | 6
| 2000 |
SGFE14 | 4 | 415 |
