Product Description

Application:

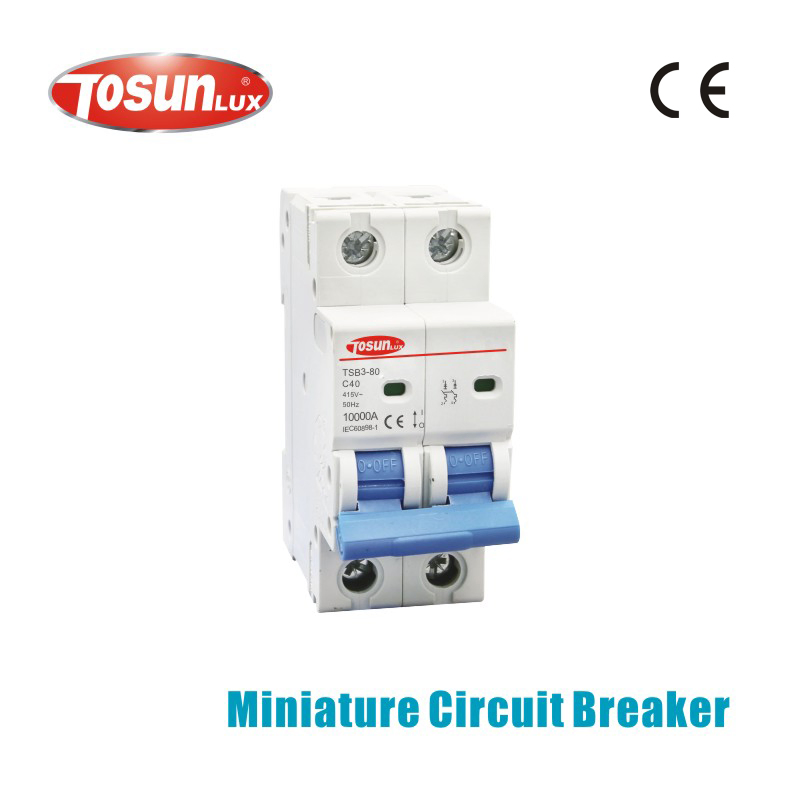

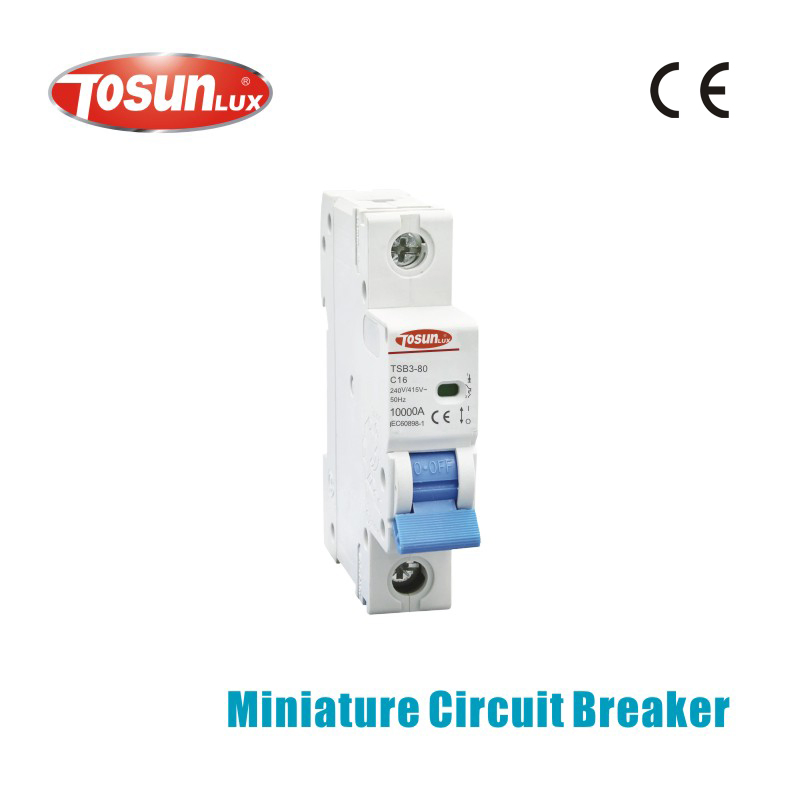

TSB3-80 miniature circuit breaker is used for overload and short-circuit protection in lighting distribution system or motor distribution system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity which can trip quickly, also it adopts high fire-resistant and shockproof plastics. The products comply with IEC 60898 and have been certified by "CB", "TUV" and "CE".

Specification:

Number of Poles	1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current	6,10,16,20,25,32,40,50,63,80A
Breaking Capacity	10kA
Rated Voltage	1P: 240/415V,2P, 3P, 4P: 415V
Endurance	≥4000V
Circumstance Temperature	-5~40 ºC
Electrical Life	≥10000 operations
Mechanical Life	≥20000 operations
Protection Degree	IP20

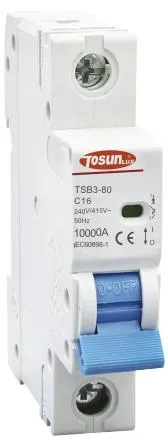

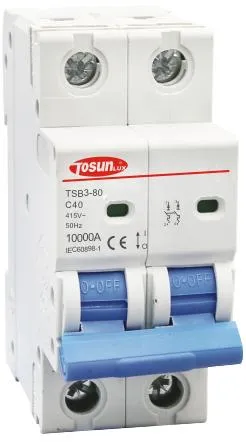

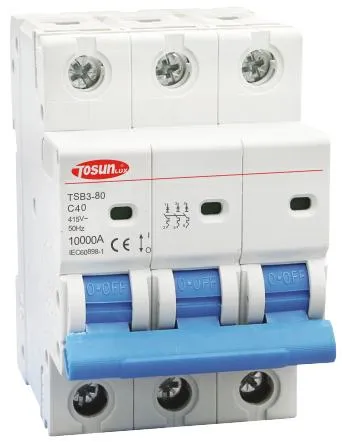

High Breaking Capacity 80A Miniature Circuit Breaker
