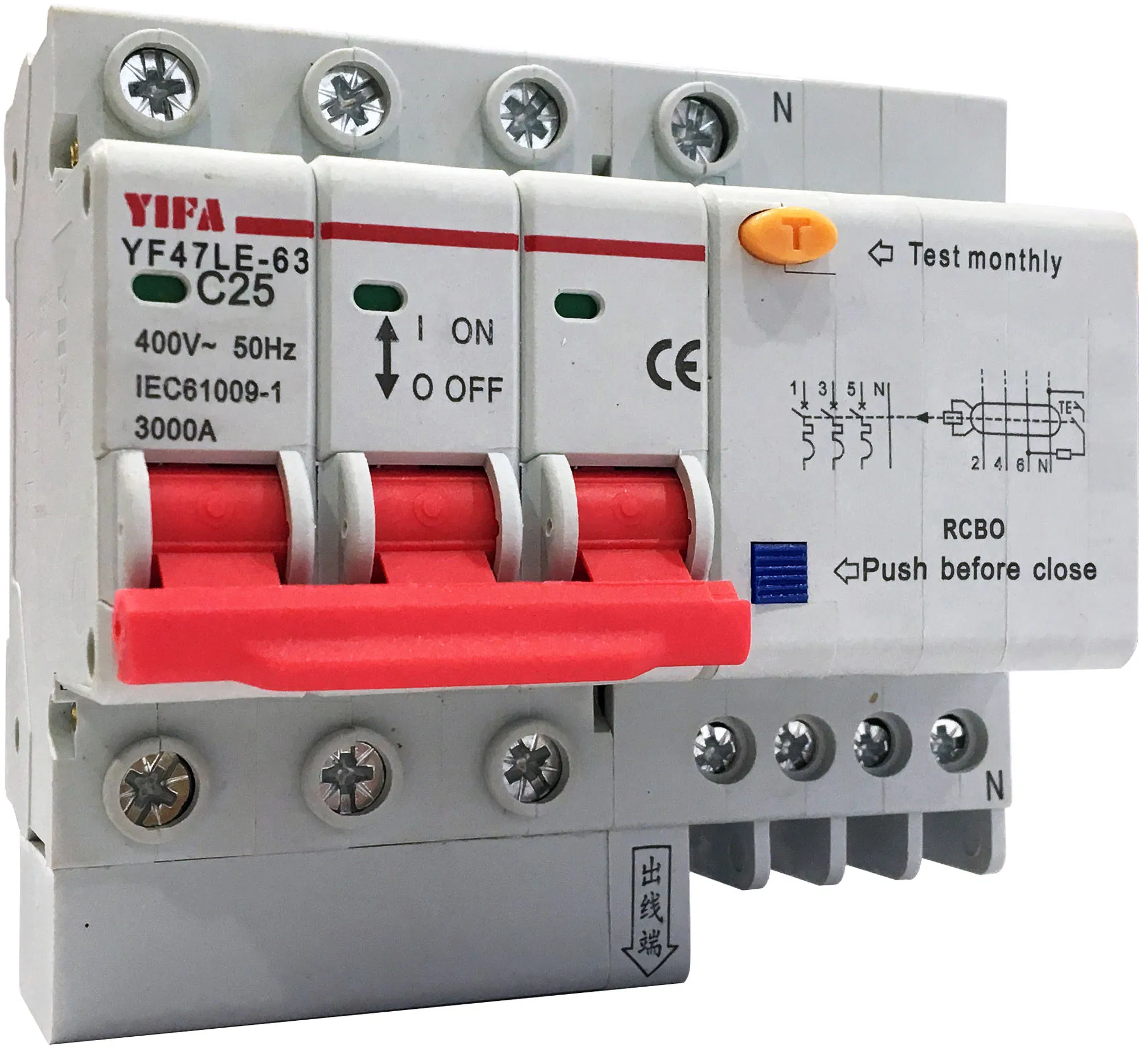

China Factory Provide Directly 3p 63A Protect Circuit Breaker RCBO Ce Kema

Product Description

Product Description

Free Samples Can Be Provided

Model	MINI CIRCUIT BREAKER
Code	EKM1-63S
Standard		IEC60898-1
Electrical features	Rated current in	A	1 2 3 4 6 10 16 20 25 32 40 50 63
	Poles		1P,1P+N, 2P, 3P,3P+N, 4P
	Rated voltage Ue	V	240/415
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000
	Rated impulse withstand voltage (1.2/50)Uipm	V	4000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2
	Pollution degree		2
	Themo-magnetic release characteristic		B(3-5In) ,C(5-10In),D(10-20In)
Mechanical features	Electrical life		4000
	Machanical life		10000
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2.0
	Mounting		35mm DIN rail
	Connection		From top and bottom

Packing details:

NAME	SPECIFICATIONS	UNIT	PCS/CARTON	CARTON VOLUME(MM) LWH	G.W(KG)	N.W(KG)
DZ47-63	1P 1-63A 3KA/6KA	PCS	240	423340238	22.45	21.00
DZ47-63	2P 1-63A 3KA/6KA	PCS	180	423340238	22.45	21.00
DZ47-63	3P 1-63A 3KA/6KA	PCS	80	423340238	22.45	21.00
DZ47-63	4P 1-63A 3KA/6KA	PCS	60	423340238	22.45	21.00

Factory Provide Directly 3p 63A Protect Circuit Breaker RCBO Ce Kema

4.Our extibition:
Factory Provide Directly 3p 63A Protect Circuit Breaker RCBO Ce Kema

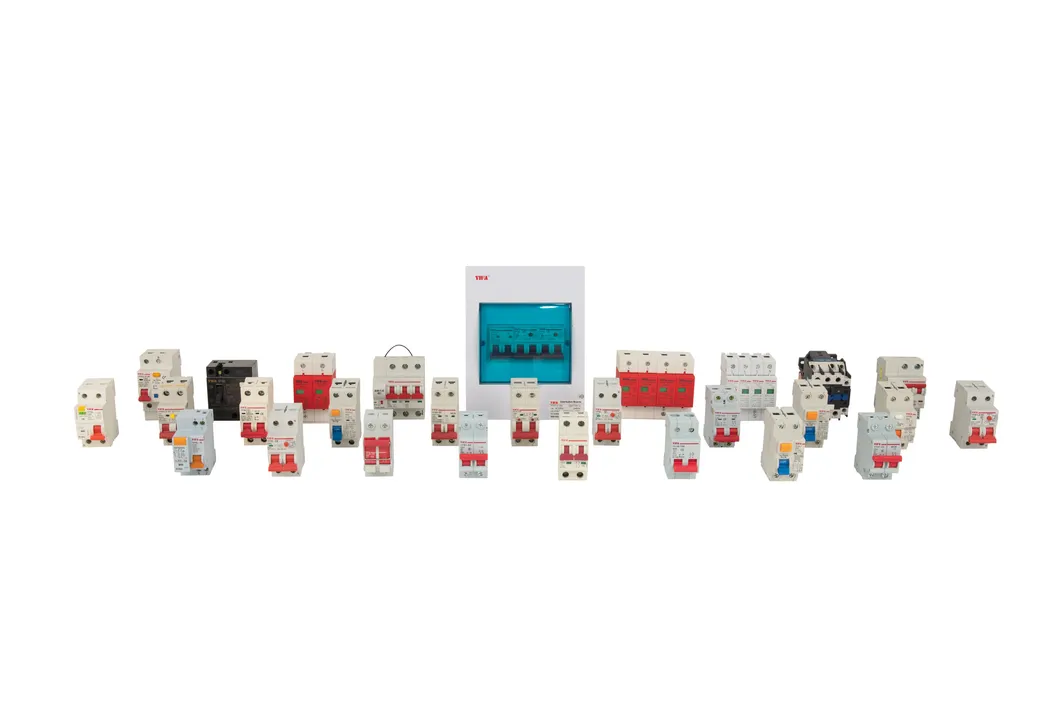

5.Yifa Main Product
YIFA main products: electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, Glass fiber reinforced plastics material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales.

6..RFQ
6.1.Q: Are you manufacturer?
    A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong  Province.
6.2.Q: Can I get guarantee of products?
    A: Yes, every product is 1 year quality warrantee under customer correct using the products.
6.3.Q: Do you have any Certificate?
    A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
6.4.Q: How to buy it? What about the delivery?
    A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
6.5.Q: How can I pay you?
    A: T/T, L/C is very well used.
6.6.Q: What about the production?
    A: Produce time is 4~6weeks.
6.7.Q: Could you offer some spare parts?
    A: Yes, no problem.
6.8.Q: What about the maintenance?
    A: All the goods past the test, maintenance is very easy.7
