Factory 9-95A Normal Type Circuit Breaker mcb Starter with Magnetic with Good Price

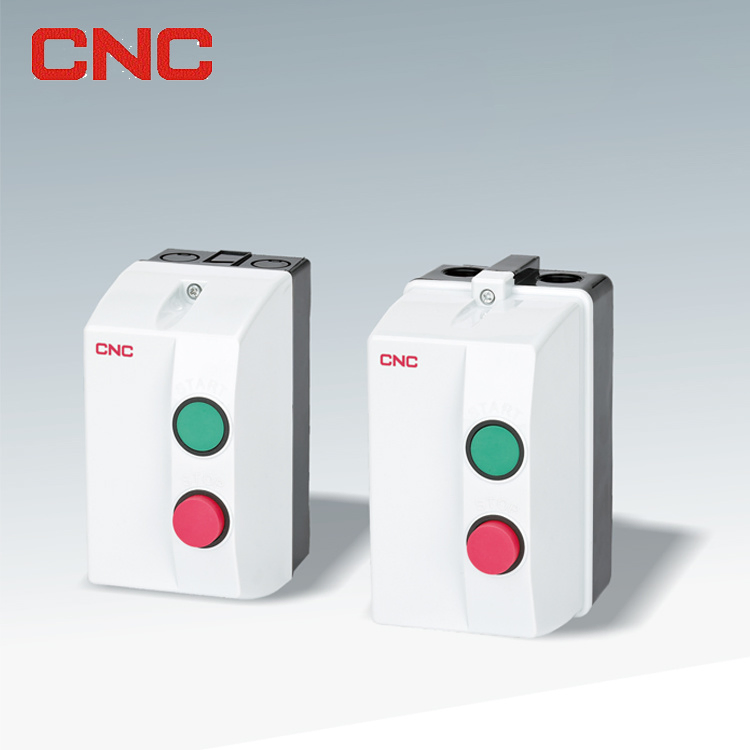

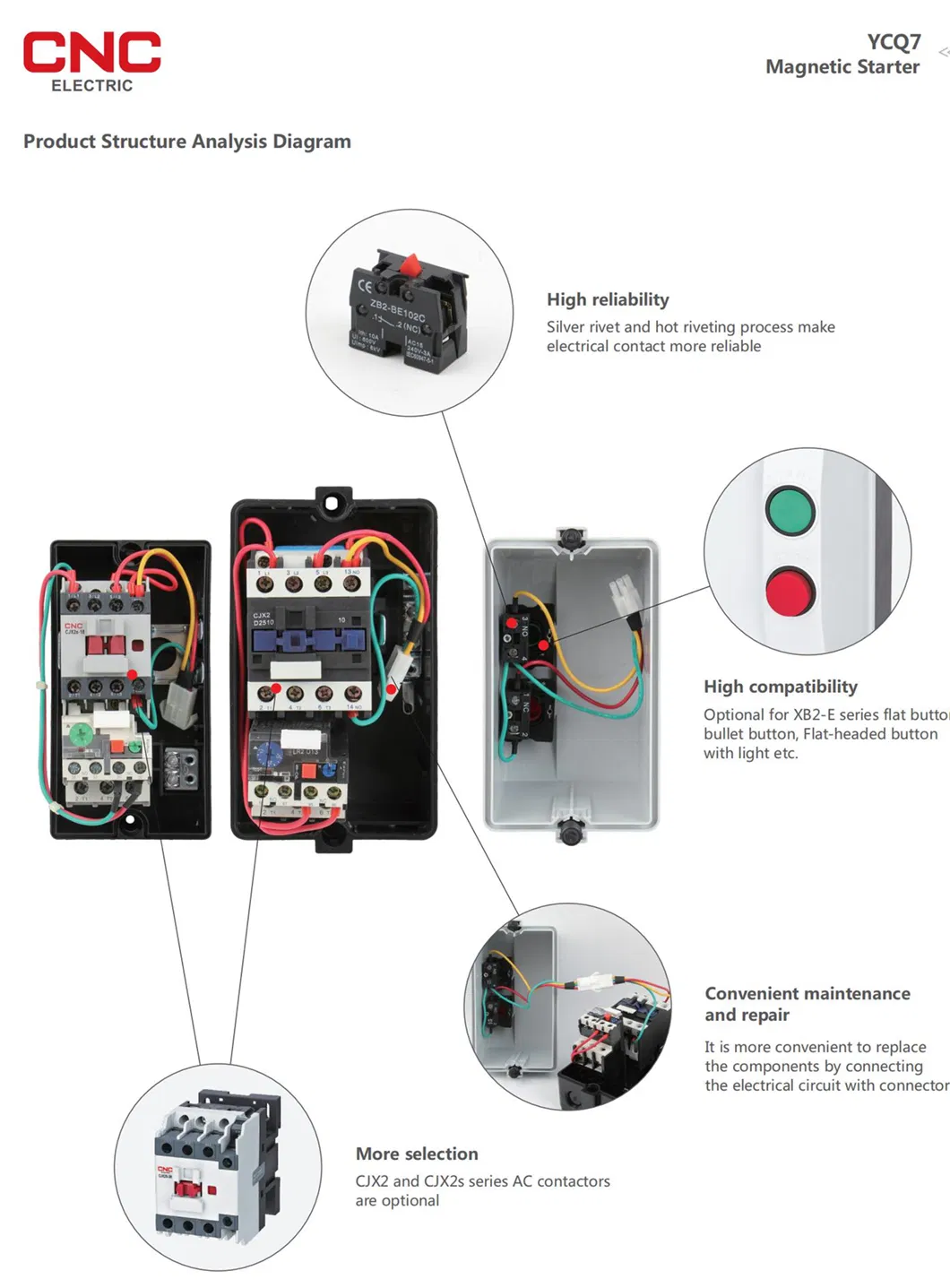

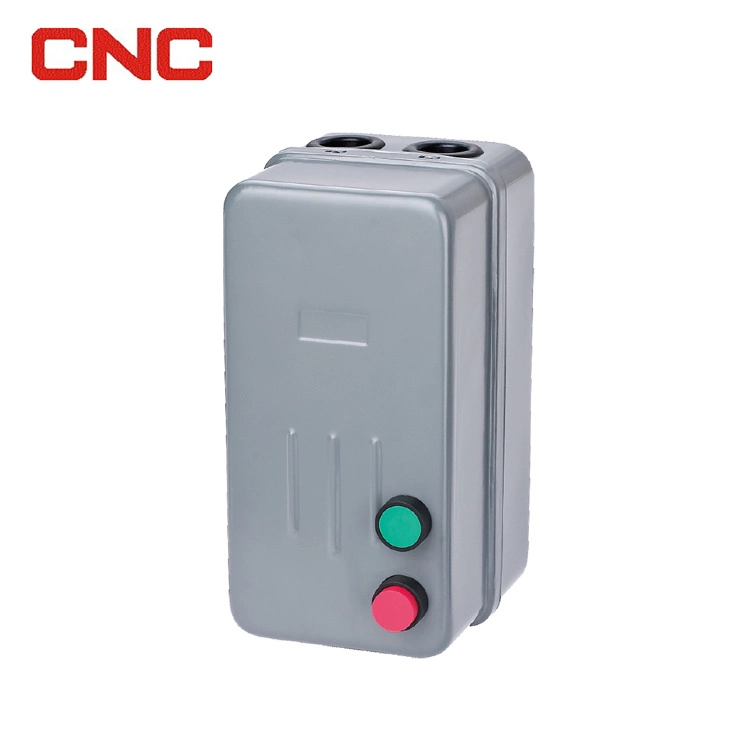

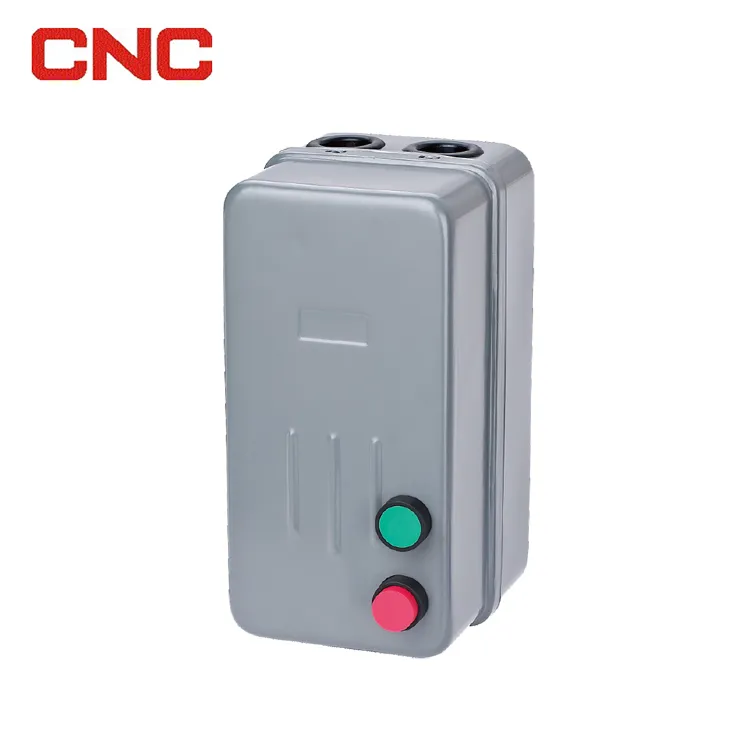

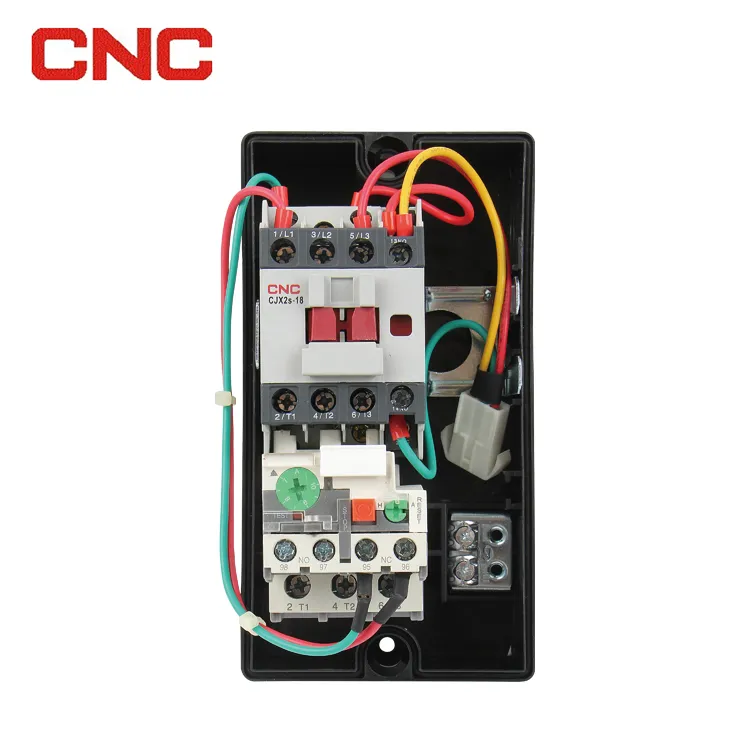

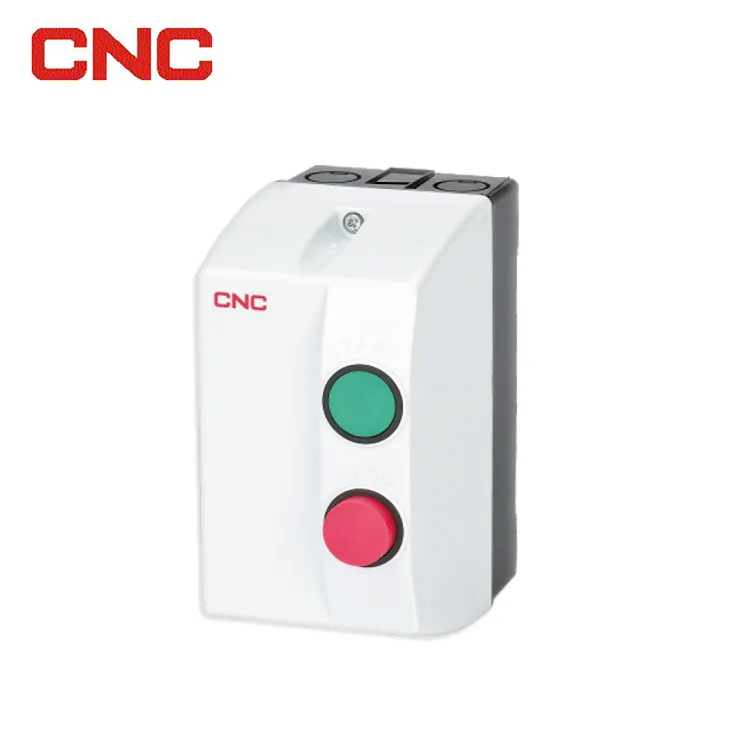

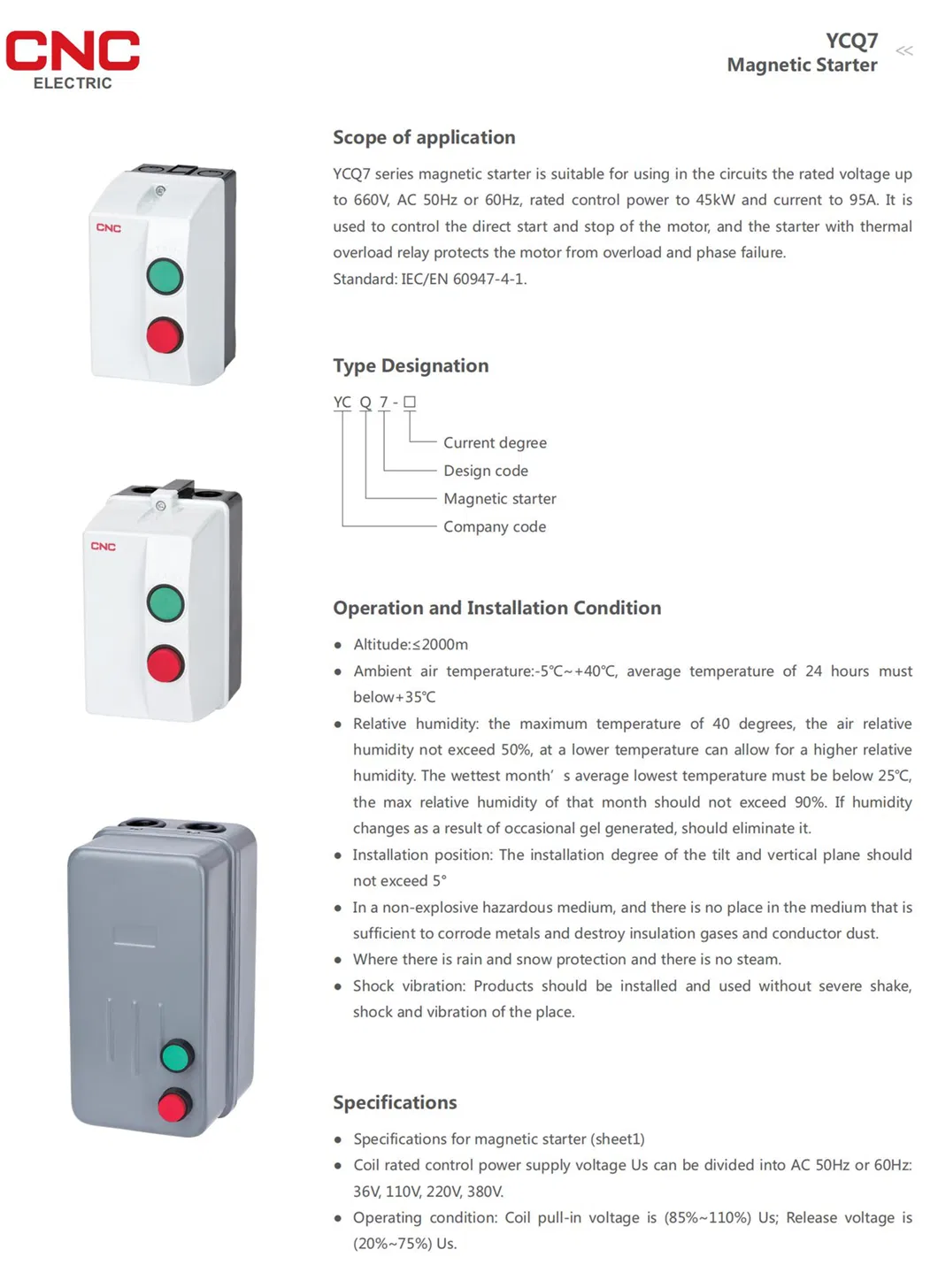

YCQ7 series magnetic starter is suitable for using in the circuits the rated voltage up to 660V, AC 50Hz or 60Hz, rated control power to 45kW and current to 95A. It is used to control the direct start and stop of the motor, and the starter with thermal overload relay protects the motor from overload and phase failure.
Standard: IEC/EN 60947-4-1.

Type	Rated current Ie A	Maximum power duty (kW)			Matched AC contactor type	Matched thermal relay	Setting current range (A)
		AC-3
		660V	380V	220V
YCQ7-09	9	5.5	4	2.2	CJX2-D09/CJX2s-09	JR28-25 JR28s-25	2.5~4, 4~6, 5.5~8
YCQ7-12	12	7.5	5.5	3	CJX2-D12/CJX2s-12	JR28-25 JR28s-25	7~10, 9~13
YCQ7-18	18	10	7.5	4	CJX2-D18/CJX2s-18		12~18
YCQ7-25	25	15	11	5.5	CJX2-D25/CJX2s-25		17~25
YCQ7-32	32	18.5	15	7.5	CJX2-D32/CJX2s-32		23~32
YCQ7-40	40	18.5	18.5	11	CJX2-D40/CJX2s-40	JR28-93 JR28s-93	23~32, 30~40 37~50, 48~65 55~70, 63~80 80~93
YCQ7-50	50	22	22	15	CJX2-D50/CJX2s-50
YCQ7-65	65	30	30	18.5	CJX2-D65/CJX2s-65
YCQ7-80	80	37	37	22	CJX2-D80/CJX2s-80
YCQ7-95	95	45	45	25	CJX2-D95/CJX2s-90
