China CNC Ycb9-80m 63A C Type 1p 10ka 230V 50Hz Miniature Circuit Breakers MCB

Product Description

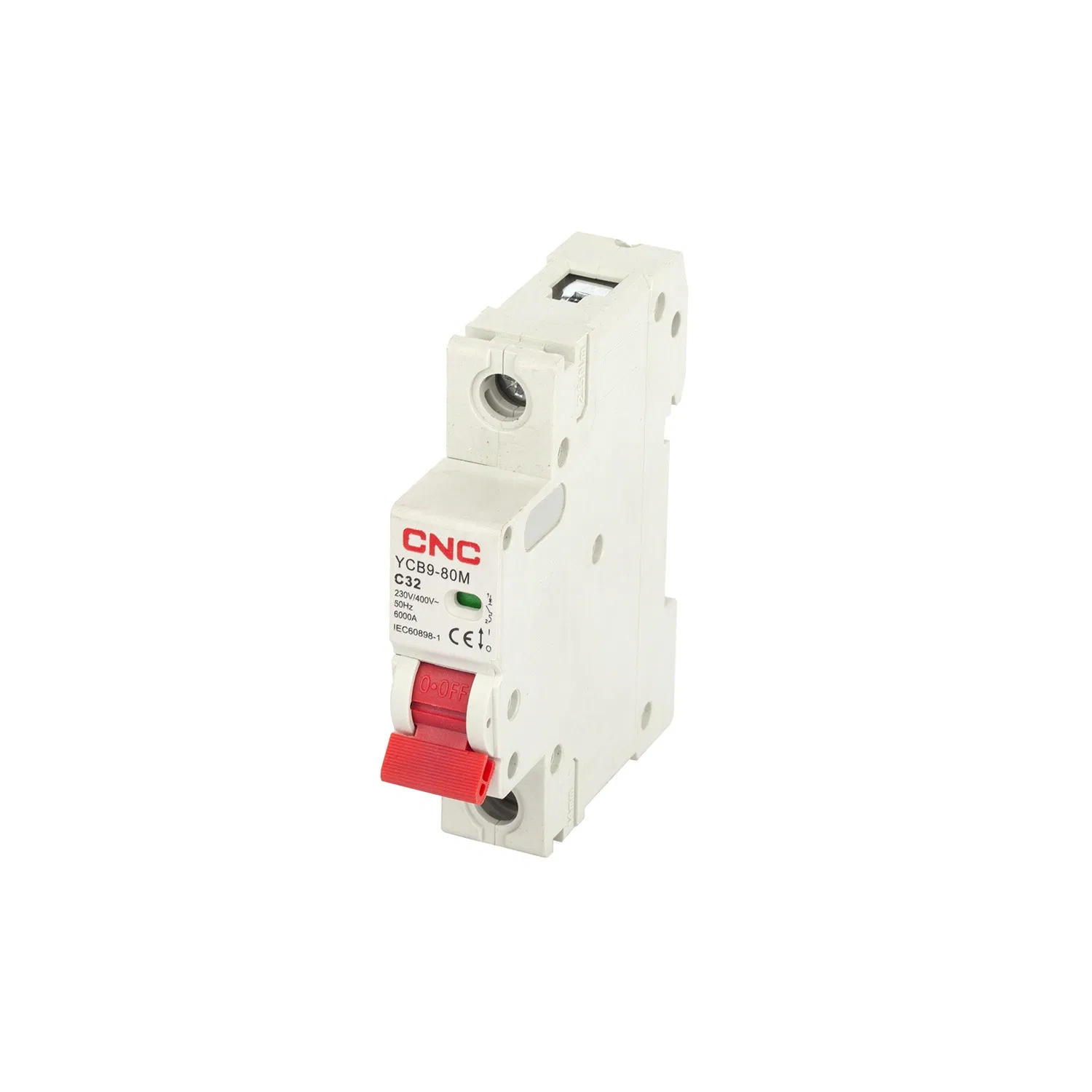

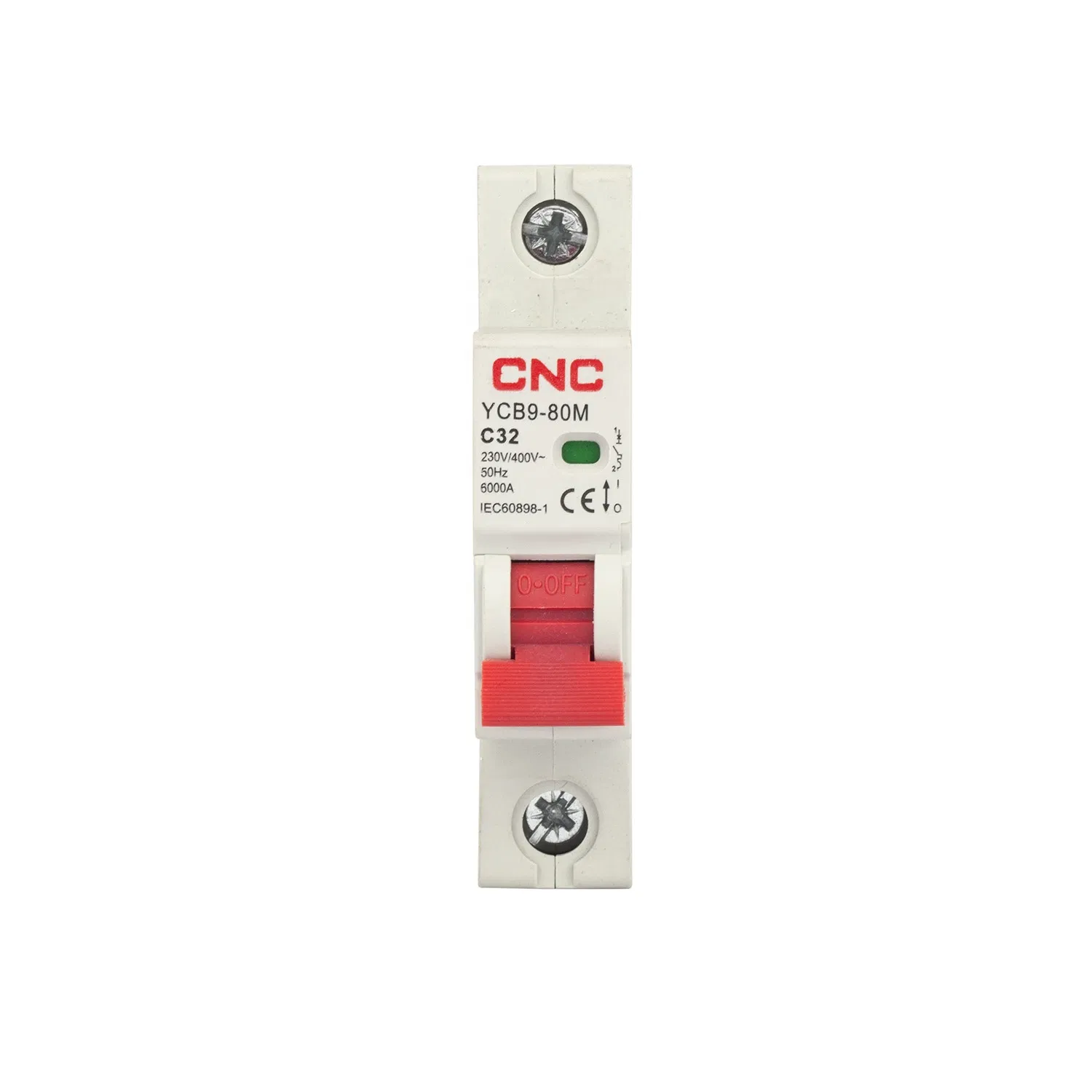

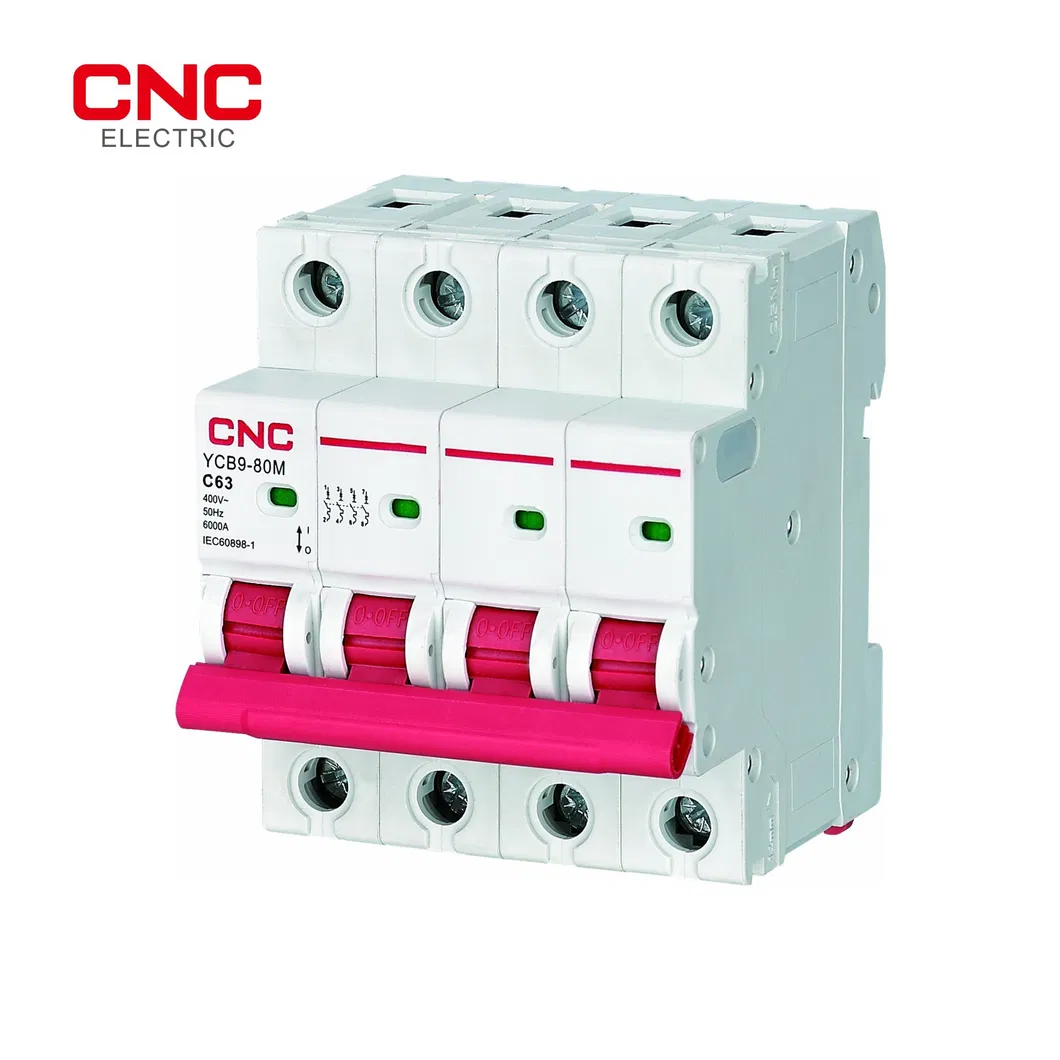

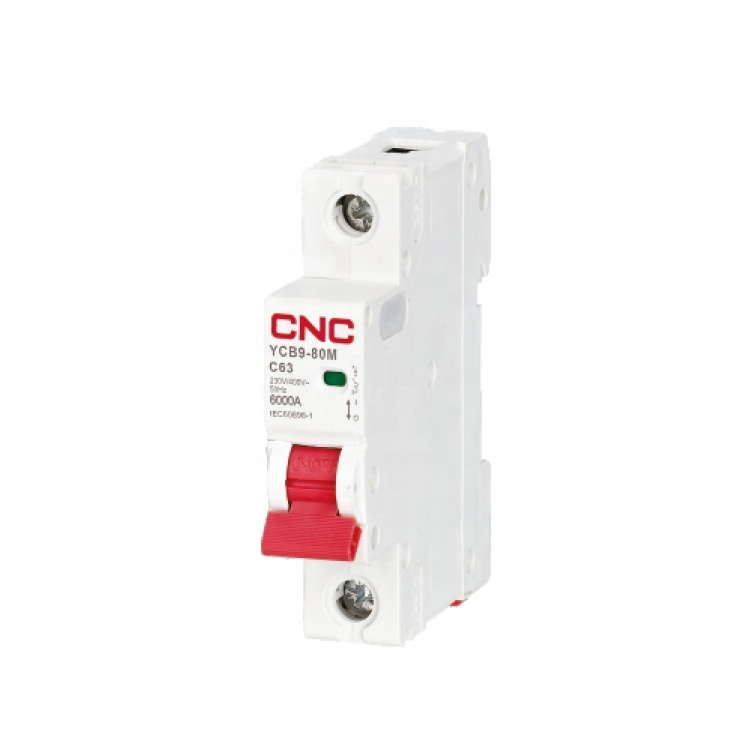

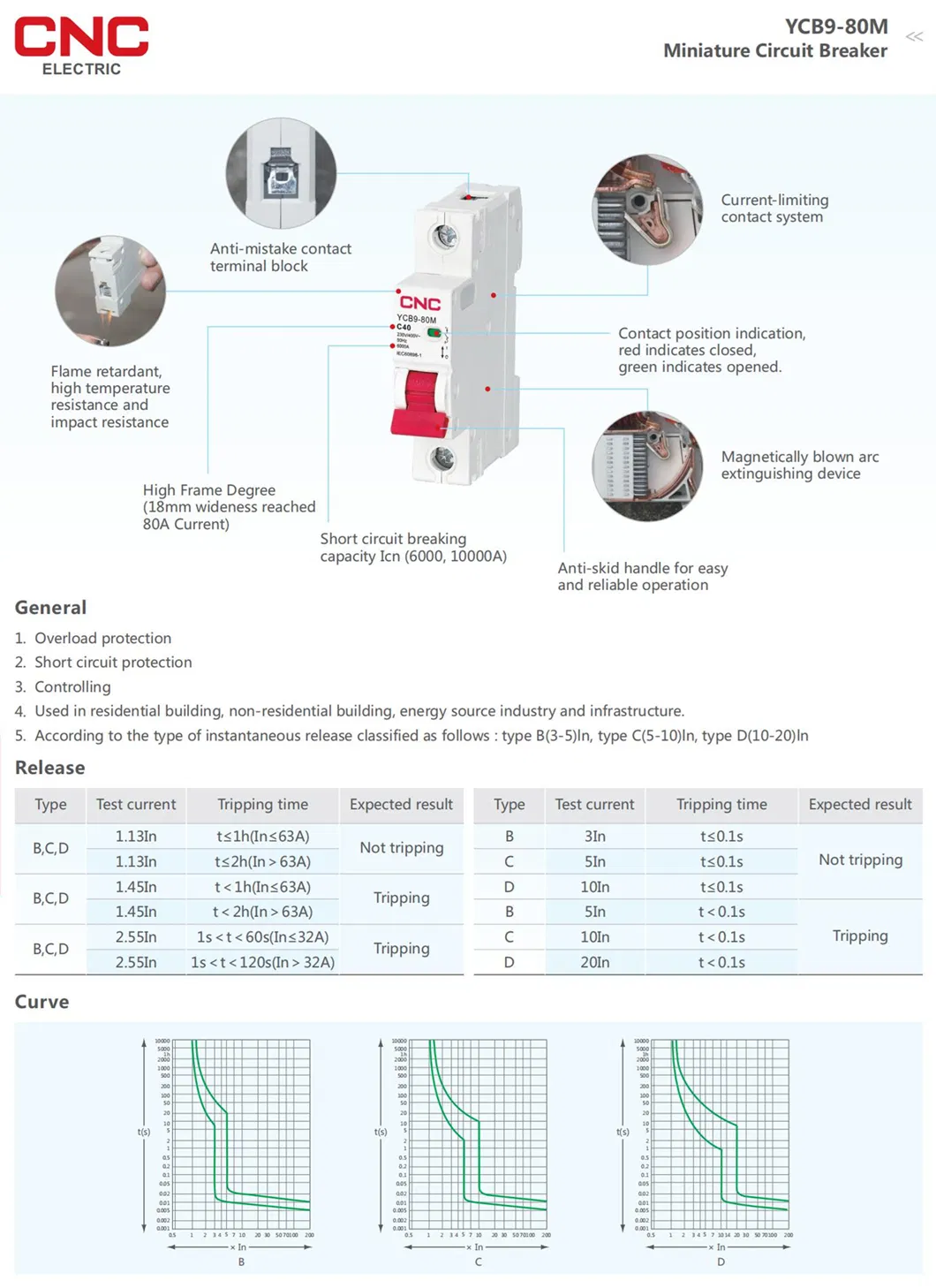

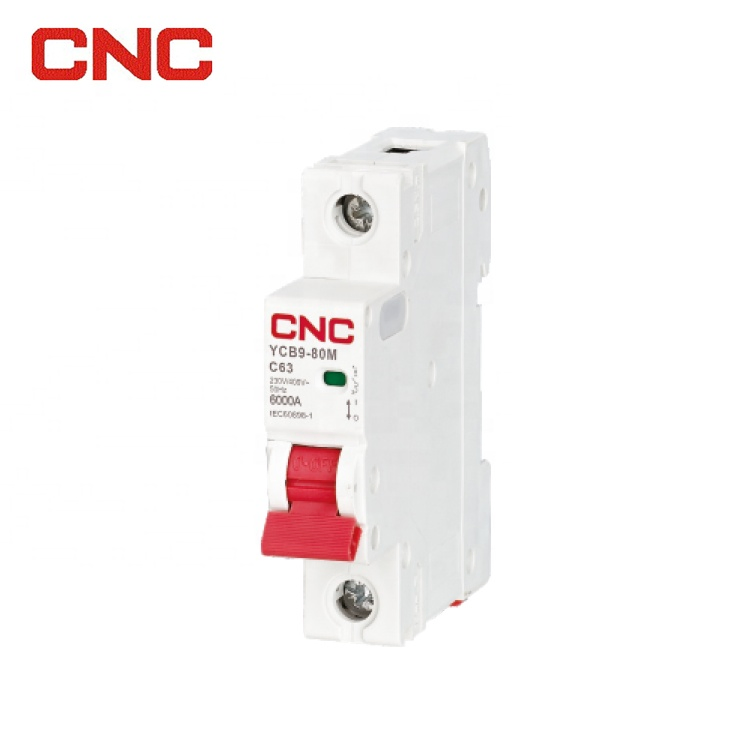

CNC Ycb9-80m 63A C Type 1p 10ka 230V 50Hz Miniature Circuit Breakers MCB

1.Overload protection
2.Short circuit protection
3.Controlling
4.Used in residential building, non-residential building, energy source industry and infrastructure.
5.According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln CNC Ycb9-80m 63A C Type 1p 10ka 230V 50Hz Miniature Circuit Breakers MCB

Type Standard			lEC/EN 60898-1
Electrical features	Rated current ln	A	1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80

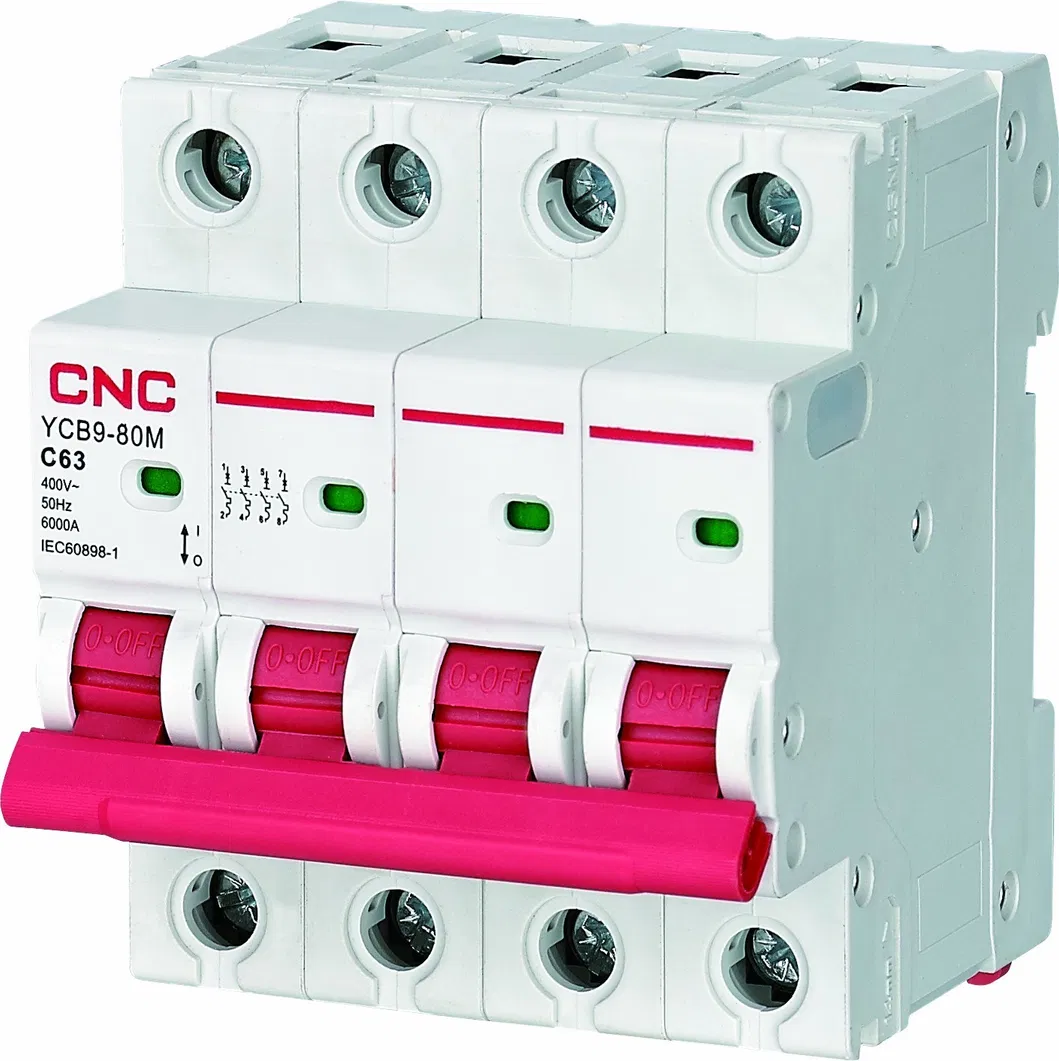

	Poles	P	1, 2, 3, 4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000, 10000
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	8000
	Mechanical life	t	20000
	Protection degree		IP20
	Reference temperature for setting of thermal element	ºC	30
	Ambient temperature (with daily average≤35ºC)	ºC	-5~+40
	Storage temperature	ºC	-25~+70
Installation	Terminal connection type		Cable/Pin-type busbar/U-type bar
	Terminal size top / bottom for cable	mm²	25
	Terminal size top / bottom for cable	AWG	18-3
	Terminal size top / bottom for busbar	mm²	25
	Terminal size top / bottom for busbar	AWG	18-3
	Tightening torque	N*m	2
	Tightening torque	In-Ibs	18
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom
