    Product Description

    CNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100A

    Product Description

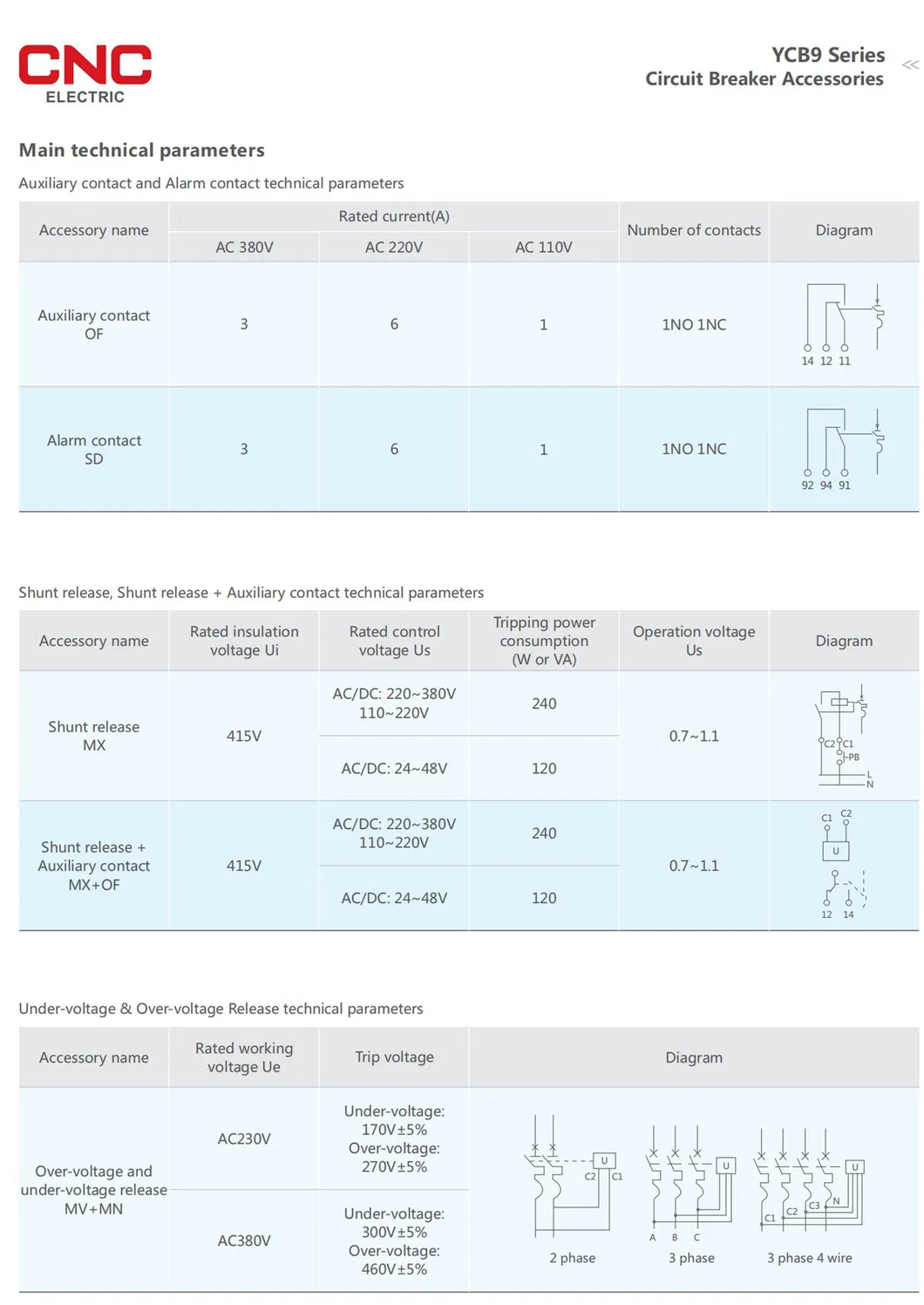

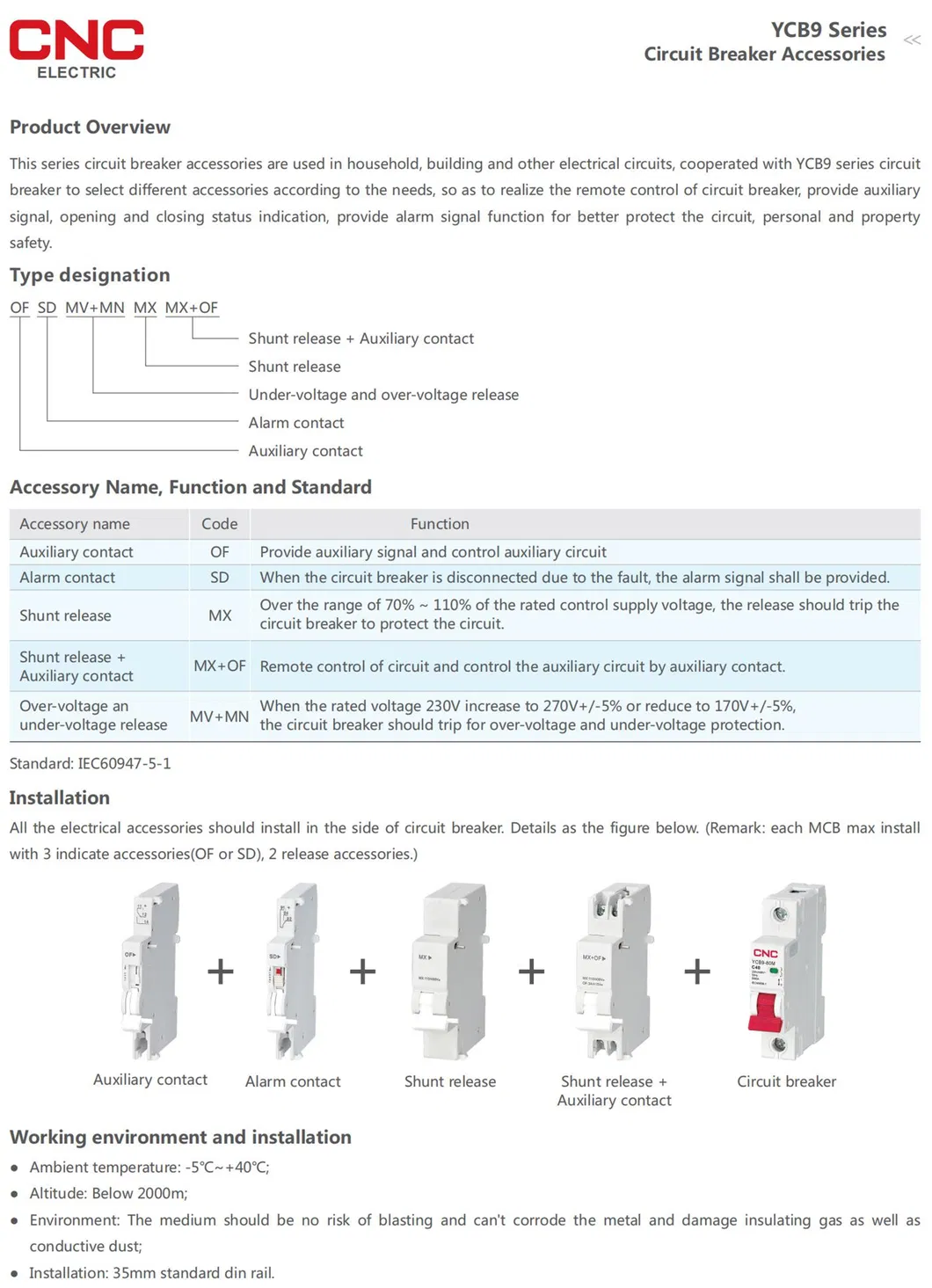

    This series circuit breaker accessories are used in household, building and other electrical circuits, cooperated with YCB9 series circuit breaker to select different accessories according to the needs, so as to realize the remote control of circuit breaker, provide auxiliary signal, opening and closing status indication, provide alarm signal function for better protect the circuit, personal and property safety.
    CNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100ACNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100A
    CNC Professional Factory AC MCB Circuit Breaker Circuit Breaker MCB 4p 220V Circuit Breaker AC MCB 100A
    Type Standard lEC/EN 60898-1
    Electrical featuresRated current lnA1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80
    PolesP1, 2, 3, 4
    Rated voltage UeV230/400
    Insulation voltage UiV500
    Rated frequencyHz50/60
    Rated breaking capacityA6000, 10000
    Rated impulse withstand voltage(1.2/50)UimpV6000
    Dielectric test voltage at ind. Freq. for 1minkV2
    Pollution degree 2
    Thermo-magnetic release characteristic B, C, D
    Mechanical featuresElectrical lifet8000
    Mechanical lifet20000
    Protection degree IP20
    Reference temperature for setting of thermal elementºC30
    Ambient temperature (with daily average≤35ºC)ºC-5~+40
    Storage temperatureºC-25~+70
    InstallationTerminal connection type Cable/Pin-type busbar/U-type bar
    Terminal size top / bottom for cablemm²25
    AWG18-3
    Terminal size top / bottom for busbarmm²25
    AWG18-3
    Tightening torqueN*m2
    In-Ibs18
    Mounting On DIN rail EN 60715(35mm)by means of fast clip device
    Connection From top and bottom
