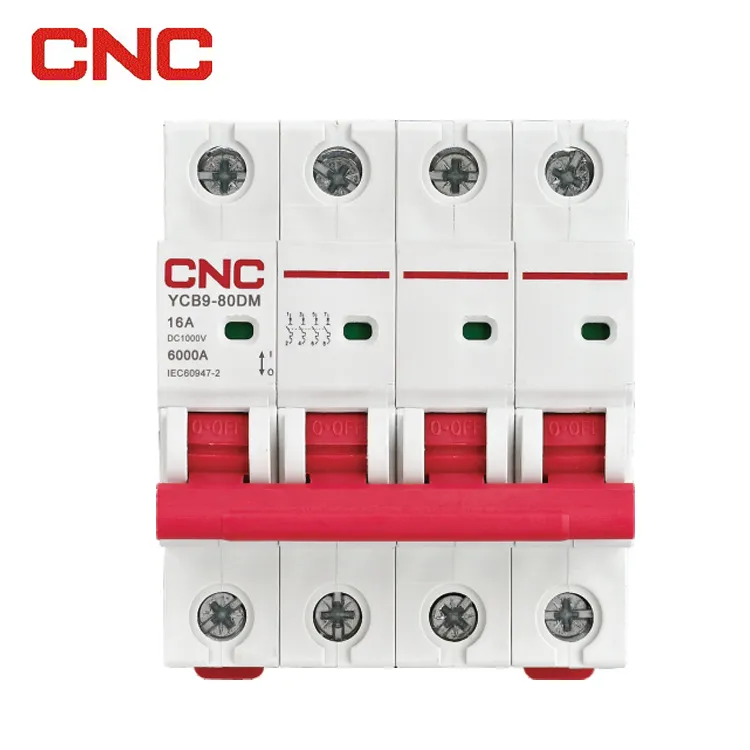

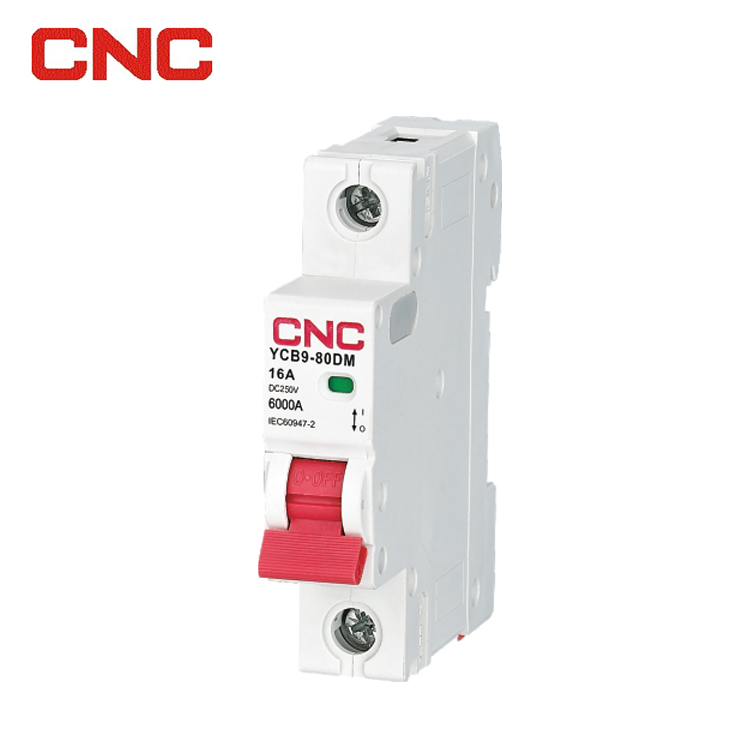

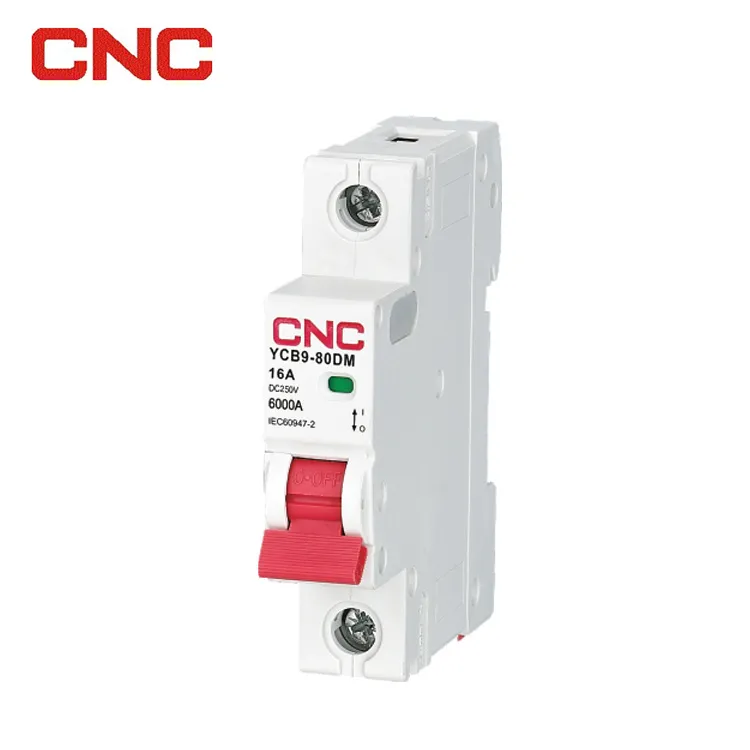

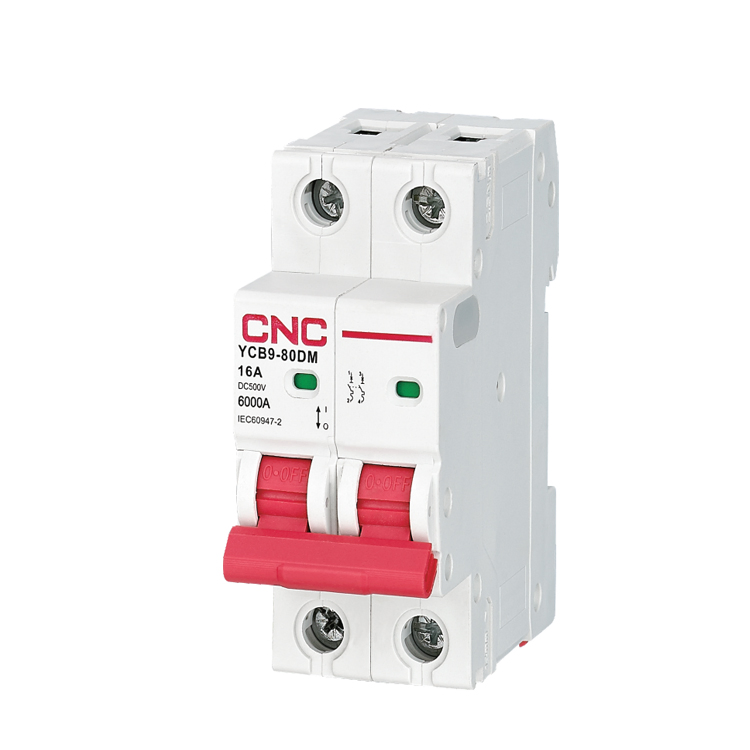

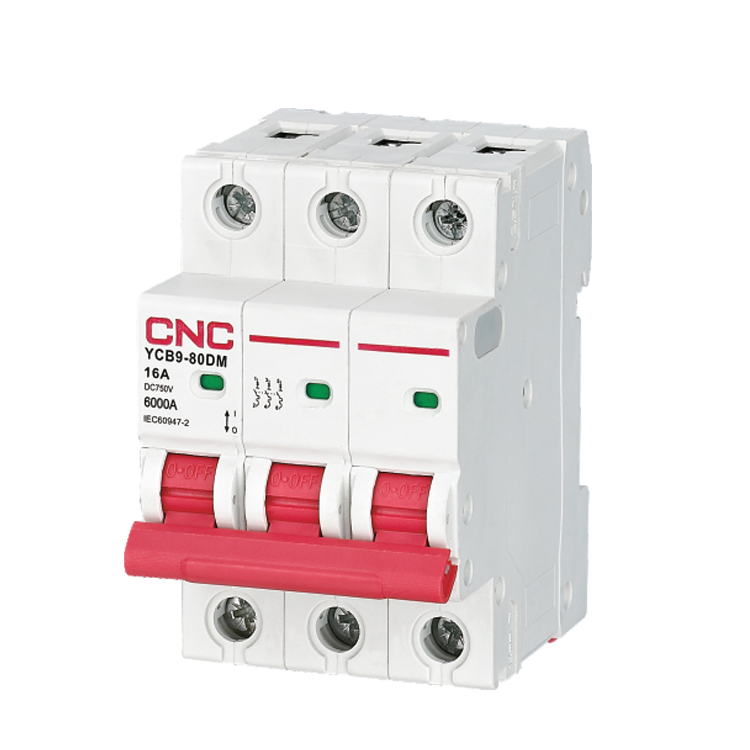

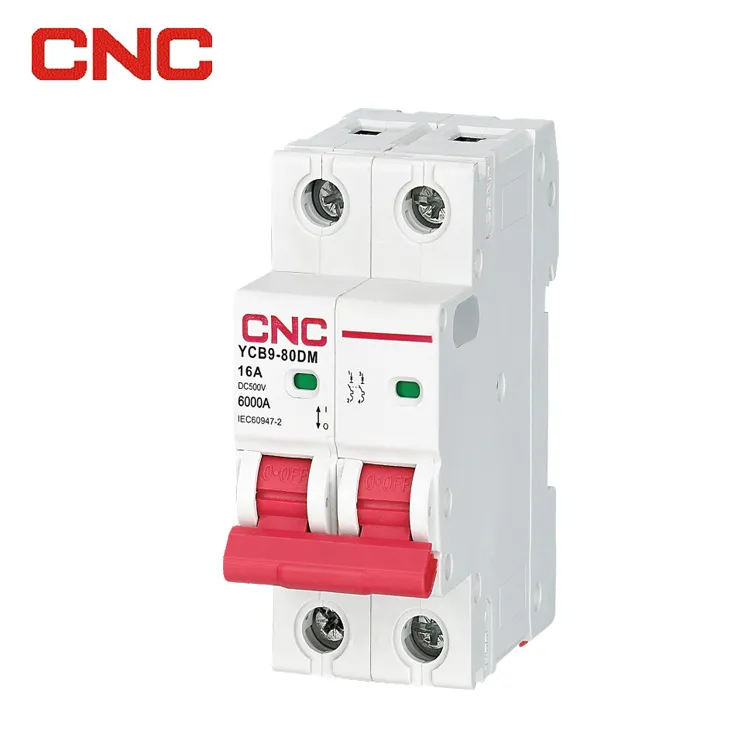

CNC 500V Solar MCB for PV 80A DC MCB Circuit Breaker Solar DC MCB 80A
CNC 500V Solar MCB for PV 80A DC MCB Circuit Breaker Solar DC MCB 80AProduct DescriptionGeneral1.Overload protection2.Short circuit protection3.Controlling4.Used in residential building, non-residential building, energy source industry and infrastructure.5.According to the type of instantaneous rele......
Send Inquiry
Product Description

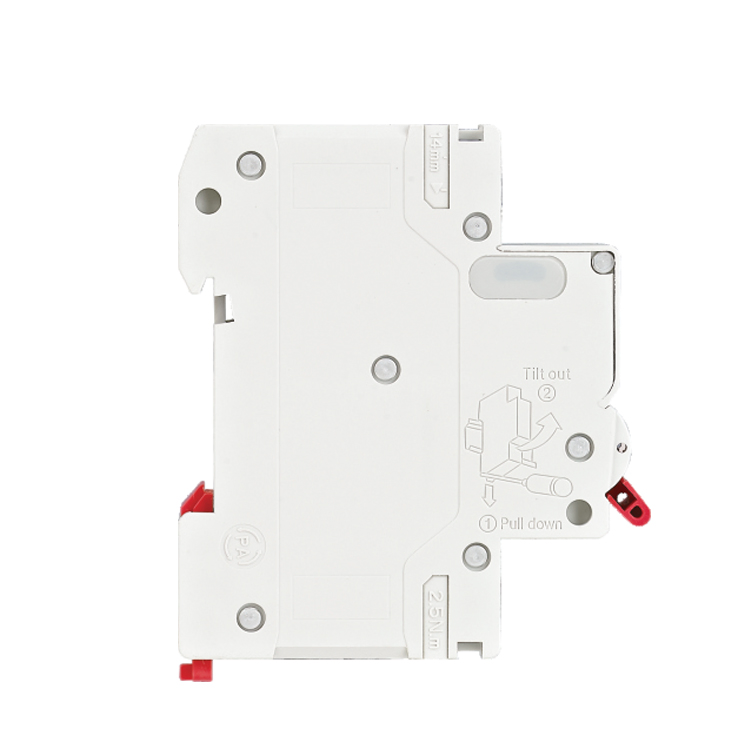

CNC 500V Solar MCB for PV 80A DC MCB Circuit Breaker Solar DC MCB 80A
General
1.Overload protection
2.Short circuit protection
3.Controlling
4.Used in residential building, non-residential building, energy source industry and infrastructure.

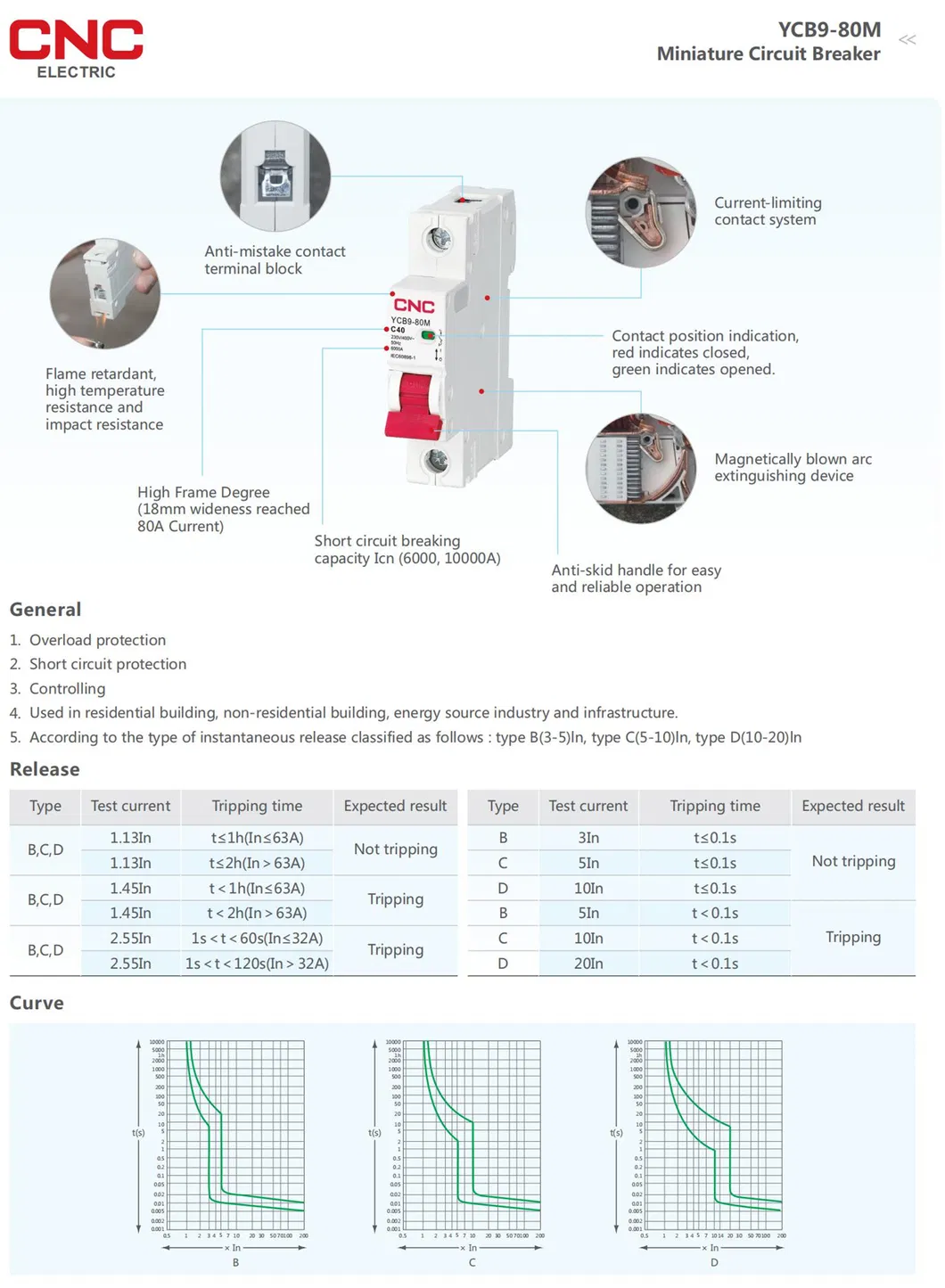

5.According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln
1.Overload protection
2.Short circuit protection
3.Controlling
4.Used in residential building, non-residential building, energy source industry and infrastructure.
5.According to the type of instantaneous release classified as follows : type B(3-5)ln, type C(5-10)ln, type D(10-20)ln

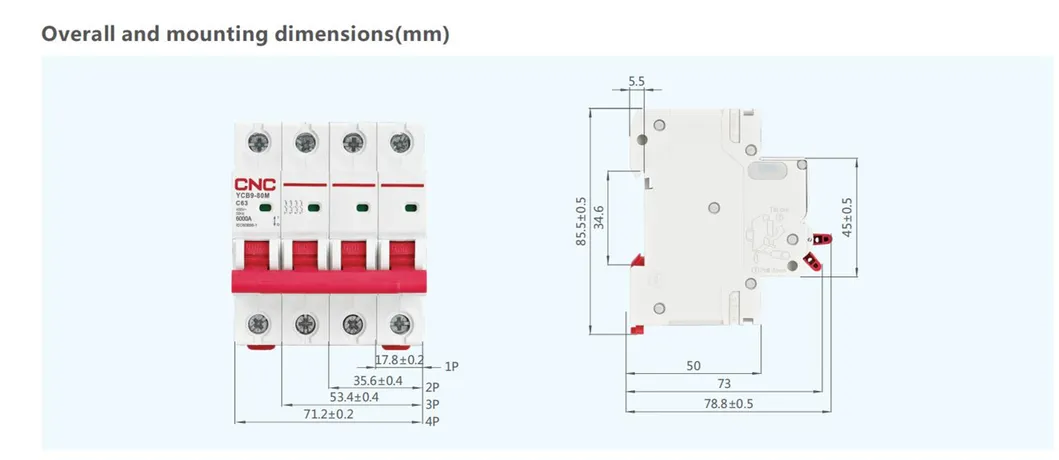

| Type Standard | lEC/EN 60898-1 | ||
| Electrical features | Rated current ln | A | 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63, 80 |
| Poles | P | 1, 2, 3, 4 | |
| Rated voltage Ue | V | 230/400 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 6000, 10000 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 | |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 | |
| Pollution degree | 2 | ||
| Thermo-magnetic release characteristic | B, C, D | ||
| Mechanical features | Electrical life | t | 8000 |
| Mechanical life | t | 20000 | |
| Protection degree | IP20 | ||
| Reference temperature for setting of thermal element | ºC | 30 | |
| Ambient temperature (with daily average≤35ºC) | ºC | -5~+40 | |
| Storage temperature | ºC | -25~+70 | |
| Installation | Terminal connection type | Cable/Pin-type busbar/U-type bar | |
| Terminal size top / bottom for cable | mm² | 25 | |
| AWG | 18-3 | ||
| Terminal size top / bottom for busbar | mm² | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2 | |
| In-Ibs | 18 | ||
| Mounting | On DIN rail EN 60715(35mm)by means of fast clip device | ||
| Connection | From top and bottom | ||
