Home > Products > Breaker & Protector > Circuit Breaker > China Fato Factory Produced All Kinds of MCB Dz47-100h Electronic Safety Mini Circuit Breaker

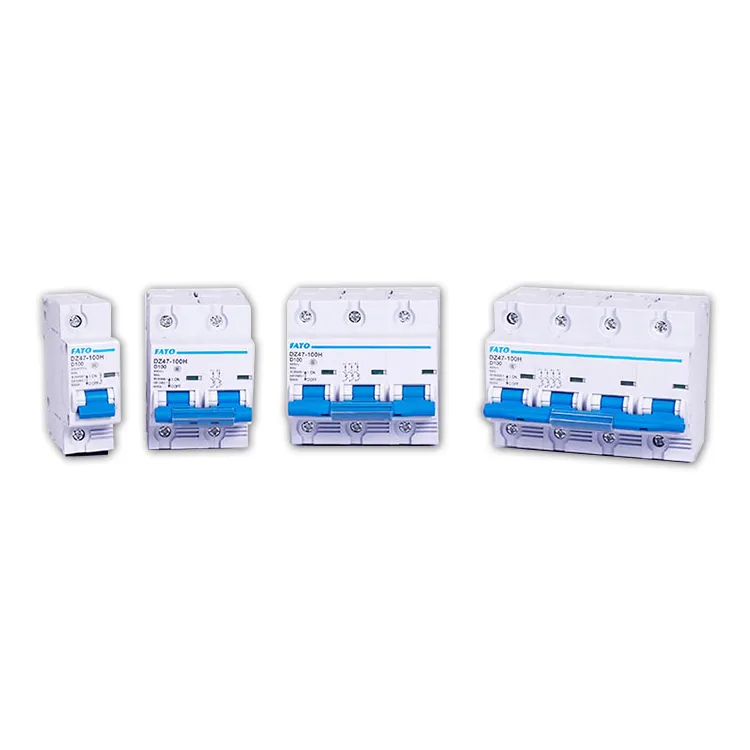

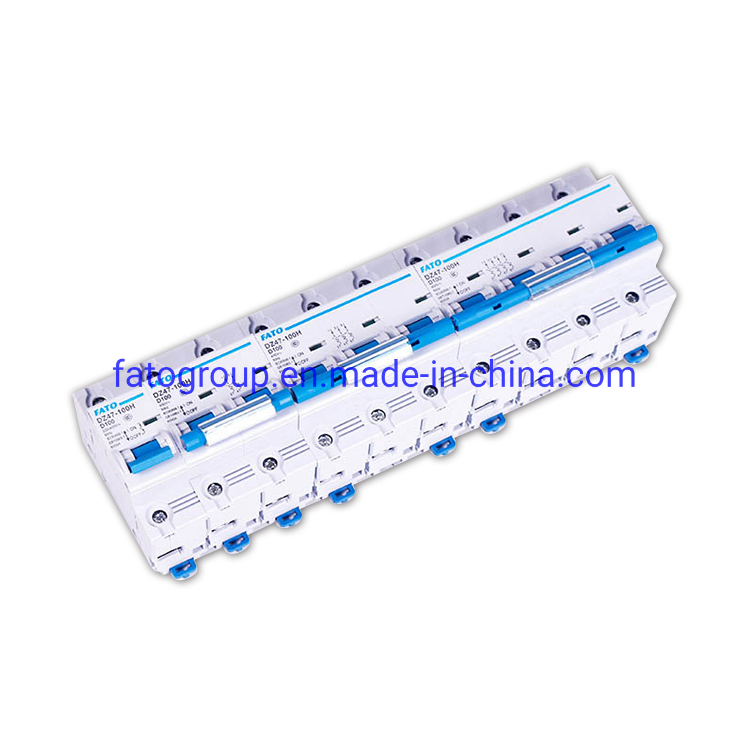

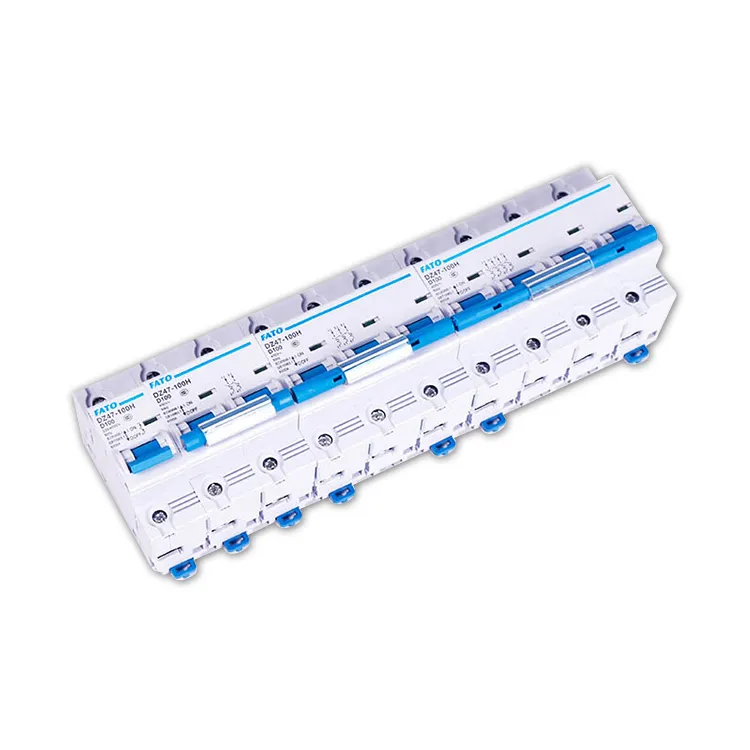

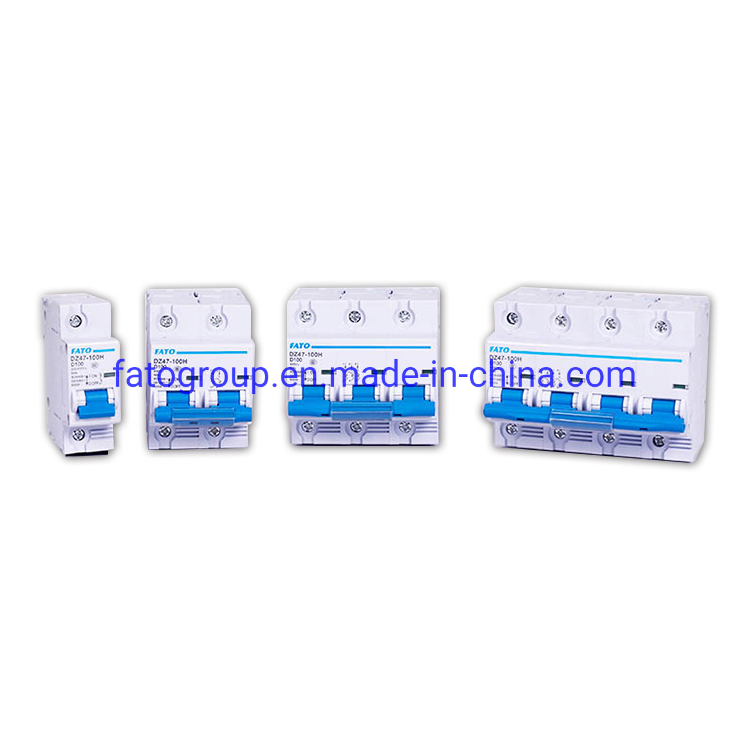

China Fato Factory Produced All Kinds of MCB Dz47-100h Electronic Safety Mini Circuit Breaker
Prodouct Specification: Item NumberDZ47-100HNumber of poles1P,2P,3P,4PRated Current(In)32,40,50,63,80,100ARated Voltage(Un)AC 230/400VRated frequency50/60HzCurveC,D Short-circuit breaking capacity (Icn)10000A Power factor1P,2P,3P,4P,0.45~0.502P,3P,4P,0.20~0.25Electrical lifetime≥ 20......
Send Inquiry
Product Description
Prodouct Specification:
Item Number | DZ47-100H |
Number of poles | 1P,2P,3P,4P |
Rated Current(In) | 32,40,50,63,80,100A |
Rated Voltage(Un) | AC 230/400V |
Rated frequency | 50/60Hz |
Curve | C,D |
Short-circuit breaking capacity (Icn) | 10000A |
Power factor | 1P,2P,3P,4P,0.45~0.50 |
Electrical lifetime | ≥ 20000 |
Terminal protection | IP20 |
