China AC Earth Leakage Circuit Breaker Device Single Phase C Curve 20AMP ELCB/RCCB/RCD/MCB Price

Product Description

Overview
AC Earth Leakage Circuit Breaker Device Single Phase C Curve 20AMP ELCB/RCCB/RCD/MCB Price

Quick Details
Place of Origin: Zhejiang, China
Brand Name: Suntree
Model Number: SCB8LE-63
Type: Earth Leakage, Earth Leakage Circuit Breaker
Poles Number: 1P 2P 3P 4P
Rated Current: 1-63amp
Pole number: 1P-4P
Rated Voltage: 230V/400V/415V
LeakAge Action Current (mA): 30/100mA

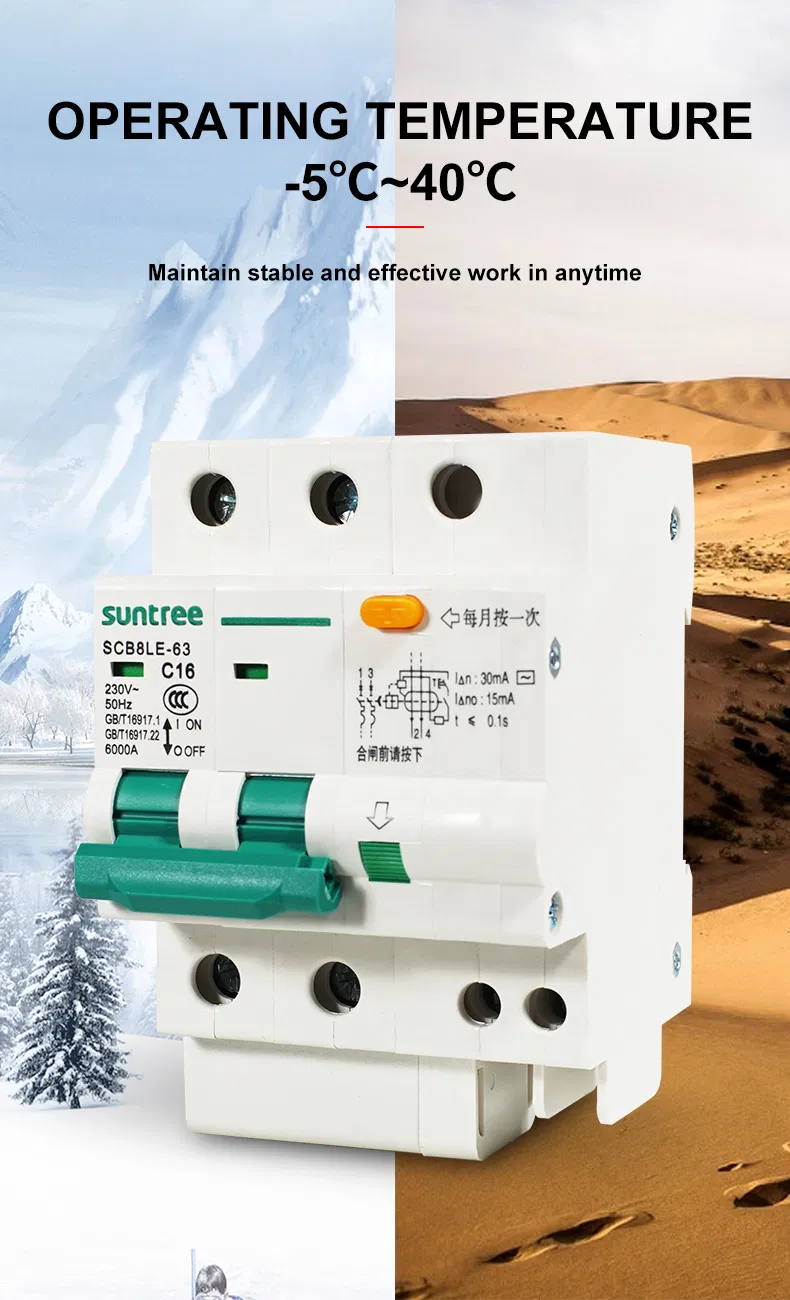

Ambient Temperature: -0ºC~40ºC
Application type: C Type
Standards: IEC61009-1
Certificates: SAA,CE,CCC
Guarantee Period: 2 Years

Supply Ability

Supply Ability: 6600 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: standard carton packing
Port: Ningbo or Shanghai
Lead Time :

Quantity(Pieces)	1 - 50	>50
Est. Time(days)	15	To be negotiated

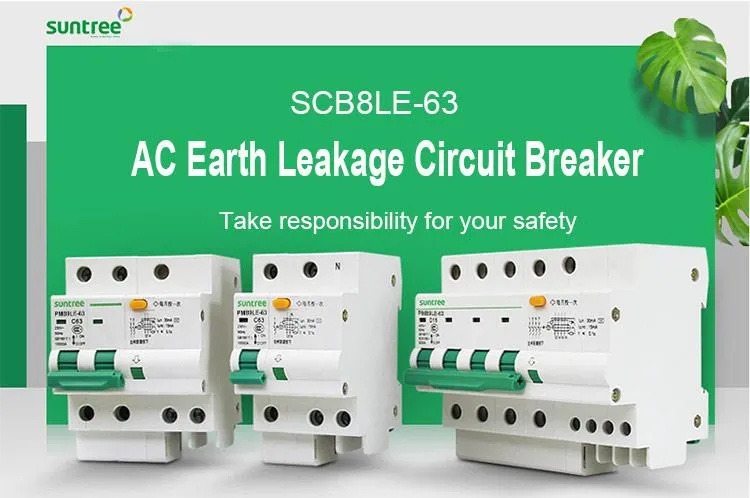

SCB8LE earth leakage circuit breaker is used for the protection,against electrical leakage in the circuit of 50/60HZ, rated voltage single-phase 230V,3 phase 415V,rated current up to 63A when somebody gets an electric shock or the residual current of the circuit exceeds the fixed value,the RCD can cut off the power within the time of 0.1s automatically protecting the equipment from the fault resulted by the residual current. With this fuction, The RCD can protect the circuit against overloads ans short circuit or can be used for the unfrequented switch over of the circuit the under normal conditions, It confirms to IEC60898 & IEC61009.1.

Product Parameters

Type	SCB8LE-63
Pole	1P/2P/3P/4P
Rated Current	1,2,3,4,6,10,16,20,25,32,40,50,63A
Rated Voltage	230V/400V/415V AC
Rated Residual operating current	10mA 30mA 100mA 300mA

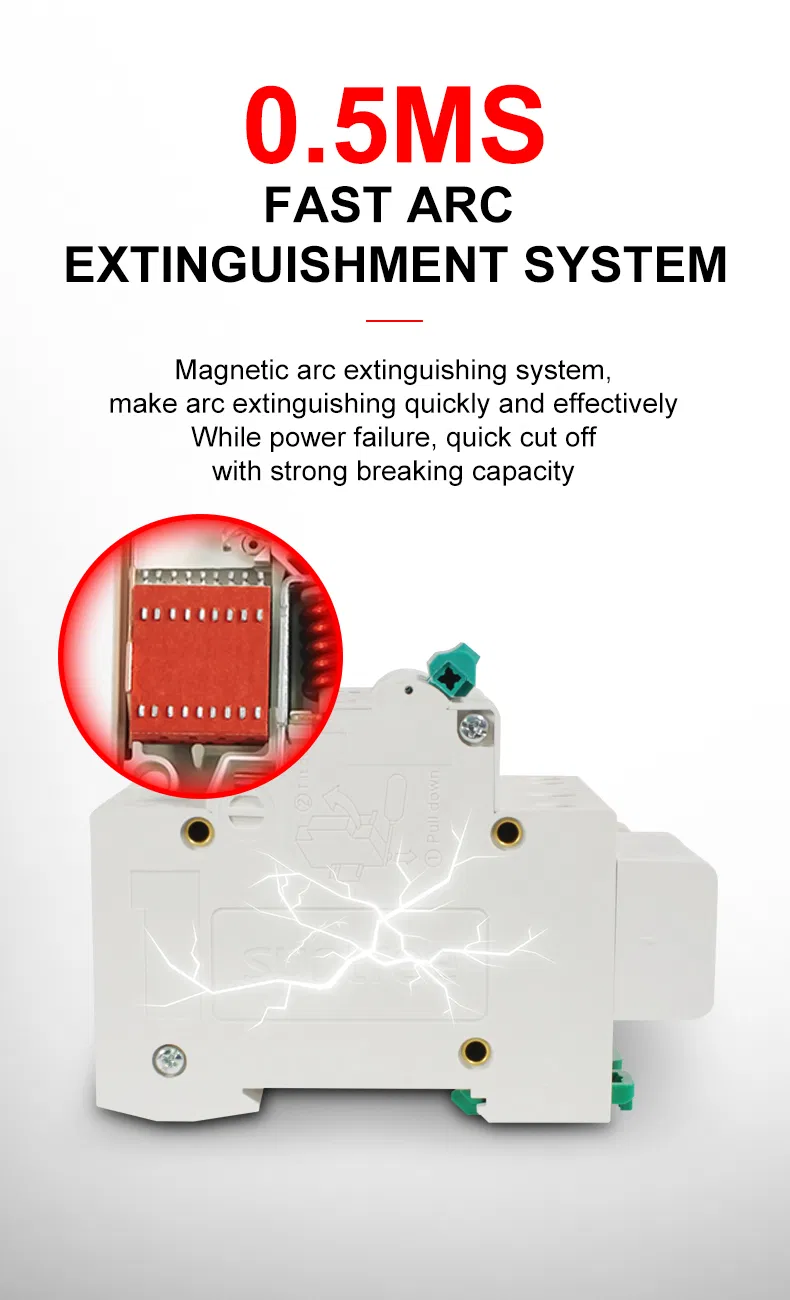

Breaking capacity	4.5ka/6ka
Rated Current off-time	≤0.1s
Electrical Life	4000Times
Mechanical	20000Times
Certificates	IEC,TUV,CE,GB
Standard	IEC60898;IEC61009.1

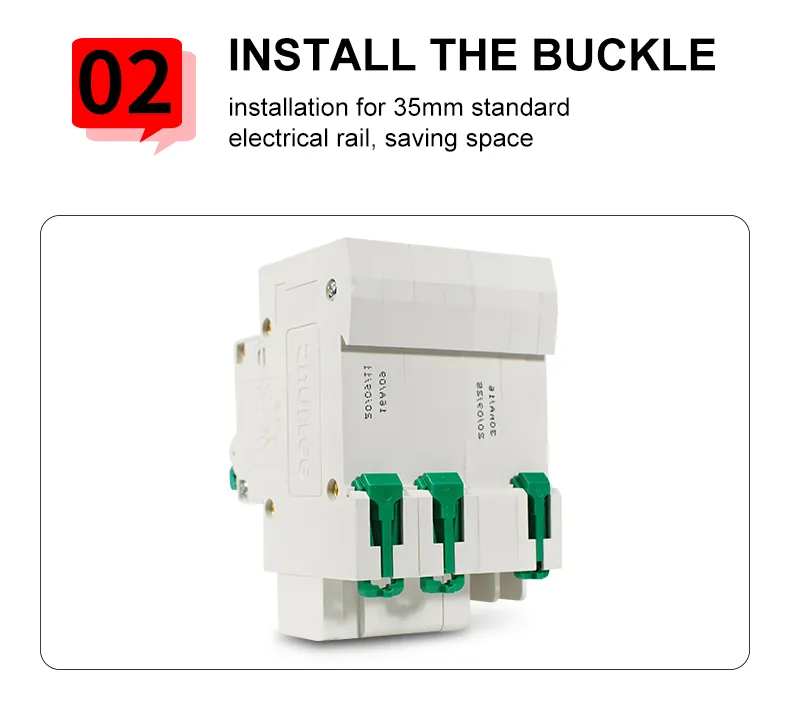

Installation	On symmetrical DIN rail 35mm / Panel mounting

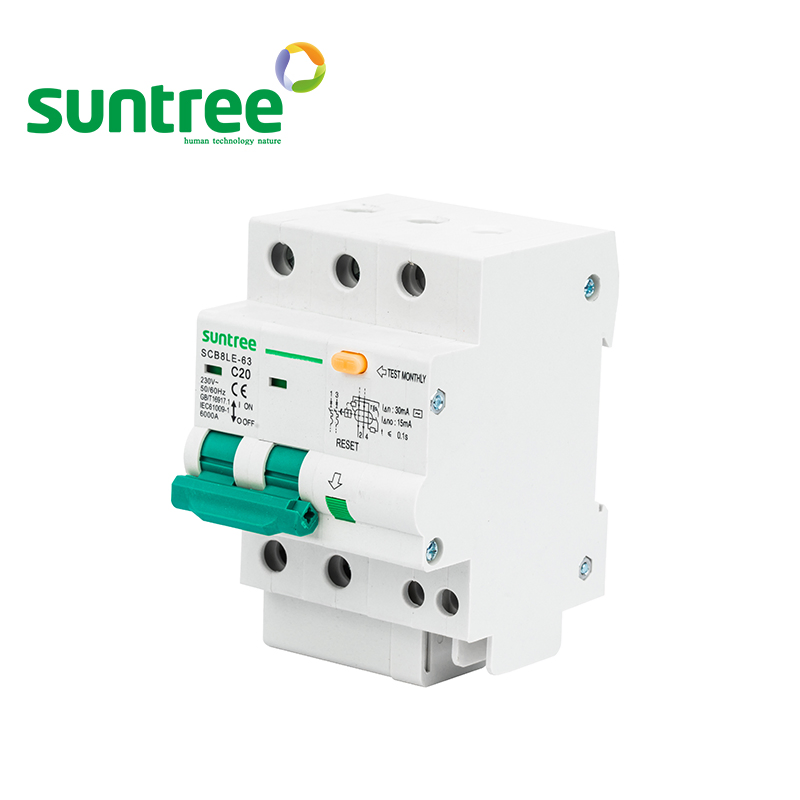

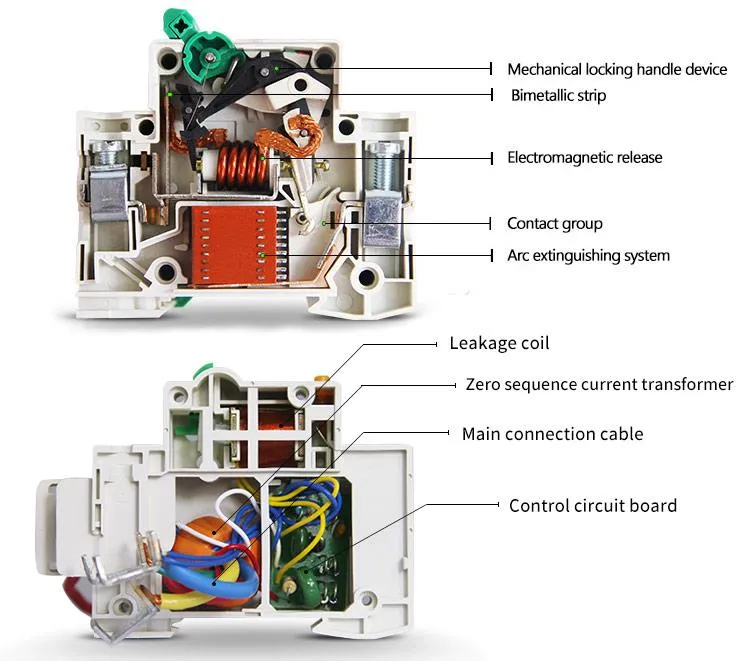

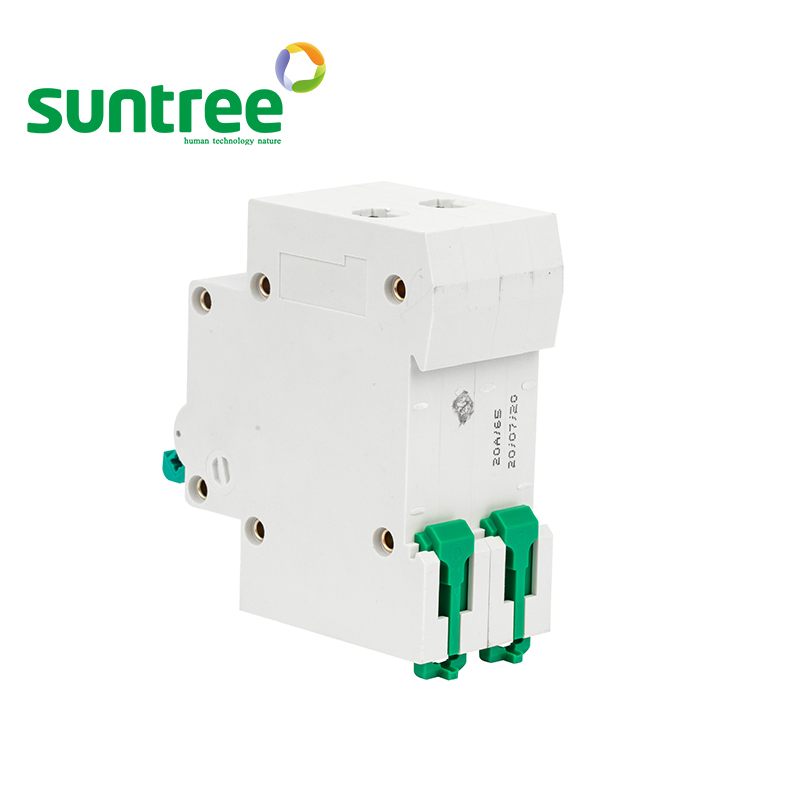

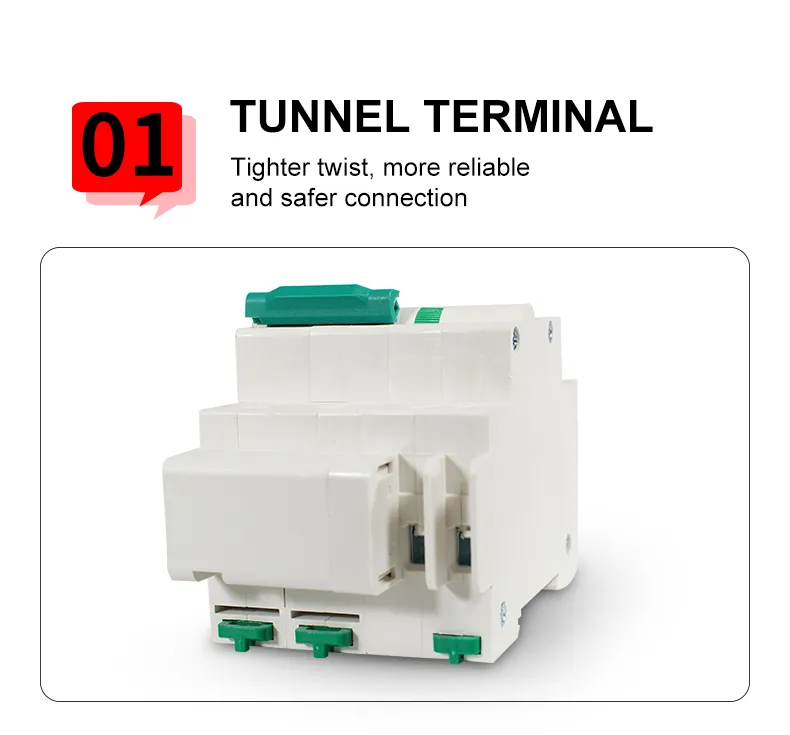

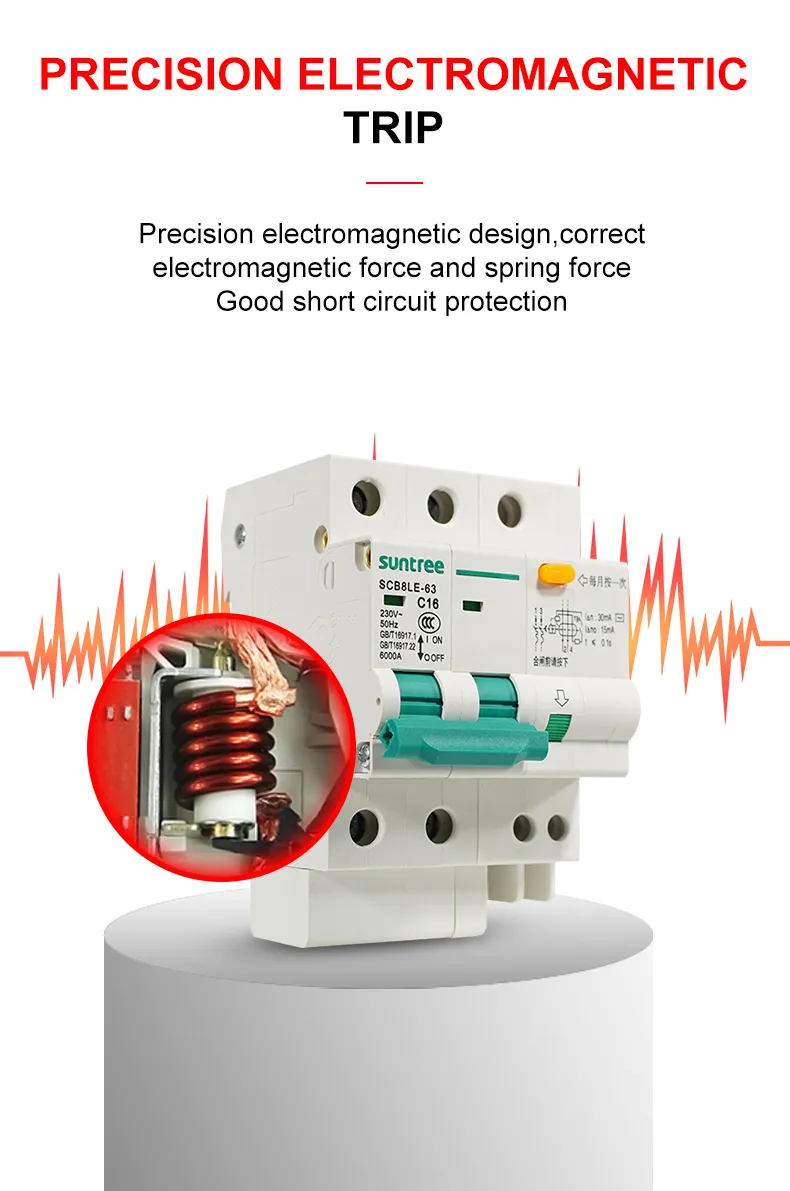

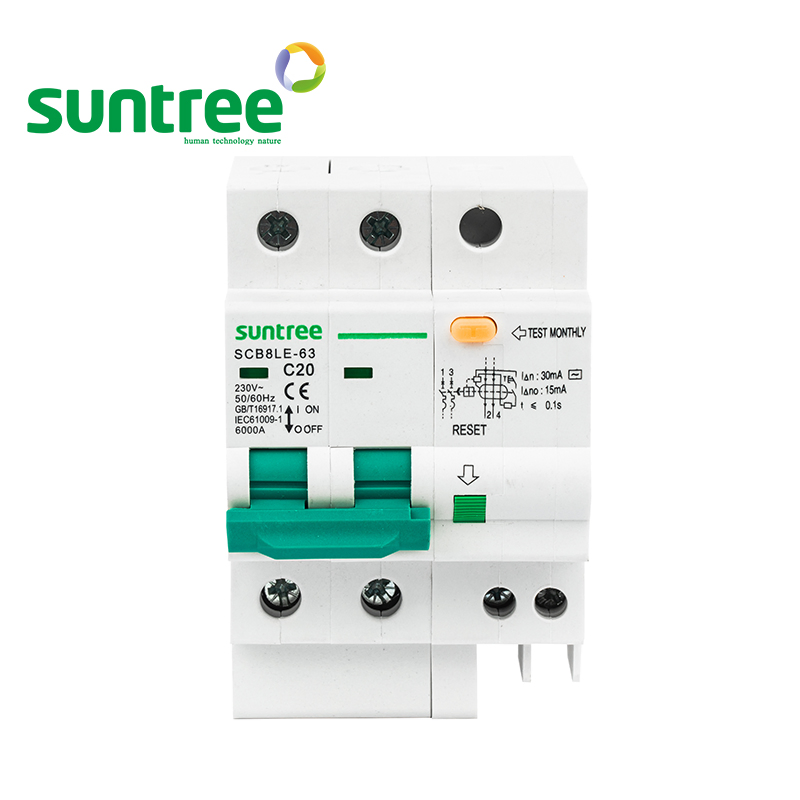

Product Details Show

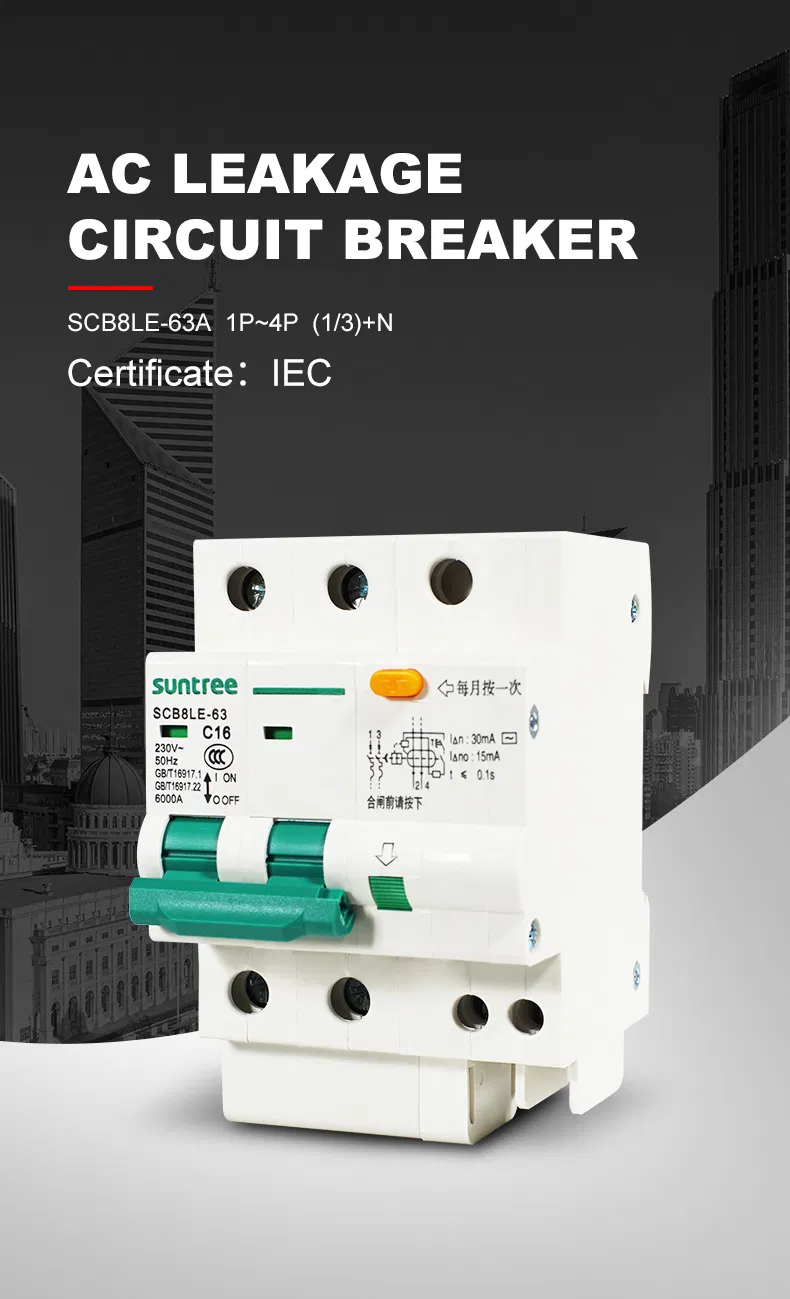

AC Earth Leakage Circuit Breaker Device Single Phase C Curve 20AMP ELCB/RCCB/RCD/MCB Price

FAQ

Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.

Q:What's the difference between you and other suppliers?

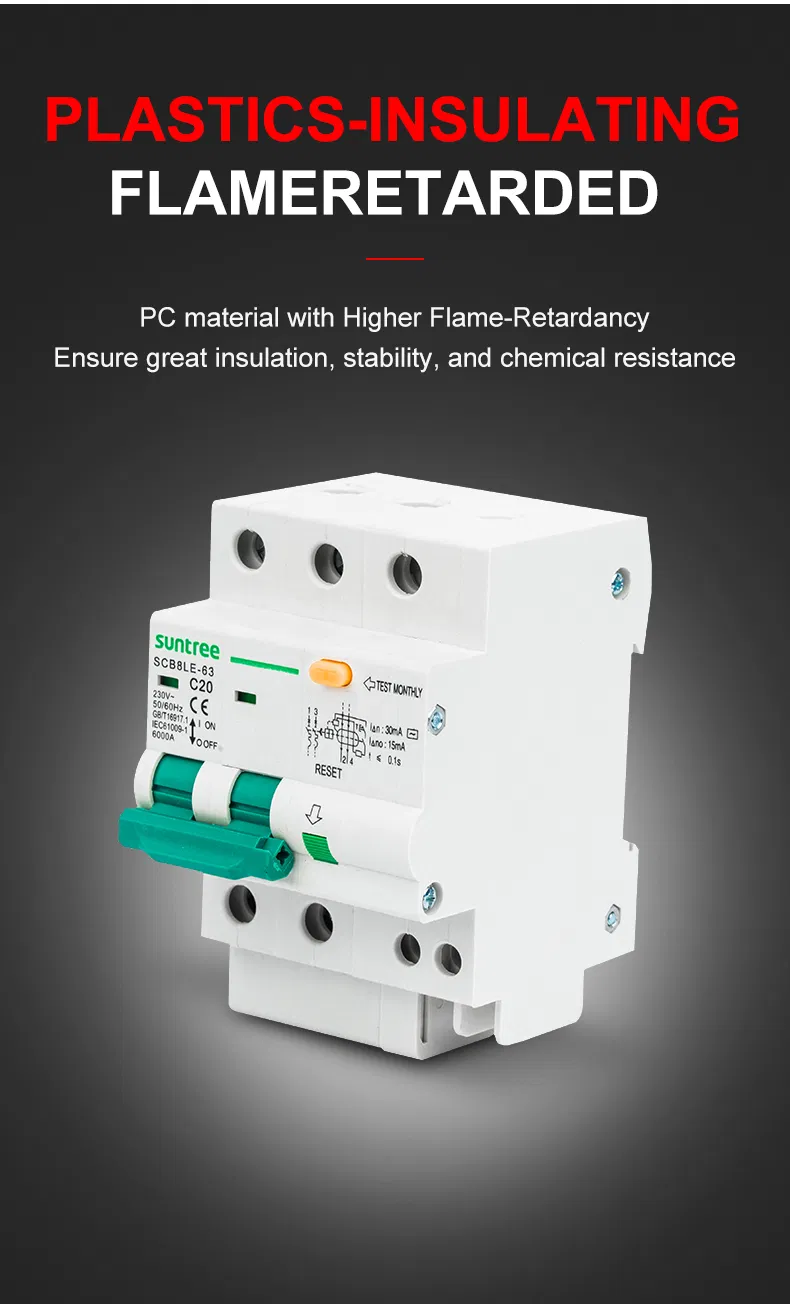

A: We have our own design box with PC/ABS material.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:Can I get a sample for test before place order?
A:Of course!

Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
